GE-2200 Radio Remote Control System
Key features
■ Remote communications ■ Full range of remote line ■ Enhanced data interfaces ■ Supporting Glocom radios
The GE-2200 Radio Remote Control System provides full remote control capability for the Glocom radios using field wire, fiber (external media converter required) and Ethernet capabilities for extended ranges.
All of the radio functions controlled by the radio itself can also be controlled by the GE-2200, including Automatic Link Establishment, frequency hopping and modem selections. The system supports a full range of data interfaces and maintains Engineering Order Wire intercom capabilities between remote and local operators.
Included in the system are two control units, Local Control Unit (LCU) and Remote Control Unit (RCU).
To meet your specific mission requirements, the GE-2200 can be fully interoperable with all the tactical radios which Glocom has brought out.
Glocom assures that the GE-2200 will be integrated to the Next-Gen radios to satisfy his users’ unique demands.
Voice Communication
The GE-2200 is capable of maintaining voice communication features of the Radio at remote location. RCU and the Radio have same audio interfaces so that audio devices and systems like headphone, handset, external speaker, etc. are used in same way once the connection is established between them.
Data Communication
The GE-2200 is capable of maintaining data communication of the radio at remote location. RCU and Radio have the enhanced data interfaces so that ethernet and Bluetooth enabled devices as well as legacy RS-232 devices are used once the connection is established between them.
Remote Radio Control
The GE-2200 is capable of controlling connected radio for remote operation. RCU and radio has same display and keypad. Once the connection is established between them, it is possible to display radio screen on RCU without any change. Furthermore, all keypad actions occurred in RCU are transmitted to the radio and display is updated in response. So, operator is supposed to use RCU just like using the radio itself.
Applications
YOUR ULTIMATE DEFENSE IN ADVERSARIAL ENVIRONMENTS
The GE-2200 is ideal for covert and border operations when troops are under threat of attack. The Remote Control System allows warfighters to receive and transmit data and voice at up to 5 km—preventing adversaries from pinpointing locations of edge-warrior transmissions.
IN-VEHICLE REMOTE CONTROL SYSTEM
The GE-2200 provides flexibility to locate the vehicular radio anywhere inside vehicle which might be unreachable by operators. It supports remote control of the radio, remote voice & data communications by using two-wire cable connection between radio and remote unit.
Technical Specifications
REMOTE CONTROL UNIT GE-2200-RC
The Remote Control Unit delivers the remote user interface.
| Distance To LCU | field wire: ≤2km fiber: tens of kilometers |
| Distance to Radio (Direct Control) | RS-232: ≤15m RS-422: ≤500m Ethernet: ≤100m |
| Remote line | Direct Control: RS-232, RS-422, fiber, Ethernet Linking with LCU: field wire, fiber |
| Data Interface | RS-232, RS-422, Ethernet, Bluetooth |
| Power Supply | 10 ~ 33 VDC |
| Power Protection | Over-voltage, Polarity |
| Current Consumption | ≤0.4A@24V |
| Weight | 2.6kg (4kg with Battery) |
| Dimension | W195mm x H92mm x D370mm |
| Operating Temperature | -30 ~ +50° C |
| Storage Temperature | -40 ~ +80° C |
| Immersion | 1m |
| Shock & Vibration | MIL-STD-810G |
LOCAL CONTROL UNIT GE-2200-LC
The Local Control Unit is the foundation of the GE-2200.
| Radio interface | RS-232, RS-422 |
| Distance to Radio | ≤5m |
| Distance To RCU | field wire: ≤2km fiber: tens of kilometers |
| Remote line | field wire, fiber, Ethernet |
| Power Supply | 10 ~ 33 VDC |
| Power Protection | Over-voltage, Polarity |
| Current Consumption | ≤0.4A@24V |
| Weight | 2.4kg (3.8kg with Battery) |
| Dimension | W195mm x H92mm x D370mm |
| Operating Temperature | -30 ~ +50° C |
| Storage Temperature | -40 ~ +80° C |
| Immersion | 1m |
| Shock & Vibration | MIL-STD-810G |
Standard Parts
| No | Description | Model | Unit | Qty |
|---|---|---|---|---|
| 1 | Remote Control Unit | GE-2200-RC | pc | 1 |
| 2 | Local Control Unit | GE-2200-LC | pc | 1 |
| 3 | Battery Box | A8100-BB31 | pc | 2 |
| 4 | Battery Pack | BB-2590/U | pc | 4 |
| 5 | Officer Handset | A8100-OH10 | pc | 2 |
| 6 | Cable Assy, LCU to Radio (radio specific) | A2200-CA-LRC01 | pc | 2 |
| 7 | Cable Assy, LCU to RJ45 for remote line | A2200-CA-LRR01 | pc | 1 |
| 8 | Cable Assy, RCU to RJ45 for data | A2200-CA-RPD01 | pc | 1 |
| 9 | Cable Assy, RCU to RJ45 for remote line | A2200-CA-RLR01 | pc | 1 |
| 10 | Cable Assy, RCU to RS-232C for data | A2200-CA-RPD02 | pc | 1 |
| 11 | Cable Assy, RCU to RS-422 for data (opt) | A2200-CA-RPD03 | pc | 1 |
| 12 | Cable Assy, RCU to Radio (opt, radio specific) | A2200-CA-RRC01 | pc | 1 |
| 13 | Ground Stake kit (opt) | A8100-GK25 | pc | 2 |
| 14 | Keypad Display Unit (opt) | A2200-KDU | pc | 1 |
| 15 | User Manual | A2200-UM10 | cp | 1 |

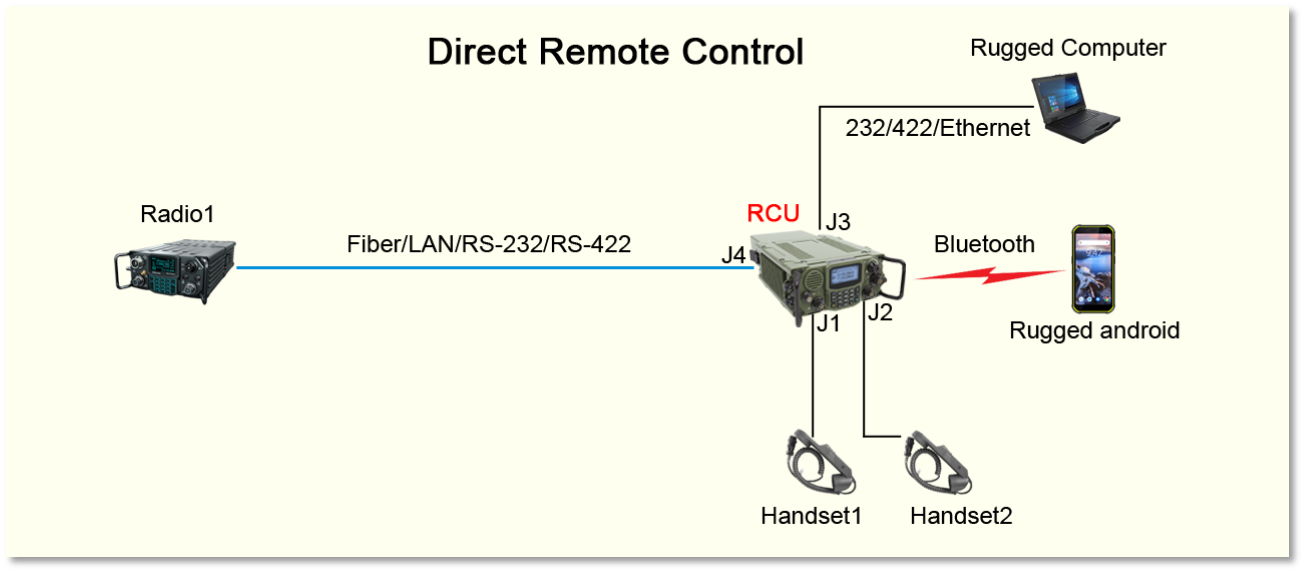

Configuration of the GE-2200
