GA-611-01 UHF whip antenna
This UHF whip antenna is typically used with the GR-611 SPR. This antenna has wideband frequency range. 350~450MHz, Gain:≥-1dBi, VSWR: ≤1.5:1 Typical, Impedance:50Ω, Female SMA, 3W, Length: ≤21cm

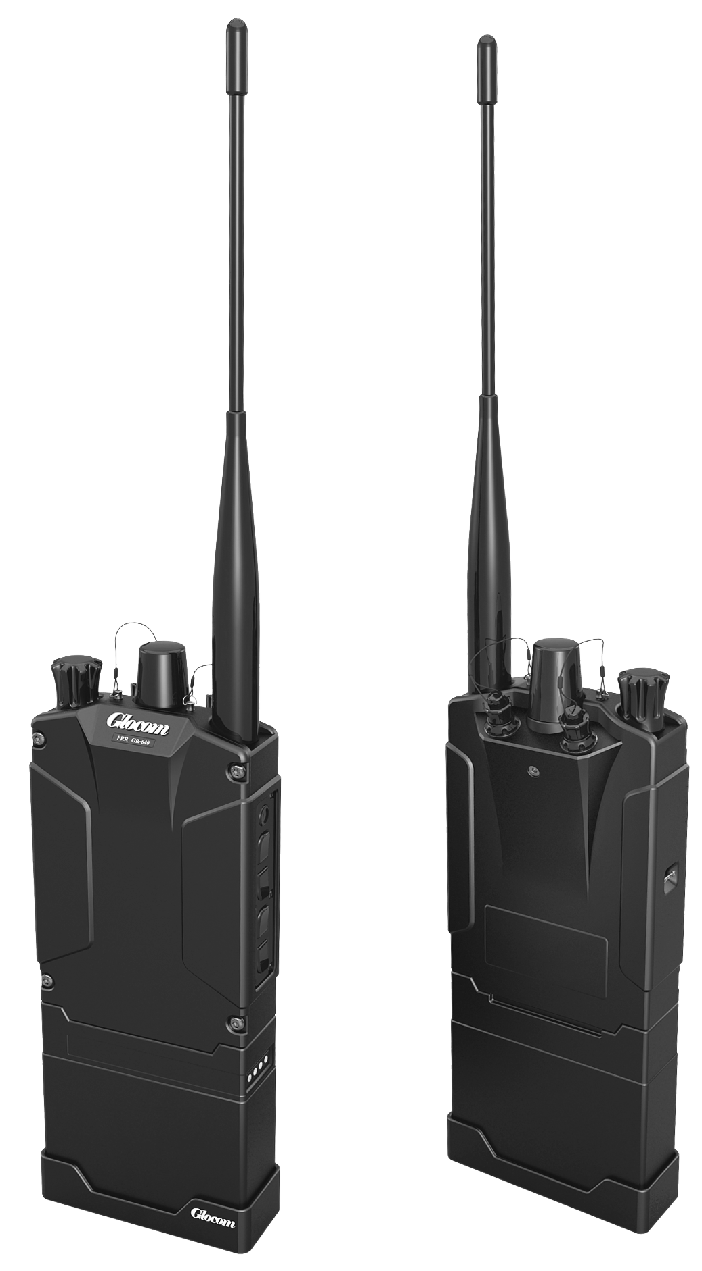

GR-611 Secure Personal Radio
Full-Duplex, Soldier, Team Radio
[Key Features]
■Frequency range 350~450MHz ■Completely automatic & handsfree operation (VOX) ■Full-duplex up to 6 users, unlimited listeners ■256 channels - every team gets its own channel ■Embedded GPS - C4I compatible, search & rescue, navigation ■256-bits AES digital secure - secure voice & data ■RF Power 2W - short & mid range communication ■USB digital data interface - Android & Window CE terminal compatible ■Built-in wireless fill-gun (OTAR) - secure key distribution ■Compact & light weight design

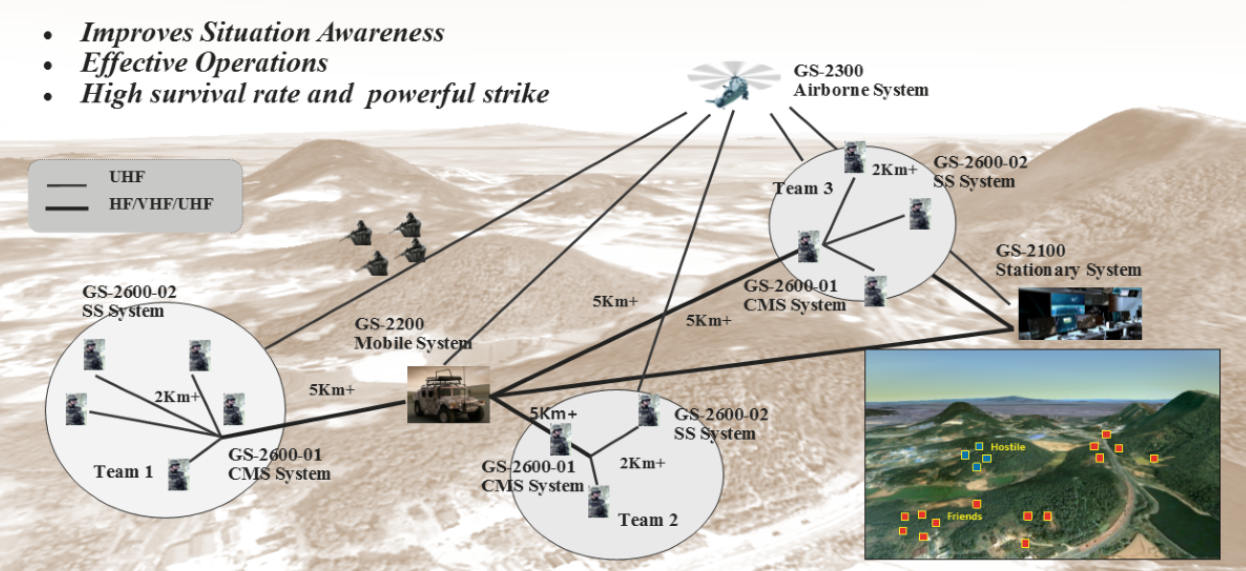

The communication and situation awareness platform for the modernized soldier. The GR-611 SPR is designed specially to meet the unique demands of providing secure and reliable voice, data and situation awareness communication at soldier level. Optimized for maximum performance across the highly variable environments soldiers operate in, and enabling range extending networks, the GR-611 SPR provides continuous coverage in the 350 to 450MHz frequency range and ensures reliable connectivity between squad members and with command level intelligence. The GR-611 SPR has already been adopted as the standardized personal radio platform for multiple soldier modernization programs in local and some countries. The GR-611 SPR provides secure, digitized voice and data communications to soldiers without distracting their attention from the task at hand.
[Applications]
■Front line soldiers ■Special forces ■Warships/Airborne landing control ■VIP protection ■Guards ■Police
The radio’s small and light weight, and it powered by lithium-ion battery. A unique team-based waveform and digital wireless network allows reliable communications in situation where traditional backbone is not available or is out of range. The radio provides full-duplex, multi-group voice conferencing service, so it allows several simultaneous talkers on the net with an unlimited number of listeners - resulting in a more natural, dynamic operation environment, free from the constraints of traditional radio systems. The radio is data-enabled and incorporates a built-in GPS receiver, allowing easy-to-use situation awareness, position tracking and messaging services. A USB data interface allows connection of Android computing devices for enhanced data applications. All transmissions are secured by built-in 256-bit AES encryption algorithm. The SPR - reliable and secure connectivity for every soldier, assured by Glocom.
General Specifications
| Frequency range | 350 ~ 450MHz |
| Band width | 25KHz, 800KHz |
| Preset channels | 16 programmable presets with flexible groups |
| Modulation | FSK, GMSK |
| Position reporting | Automatic reporting by built-in GPS |
| Operation mode | Full-duplex up to 6 simultaneous talkers Unlimited listeners Priority break-in Selectable VOX or PTT activation Simultaneous data & voice |
| Range | Open terrain: 2-3Km (10Km @ LOS) Urban: Up to 1000m Jungle: 800m |
| Voice encoding | ADPCM 16kbps |
| Frequency stability | ± 2ppm |
| RF Power | 2W, adjustable to 0.5W, 2W |
| Antenna | Whip antenna |
| RF interface | SMA, 50ohm nominal unbalanced |
| Encryption | 256-bit AES |
| Data rate | 4.8kbps, 9.6kbps, 19.2kbps, 38.4kbps, 57.6kbps, 115.2kbps, 256kbps |
| Data interface | USB 2.0 multi-function (data, configuration/control) |
| Programming | Wireless fill-gun (OTAR), USB (Channel frequency and encryption code) |
| Battery | Rechargeable Li-Ion 3.7VDC |
| Current | 2.5A@Tx, 200mA@Rx |
| Battery duration | 24hours @ Tx(1):Rx(1):Stby(10) |
| Color | Black/Khaki |
| Dimension | 178mm x 78mm x 27mm with battery |
| Weight | ≤500g |
| Alerts | Audible status, language programmable |
| Software (Firmware) | Software-defined, Upgradable via USB port |
| Shock/Vibration | MIL-STD-810E |
| Operating Temp. | -30° C ~ +60° C |
| Storage Temp. | -45° C ~ +70° C |
| Humidity | 95% |
| Immersion | 30 minutes @ 2m |
| MTBF | 5000 hours |
GS-2500-01/02 Available Option

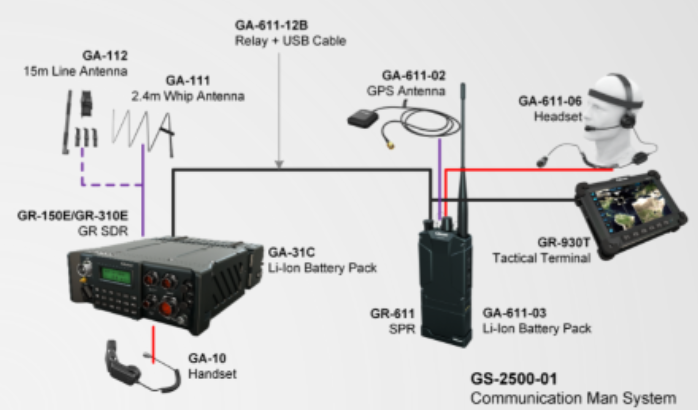

GS-2500-01 Communication Man Set (CMS)
The Glocom GS-2500-01 Communication Man Set will provide dismounted soldiers with the tactical information exchange and situation awareness sharing with command & control unit, and among each other in real-time on battlefield. The standard set comprises:-

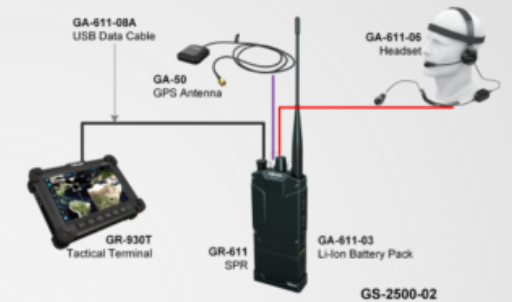

GS-2500-02 Modern Soldier Set (MSS)
The Glocom GS-2500-02 Modern Soldier Set will provide dismounted soldiers with the tactical information exchange and situation awareness sharing with command & control unit, and among each other in real-time on battlefield. The standard set comprises:-
This UHF whip antenna is typically used with the GR-611 SPR. This antenna has wideband frequency range. 350~450MHz, Gain:≥-1dBi, VSWR: ≤1.5:1 Typical, Impedance:50Ω, Female SMA, 3W, Length: ≤21cm
A removable passive antenna designed for use with the GR-611. Center Frequency: 1575.42± 1.023MHz, Bandwidth: 10MHz min, Gain at Zenith: 5.0dBic typ, Gain at 10° elevation: -1.0dBic min, Polarization: R.H.C.P, Axial Ratio: 1.0dB typ.
This rechargeable, high-capacity Li-Ion battery is typically used with the GR-611 SPR. Voltage: 3.3V~4.2V(3.7V Nominal), Capacity: 5000mAh, Max. load current: 1A, Charging time: Max. 360 minutes, Protection by enclosure Waterproof.
This single battery charger is compatible with the GA-611-03 Li-Ion battery. Charging time: 6 hours. Input:100~240VAC/0.45A, 50~60Hz, Socket: USB, 103 x 46 x 39(mm)
This single battery charger is compatible with the GA-611-03 Li-Ion battery. Charging time: 6 hours. Input:100~240VAC/0.45A, 50~60Hz, Socket: USB, 103 x 46 x 39(mm)
It is the head-mount, single left earphone, designed for extended wear in active environments. Its ultra lightweight frame offers superior comfort and fit.
Light headset with single PTT is the headmount, single left earphone. Its ultra lightweight frame offers superior comfort and fit.
Speaker: 8Ohm/85dB/mW@1kHz, Microphone: 2200Ohm, -45dB, 200~4kHz, Color: Black, Cable length: 57cm, Built-in Clip

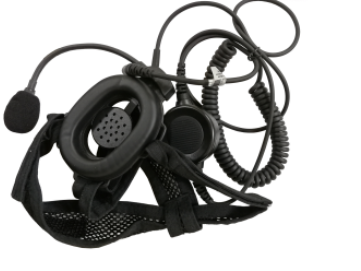

GA-611-06 dual PTT headset is the headmount, single left earphone, designed for extended wear in active environments.
This cable connects the GR-611 data interface to a standard USB connector. The cable features a USB Type A connector (as found on most PC hosts). The cable supports both configuration of the radio and data operation.
This cable connects the GR-611 data interface to a standard USB Micro-B. The cable supports both configuration of the radio and data operation.
This cable connects the GR-611 data interface to a RS-232C Interface. The cable supports both configuration of the radio and data operation. The cable length is 1m.

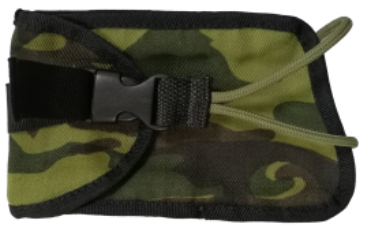

The lightweight carry pouch is made of durable Cordura fabric and incorporates Molle straps for attachment to a variety of load-bearing vests and other gear. The radio is held securely in the holster to prevent accidental loss.
This is field reference user manual for GR-611 SPR.
This kit contains the items necessary to program the GR-611 radio. Included in the kit is the radio programming software and the SPR Utility software for Android. Also included, instruction manual.
This cable is a relay cable between GR-611 SPR and other Glocom radios like GR- 150/250/310. (Opt)
