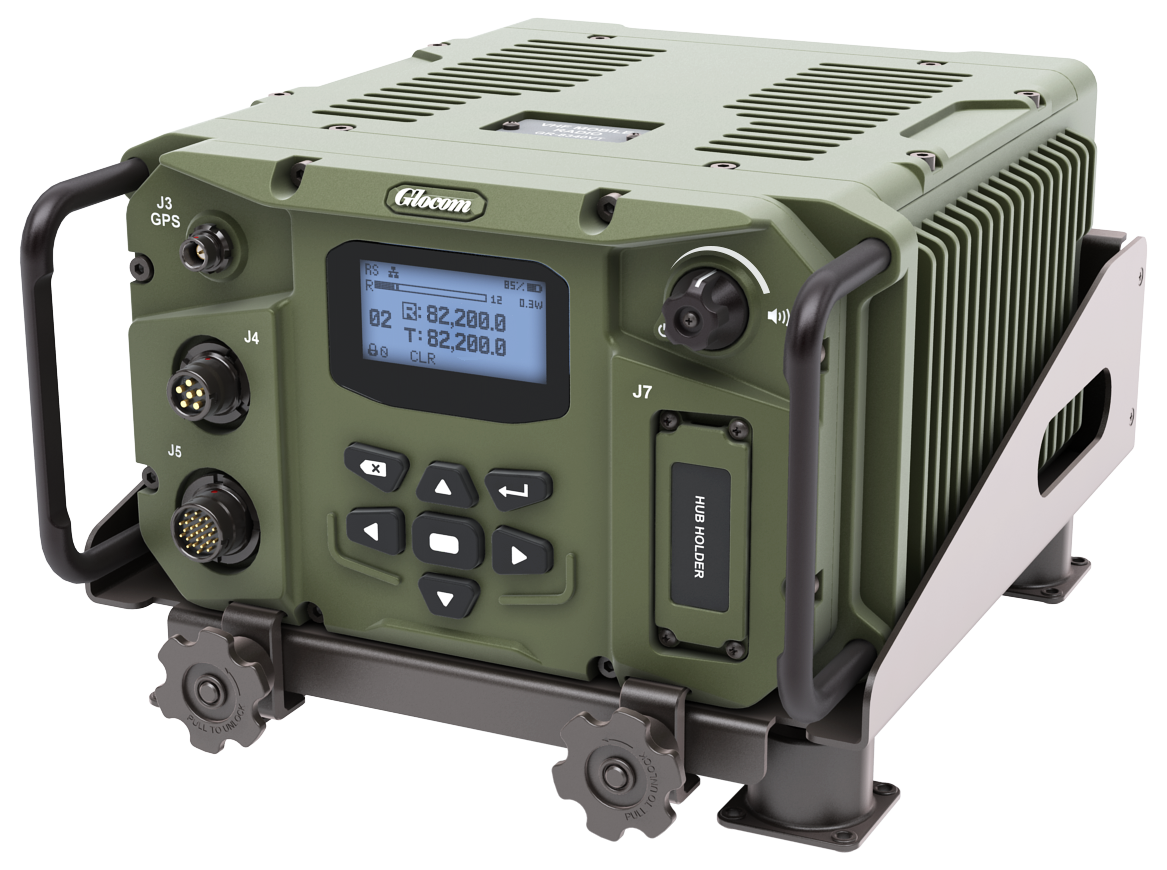

GR-8340VT VHF Mobile Radio
GR-8340VT

Providing upgrades for the full range of vehicle Platforms with C2 capabilities.

The Glocom’s GR-8340VT VHF mobile radio is a powerful vehicular SDR, designed specifically to support battle tanks and armored combat vehicles. The radio provides vehicle platforms with full command and control (C2) capabilities maximizing their potential in operation. The GR-8340VT operates in VHF band from 20MHz to 88MHz and features software defined radio architecture. This future-proof 50W vehicular SDR offers seamless communications and situational awareness, while utilizing unprecedented immunity (ECCM) and communication security (COMSEC) for a multitude of missions and applications. The radio supports narrowband tactical waveform so as to operate well in harsh spectrum conditions. With its Glocom’s GR-250/310/8600M/8200MA interoperability, it easily integrates into existing networks to deliver secure voice and data and enables joint operation with other forces. The radio can be fully integrated with GE-2100 VIC system, making a complete set of vehicular communications system. The Glocom’s GR-8340VT VHF mobile radio is a true force multiplier, providing a decisive advantage on the battlefield.

Features

  • Powerful 50W SDR platform
  • Covering frequency band from 20MHz to 88MHz
  • EPM capability by FH and digital encryption
  • Embedded GPS supporting continuous high resolution Blue Force Tracking capabilities
  • Ruggedized design for harsh combat conditions
  • Reliable and durable, simplified maintenance
  • Supports a multitude of interfaces required in a modern combat system solution
  • Fully integrated with GE-2100 VIC system

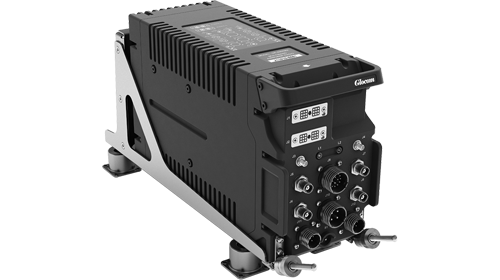

  • Interoperable with GR-250/GR-310/GR-8600M/GR-8200MA
  • Easy operation with simple keypad

Technical specifications

General

Frequency Band20MHz~88MHz
Channel Bandwidth25kHz
Frequency Stability±1ppm
Net Presets100
ModulationFM, FSK
Frequency Hopping100hps
EncryptionAES256 or customized
GPSBuilt-in GPS receiver
Dimension137 (H) x 240 (W) x 260 (D) mm
Weight7kg

Transmitter

RF PowerUp to 50W
Harmonics Suppression-40dBc or better
Spurious Suppression-50dBc or better

Receiver

Sensitivity -113dBm @ 12dB SINAD
Adjacent Channel Rejection≥40dB
Image & IF Rejection≥80dB

Power

Power Supply 20 ~ 34 VDC
Power ProtectionOver-voltage, Polarity
Power ConsumptionMax. 300W

Environmental

Operating Temperature -30 ~ +60 ℃
Immersion1m
Shock & VibrationMIL-STD-810G

Interfaces

Data27-pin, Ethernet/RS-232/RS-422
AudioStandard 6-pin
Antenna PortBNC

GR-8340VT

VHF Mobile Radio

The Glocom GR-8340VT VHF Mobile Radio set includes the following items:

  • VHF Mobile radio
    GR-8340VT
  • VHF Vehicle Antenna with cable
    GA-212A
  • GPS Vehicle Antenna
    A8340VT-GA01
  • Vehicle Headset
    A8340VT-VH10
  • Data Cable
    A8340VT-DC01
  • Power Cable
    A8340VT-PC01
  • User Manual
    A8340VT-UM01

Options

  • Officer Handset
    A8340VT-OH10
  • Mobile GPS Antenna
    GA-50A
  • AC220V-DC28V 300W PSU
    A8340VT-PS300
  • Installation Kit
    A8340VT-IK01
  • Rugged PC 10~15”
    Windows 7/8/10
  • Rugged Tablet 5.5”
    Windows
  • Setup & Control Application
    A8340VT-WIN10

Additional Software Options

  • BMS Application for crew
    GS-930VH
  • BMS Application for commander
    GS-930FL
  • Tactical Chat
    GS-910

Providing upgrades for the full range of vehicle Platforms with C2 capabilities.

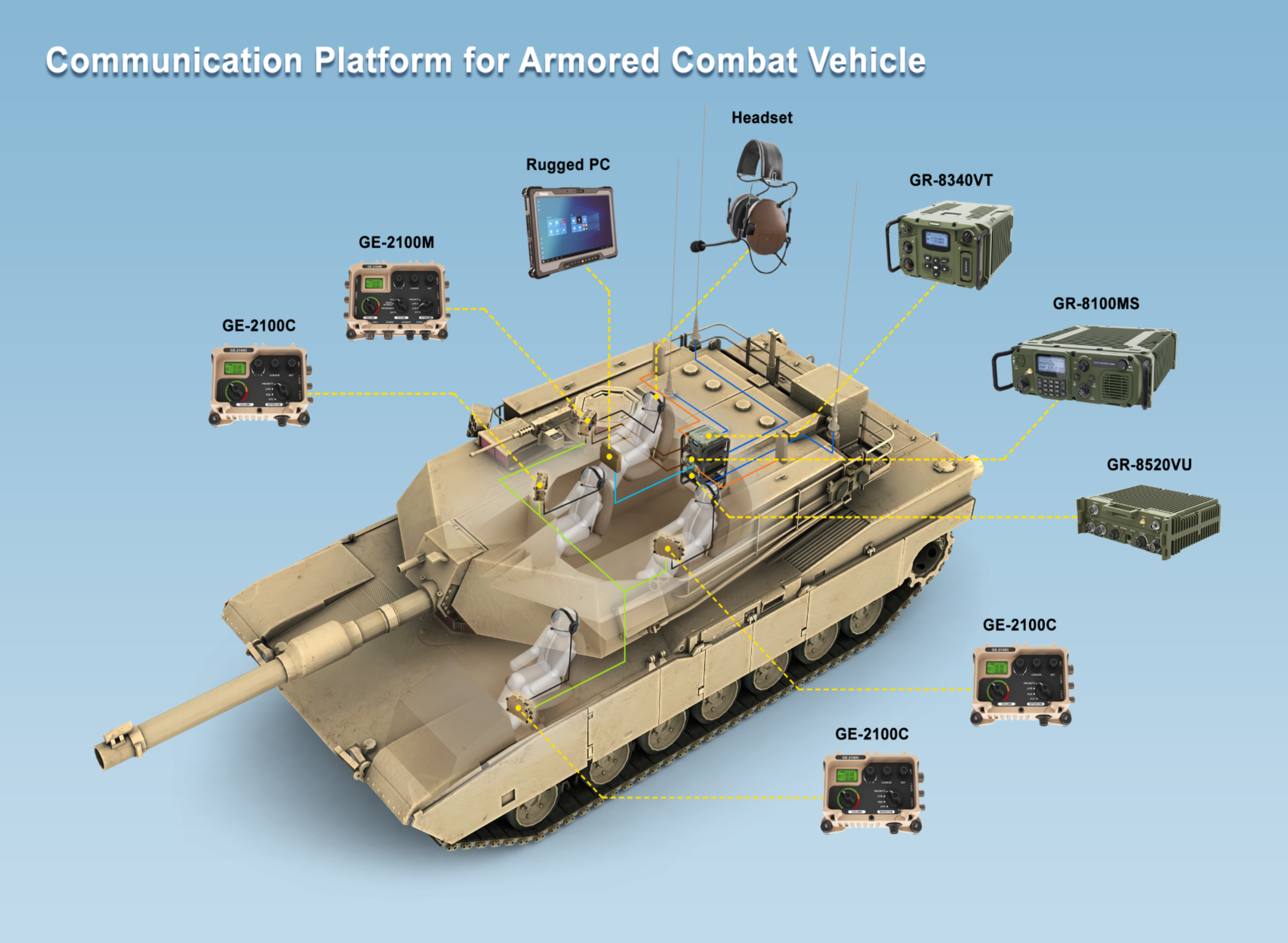

Communication Platform for Armored Combat Vehicle

Ordering Information

No DESCRIPTION MODEL BRAND UNIT QTY
1 VHF Mobile Radio GR-8340VT Glocom set 1
2 HF/VHF Mobile Radio GR-8100MS Glocom set 1
3 High Capacity Data Radio (HCDR) GR-8520VU Glocom set 1
4 Tactical Network Intercom System GE-2100 Glocom set 1
5 Rugged PC S410 Getac set 1
ga-212a

GA-212A VHF 3.8m Mobile Antenna

This is VHF vehicle borne communication antenna. The antenna section is made of fiberglass, thus the features of light weight, good flexibility, endurable for corrosion.

a8340vt-ga01

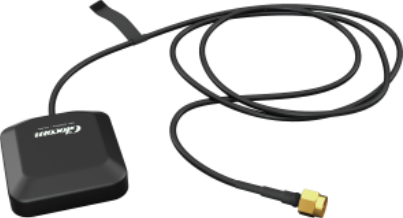

A8340VT-GA01 GPS Vehicle Antenna

This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.

a8340vt-vh10

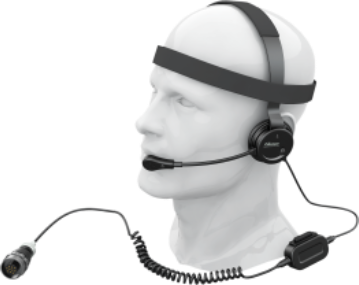

A8340VT-VH10 Vehicle Headset

The headset adopts structure of head ring soft strap, it is audio terminal. It has the features of small in dimension, light in weight, good water proof performance, high environment adaptability.

a8340vt-dc01

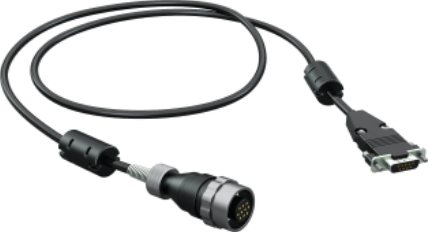

A8340VT-DC01 Data Cable

This is RS-232C data communication cable for GR series radios. It is used for data communication, radio programming and radio control by computer etc.

a8340vt-pc01

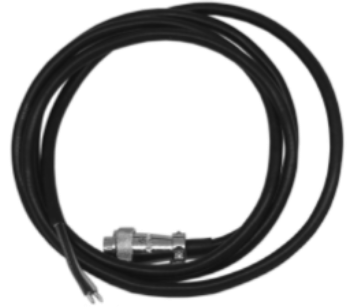

A8340VT-PC01 Power Cable

It is a power cable to supply DC27V to the radio with 4 way connector which is very strong in rough environments.

a8340vt-oh10

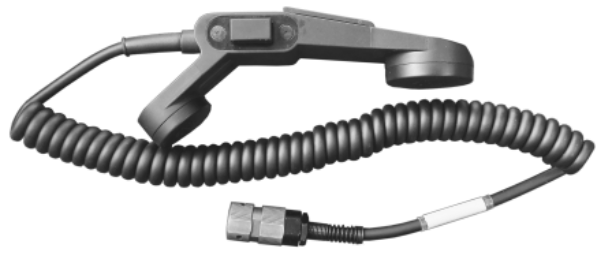

A8340VT-OH10 Officer Handset

The officer handset is a high-grade, lightweight MIL handset for use with the tactical radio systems. One handset is supplied with each radio.

ga-50a

GA-50A GPS Antenna

This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.

a8340vt-ps300

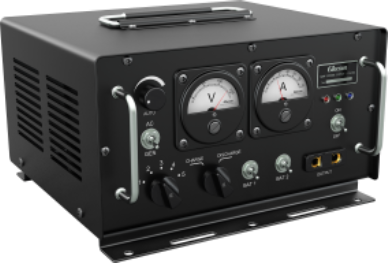

A8340VT-PS300 AC220V-DC28V 300W PSU

This is 300W AC-DC converter to supply DC 27V into GR-series mobile radio system. It supports very high efficiency, over-voltage protection, polarity protection.

a8340vt-ik01

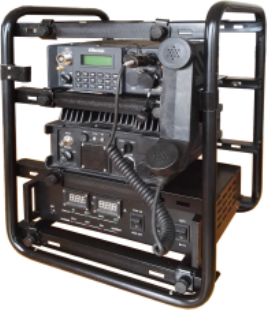

A8340VT-IK01 Installation Kit

This is a set of installation kit. It can be used to install GR series radio system into various kind of vehicles, ships or stationary. It is very simple to install or uninstall on the vehicles.

a8340vt-um01

A8340VT-UM01 User Manual

This is a field reference user manual for GR-8340VT radio system.

gc-8340vt

GC-8340VT Setup & Control Application

Windows-based setup software for GR-8340VT. This software allows user to enter frequency, mode, encryption code and other parameters into GR-8340VT radio.

rugged-pc2

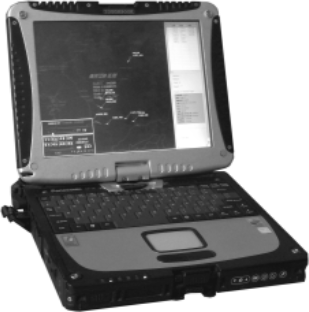

Rugged PC

The commercial Notebook PC will be used for setup, control and communication.

GR-8340VT uses in battlefield
