Key Features
■ Adaptable to any vehicle applications ■ Scalable design for all kind of ground vehicles ■ Seamless connectivity in the rugged terrain and noisy environment ■ Inexpensive solution for vehicle platform upgrade ■ Simultaneous secure voice & data
Highly Adaptive, Inexpensive Solution for Vehicle Platform Upgrade
Today’s growing worldwide defense, security and safety concerns haveclass="gs2200-text" created the need for net-centric approaches to counter emerging, non-traditional threats. Forces, systems and platforms must be woven into an interoperable and joint network in order to succeed on the modern battlefield. Glocom’s state of the art C4I solutions connect all forces on land, air, and sea – from high-echelon HQ to the individual platform, sensor and soldier – with excellent communication technology creating a force multiplier by maximizing combat resource coordination.
The GS-2200 ground vehicle system provides complete communications upgrades to vehicle platform, thus offering customers the cost-effective capabilities to deploy vehicles and the other forces on a networked basis, resulting in maximization of combat force.

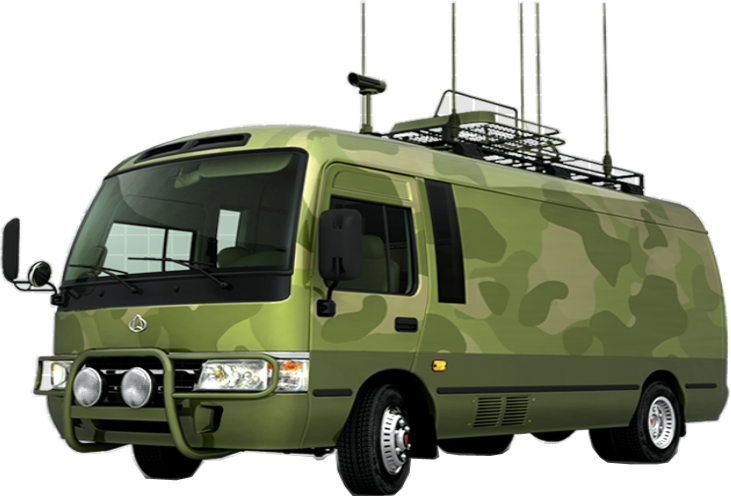

The GS-2200 ground vehicle system is designed for all kinds of ground vehicle applications in army, ranging from tactical command & patrol to main battle tank, armored personnel carrier, Logistics, defense mission, peacekeeping, ambulance, reconnaissance and more.
Benefits
Incorporated full C4I capabilities into existing infrastructure. The upgrades enable rapid and accurate execution of the mission together with full C4I capabilities.

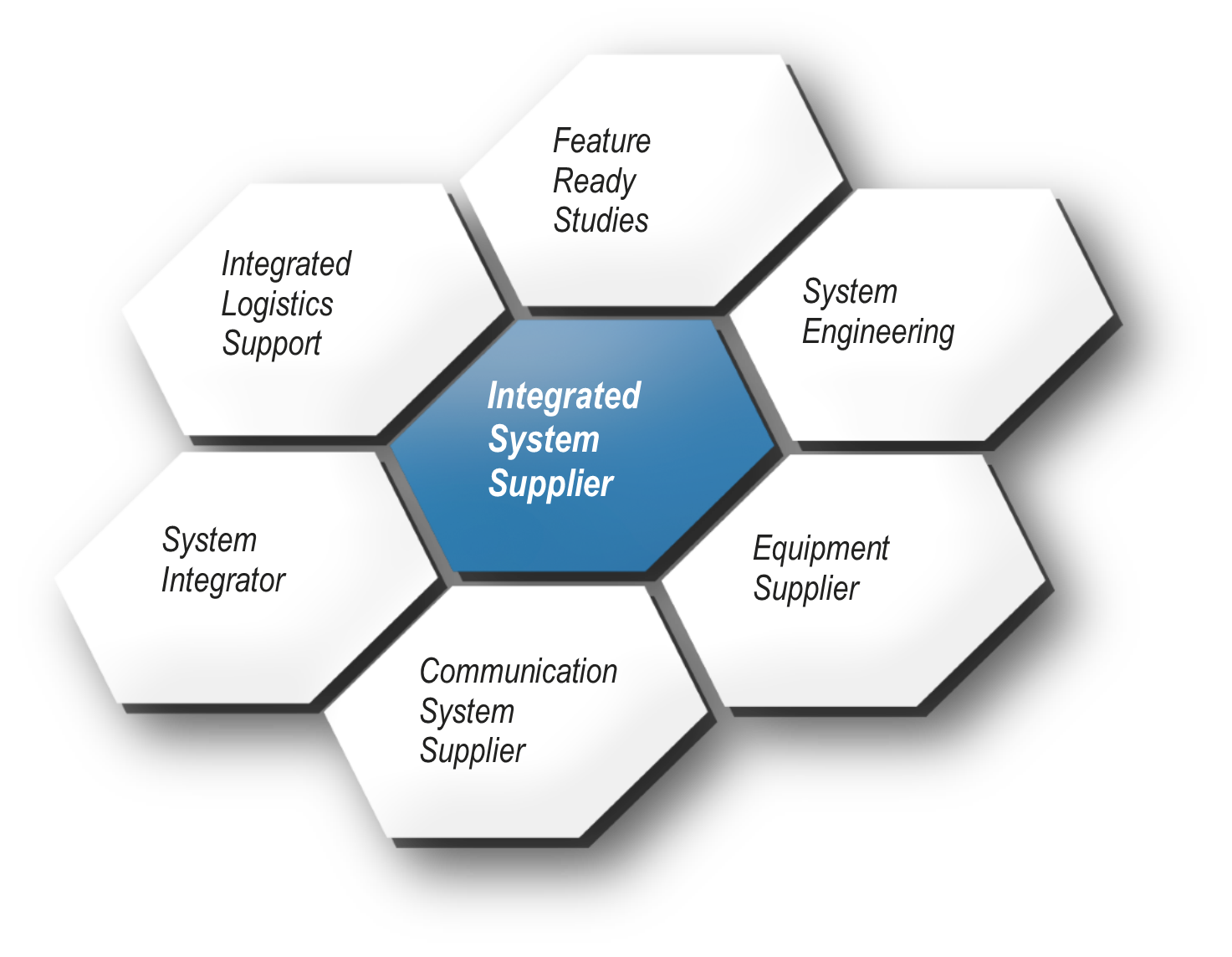

Integrated system of various communication solutions

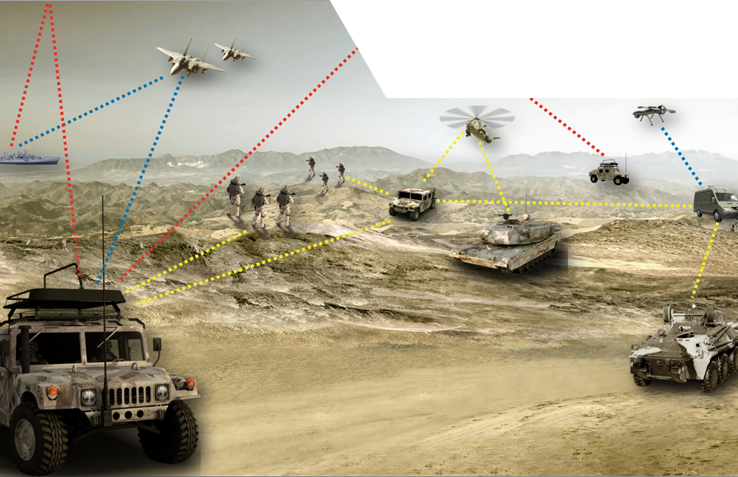

Glocom’s battle-proven communications solutions ensure a reliable flow of information throughout all echelons and in all combat scenario.
Provide shared situational awareness and assist operator in its mission execution.
Legacy vehicles and most new-generation land platforms are seldom ready to plug into the digitized battle space. This calls for a coherent vehicles electronics architecture to allow best integration, networking and exploitation of legacy and new sensor, vehicle, and weapon data on board.

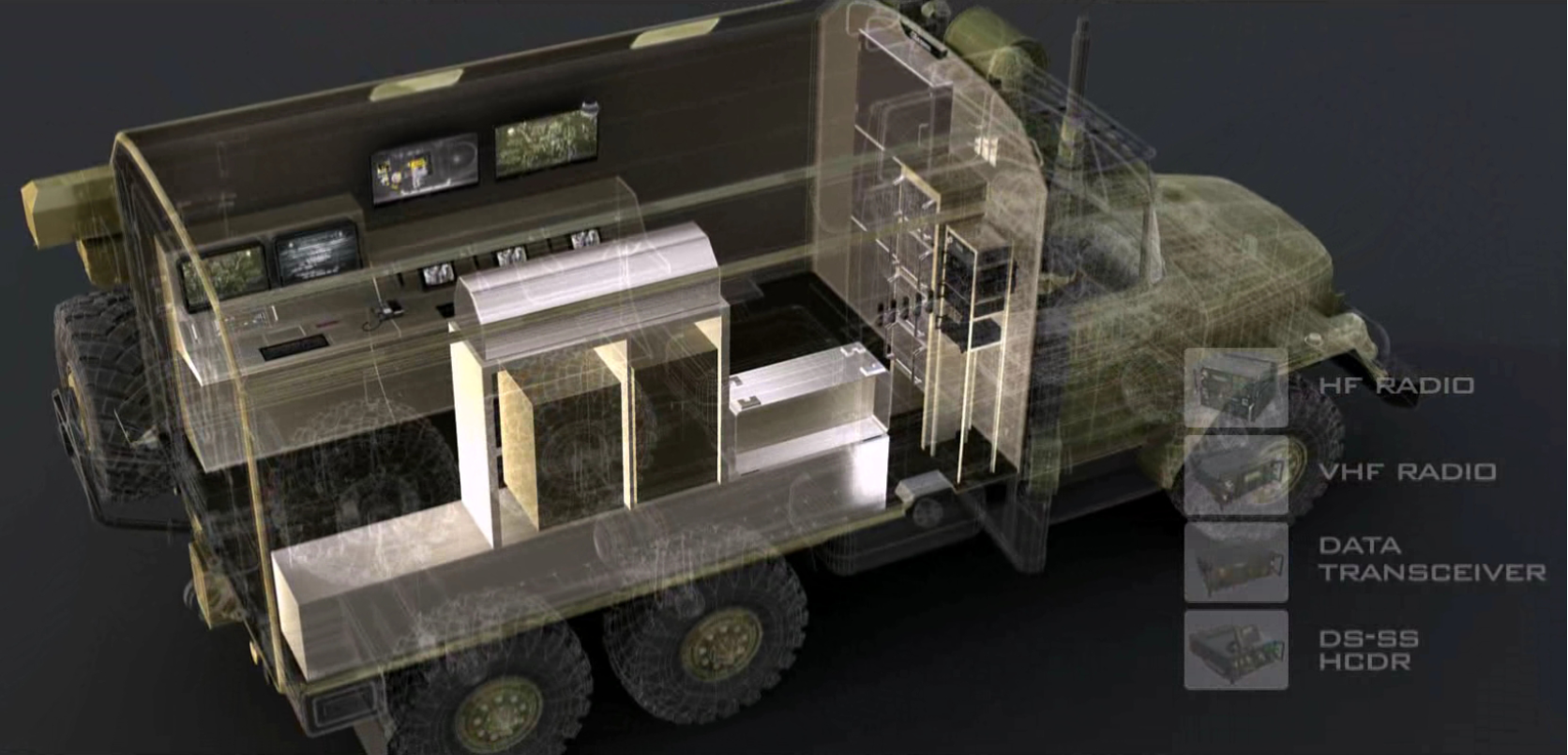

On this vehicle electronics system (or systronics) core, an overall vehicle and communications supervision enables network-centric operations of the whole battle group as an integrated system.

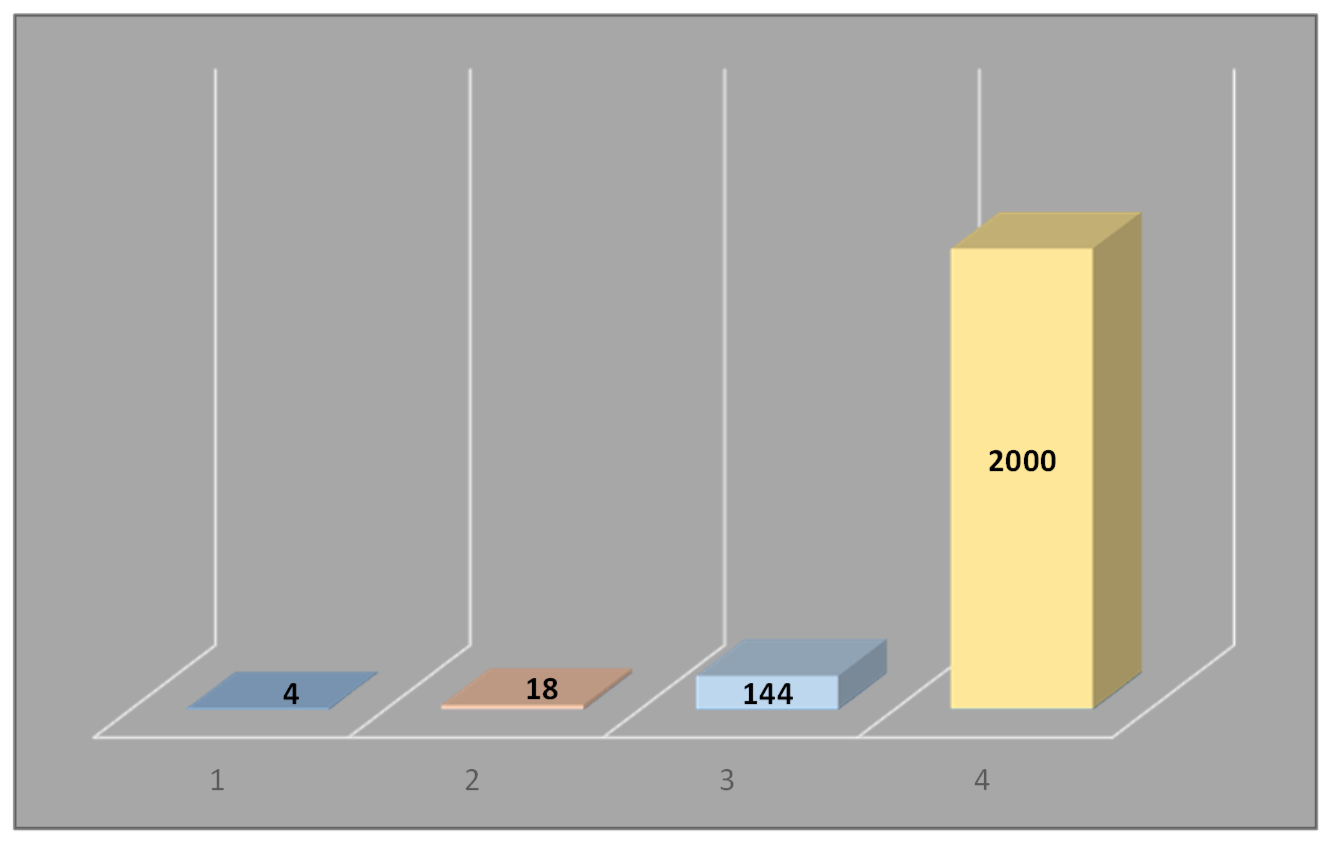

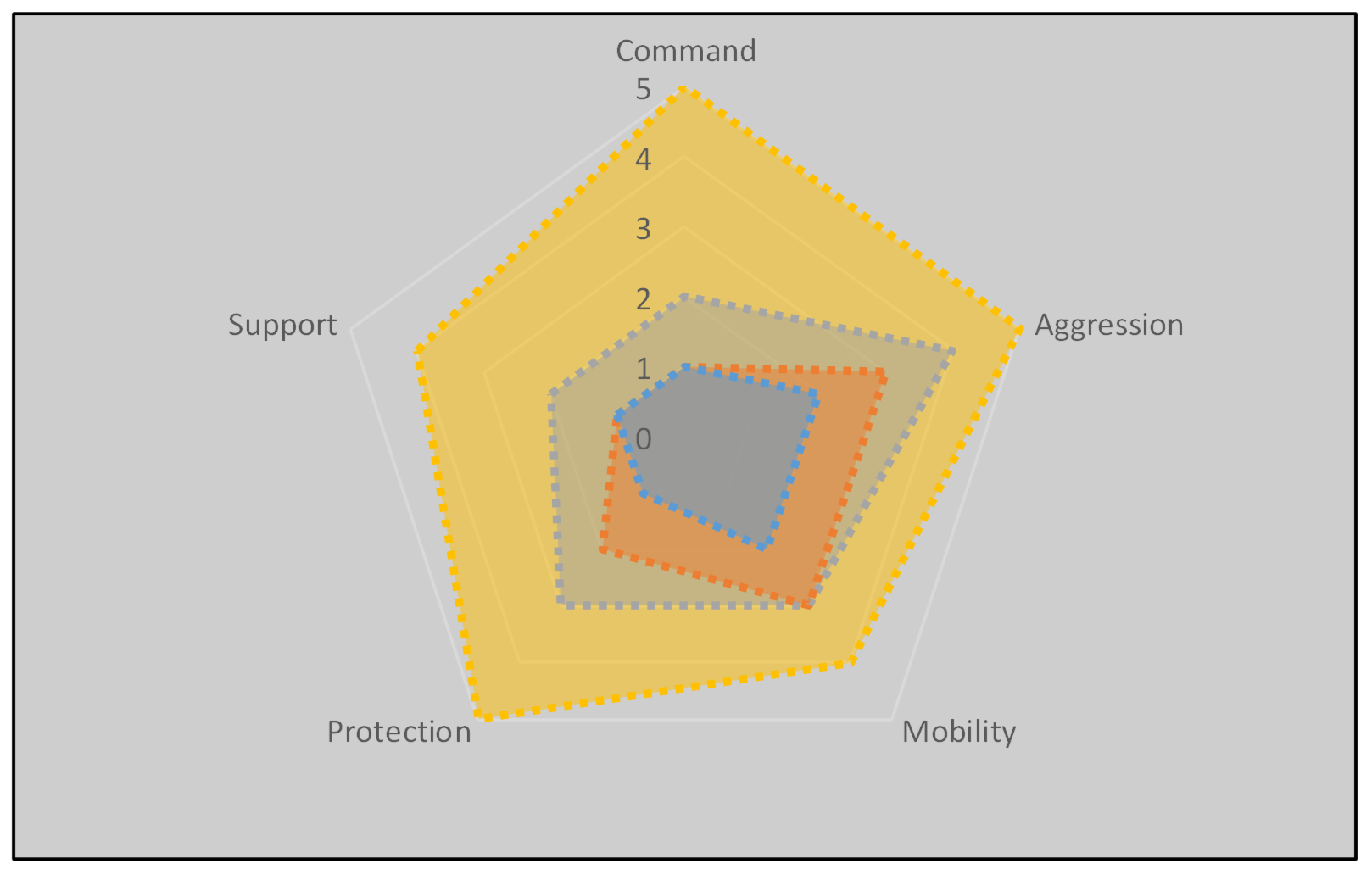

To measure the force multiplication factor and augmented situational awareness provided by vehicle digitization and multi-vehicle networking, NATO has defined new metrics beyond the traditional mobility, protection and firepower.
| No | DESCRIPTION | Command | Aggression | Mobility | Protection | Support | Total |
|---|---|---|---|---|---|---|---|
| 1 | Normal vehicle | 1 | 2 | 2 | 1 | 1 | 4 |
| 2 |
Legacy or new vehicle (platform and main weapon) The best protected, most mobile and powerful vehicles remain vulnerable when they fight alone or using only voice orders. |
1 | 3 | 3 | 2 | 1 | 18 |
| 1 |
Single vehicle digitisation mission systems (enabling equipment integration) Digitized platform with vehicle electronics system can best exploit equipment integration and deliver enhanced local awareness. |
2 | 4 | 3 | 3 | 2 | 144 |
| 1 |
Multi-vehicle networking (multi-mission integration and link to command & control chain) Sharing vehicle and tactical information allows synchronized manoeuver, accurate logistics, collaborative fighting and decision superiority. |
5 | 5 | 4 | 5 | 4 | 2000 |

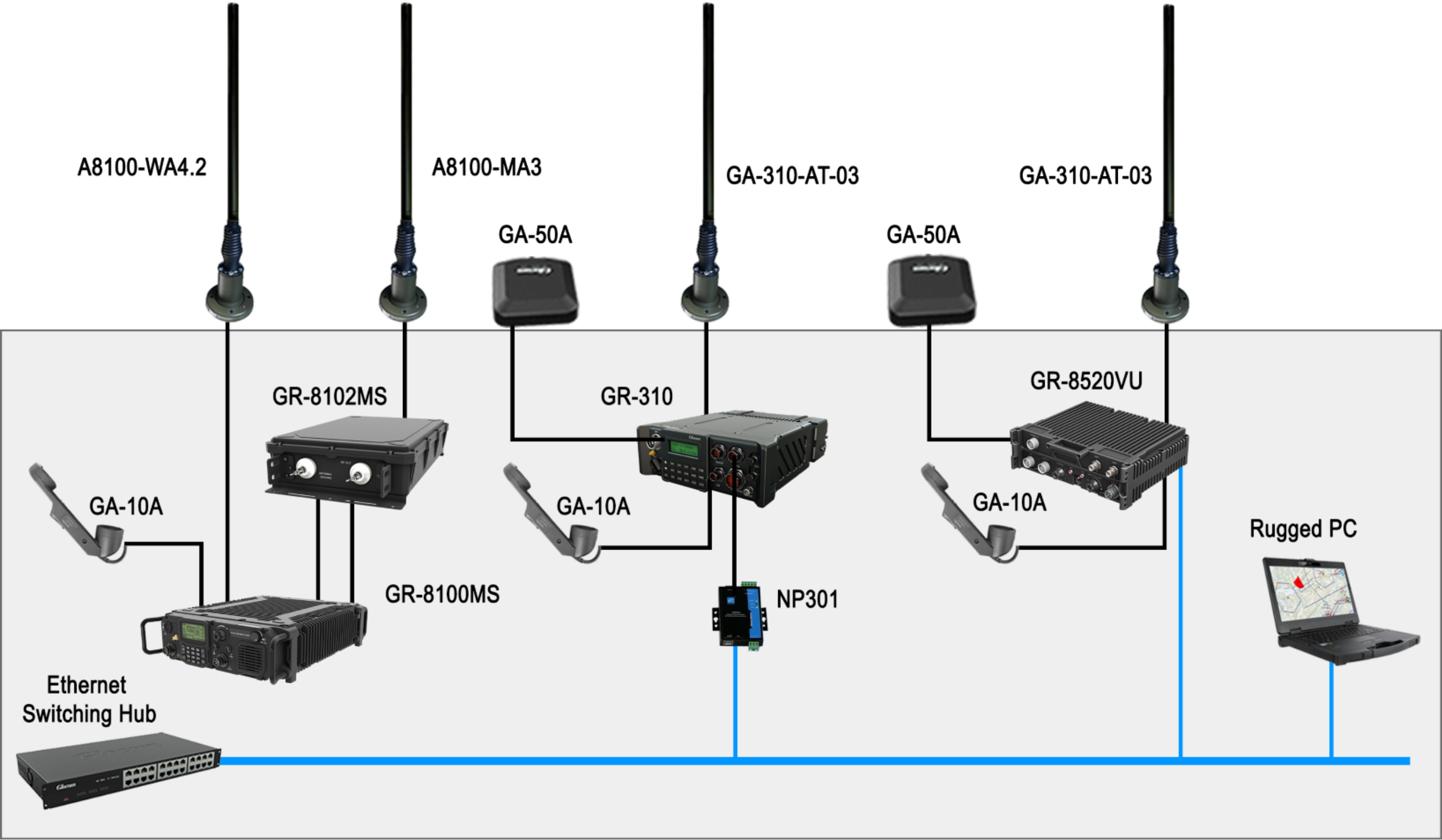

GS-2200-01 “Dove” Ground Vehicle System (Small)
Ordering Information
| No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
|---|---|---|---|---|---|
| 1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | Set | 1 |
| 1-1 | HF/VHF 100W Mobile Radio | GR-8100MS | Glocom | Pc | 1 |
| 1-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
| 1-3 | HF Mobile Antenna with Cable | A8100-WA4.2 | Glocom | Pc | 1 |
| 1-4 | VHF Mobile Antenna with Cable(30~88 MHz, 3.7m) | A8100-MA3 | Glocom | Pc | 1 |
| 1-5 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
| 1-6 | HF 100W Automatic Tuning Unit | GR-8102MS | Glocom | Pc | 1 |
| 1-7 | Amplifier-ATU RF Cable | A8100MS-RC01 | Glocom | Pc | 1 |
| 1-8 | Amplifier-ATU Control Cable | A8100MS-CC01 | Glocom | Pc | 1 |
| 1-9 | Power Cable | A8100MS-PC01 | Glocom | Pc | 1 |
| 1-10 | Asynchronous Data Cable | A8100-DC01 | Glocom | Pc | 1 |
| 1-11 | Ethernet Cable | A8100-EC24 | Glocom | Pc | 1 |
| 1-12 | Field Reference Guide | A8100MS-UM01 | Glocom | Copy | 1 |
| 2 | VHF/UHF EPM Mobile Radio Set | GR-310VH | Glocom | Set | 1 |
| 2-1 | VHF/UHF Manpack radio | GR-310 | Glocom | Pc | 1 |
| 2-2 | Officer handset | GA-10A | Glocom | Pc | 1 |
| 2-3 | Mobile antenna with cable (225~512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
| 2-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
| 2-5 | Clone Cable | GA-21A | Glocom | Pc | 1 |
| 2-6 | Li-Ion battery pack | GA-31D | Glocom | Pc | 2 |
| 2-7 | Battery charger | GA-32D | Glocom | Pc | 1 |
| 2-8 | User manual | GA-131A | Glocom | Copy | 1 |
| 3 | High Capacity Data Radio Set | GR-8520VU | Glocom | Set | 1 |
| 3-1 | High Capacity Data Radio (HCDR) | GR-8520VU | Glocom | Pc | 1 |
| 3-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
| 3-3 | Mobile antenna with cable (225~512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
| 3-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
| 3-5 | Ethernet Cable | A8520-EC3M | Glocom | Pc | 1 |
| 3-6 | Power Cable | A8520-PC2M | Glocom | Pc | 1 |
| 3-7 | User Manual | A8520-UM10 | Glocom | Copy | 1 |
| 4 | UHF Secure Personal Radio Set | GR-611B | Glocom | Set | 5 |
| 4-1 | Secure Personal Radio | GR-611B | Glocom | Pc | 1 |
| 4-2 | Whip Antenna | A611B-WA01 | Glocom | Pc | 1 |
| 4-3 | GPS Handheld Antenna | A611B-GA01 | Glocom | Pc | 1 |
| 4-4 | Battery Pack | A611B-BP01 | Glocom | Pc | 2 |
| 4-5 | Battery Charger | A611B-BC1B | Glocom | Pc | 1 |
| 4-6 | Carry Pouch | A611B-CP01 | Glocom | Pc | 1 |
| 4-7 | User Manual | A611B-UM10 | Glocom | Copy | 1 |
| 5 | Computer & Peripheral | Brand | |||
| 5-1 |
Rugged PC CPU: Core I 5, RAM: 8GB, Hard Disk: 256GB, Display: 15’’ |
3rd Party | Getac | Set | 1 |
| 5-2 | Rugged Tablet | Android | Ulefone | Set | 5 |
| 5-3 | Ethernet Switching Hub | 8 ports | Brand | Set | 1 |
| 5-4 | Ethernet-RS232 Converter | NP301 | 3onedata | Set | 1 |
| 5-5 | Ethernet Cable | 3m | Brand | Pc | 3 |
| 6 | Software | Glocom | |||
| 6-1 | Integrated Command & Control (C2) Software for Front Line | GS-930FL | Glocom | Copy | 1 |
| 6-2 | Integrated Command & Control (C2) Software for Edge Soldier | GS-930EG | Glocom | Copy | 1 |
| 6-3 | Tactical Chat | GS-910 (Windows/Android) | Glocom | Copy | 1 |
| 6-4 | GR-8100 Communication Planning Application | GC-8100HV (Windows) | Glocom | Copy | 1 |
| 6-5 | GR-310 Setup & Control Software | GC-310 (Windows) | Glocom | Copy | 1 |
| 6-6 | GR-611B Setup & Control Software | GC-611B (Android) | Glocom | Copy | 1 |
| 7 | Vehicle Installation Kit | A8100-IK10 | Glocom | Set | 1 |

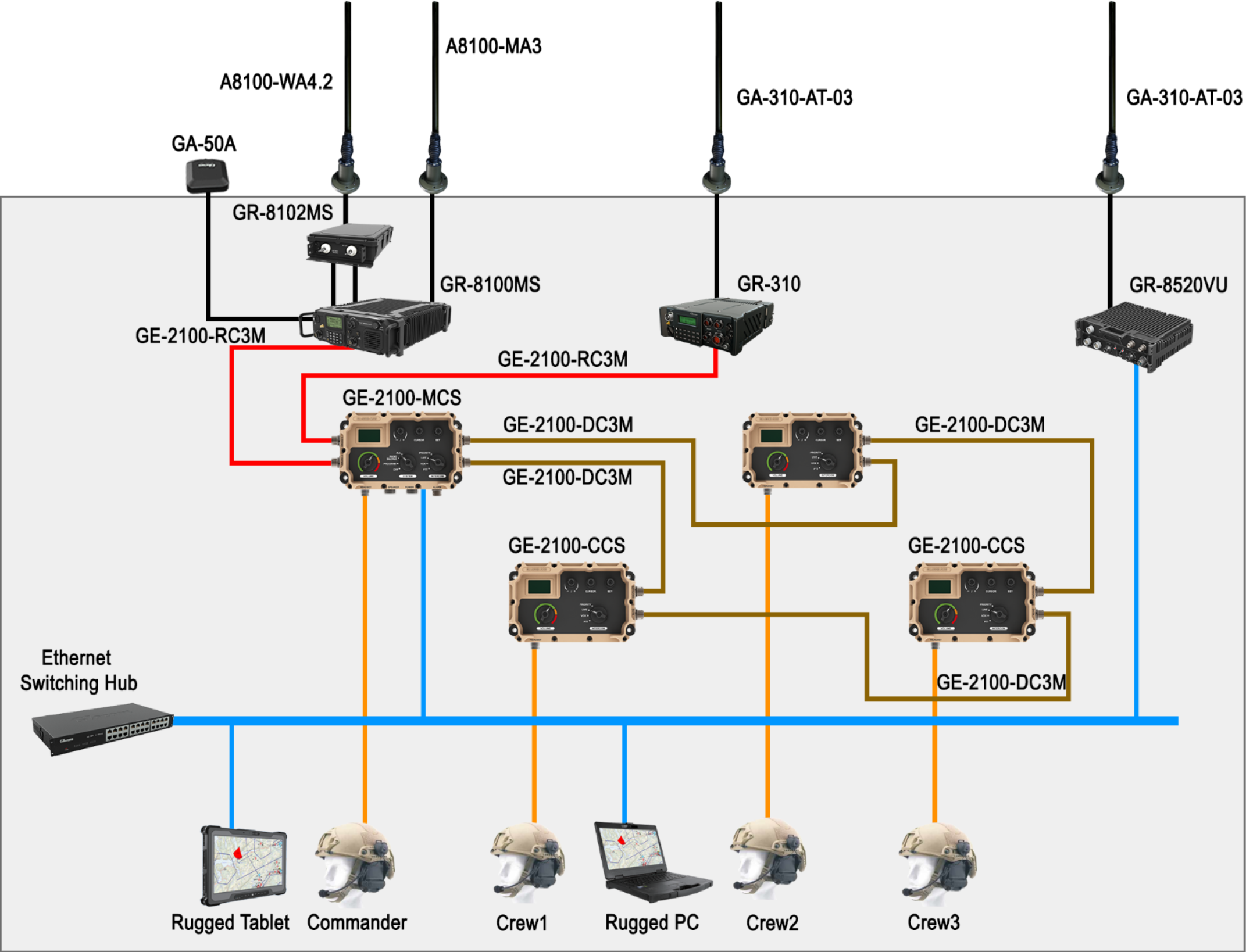

GS-2200-02 “Owl” Ground Vehicle System (Medium)
Ordering Information
| No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
|---|---|---|---|---|---|
| 1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | Set | 1 |
| 1-1 | HF/VHF 100W Mobile Radio | GR-8100MS | Glocom | Pc | 1 |
| 1-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
| 1-3 | HF Mobile Antenna with Cable | A8100-WA4.2 | Glocom | Pc | 1 |
| 1-4 | VHF Mobile Antenna with Cable (30~88 MHz, 3.7m) | A8100-MA3 | Glocom | Pc | 1 |
| 1-5 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
| 1-6 | HF 100W Automatic Tuning Unit | GR-8102MS | Glocom | Pc | 1 |
| 1-7 | Amplifier-ATU RF Cable | A8100MS-RC01 | Glocom | Pc | 1 |
| 1-8 | Amplifier-ATU Control Cable | A8100MS-CC01 | Glocom | Pc | 1 |
| 1-9 | Power Cable | A8100MS-PC01 | Glocom | Pc | 1 |
| 1-10 | Asynchronous Data Cable | A8100-DC01 | Glocom | Pc | 1 |
| 1-11 | Ethernet Cable | A8100-EC24 | Glocom | Pc | 1 |
| 1-12 | Field Reference Guide | A8100MS-UM01 | Glocom | Copy | 1 |
| 2 | VHF/UHF EPM Mobile Radio Set | GR-310VH | Glocom | Set | 1 |
| 2-1 | VHF/UHF Manpack radio | GR-310 | Glocom | Pc | 1 |
| 2-2 | Officer handset | GA-10A | Glocom | Pc | 1 |
| 2-3 | Mobile antenna with cable (225~512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
| 2-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
| 2-5 | Clone Cable | GA-21A | Glocom | Pc | 1 |
| 2-6 | Li-Ion battery pack | GA-31D | Glocom | Pc | 2 |
| 2-7 | Battery charger | GA-32D | Glocom | Pc | 1 |
| 2-8 | User manual | GA-131A | Glocom | Copy | 1 |
| 3 | High Capacity Data Radio Set | GR-8520VU | Glocom | Set | 1 |
| 3-1 | High Capacity Data Radio (HCDR) | GR-8520VU | Glocom | Pc | 1 |
| 3-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
| 3-3 | Mobile antenna with cable (225~512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
| 3-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
| 3-5 | Ethernet Cable | A8520-EC3M | Glocom | Pc | 1 |
| 3-6 | Power Cable | A8520-PC2M | Glocom | Pc | 1 |
| 3-7 | User Manual | A8520-UM10 | Glocom | Copy | 1 |
| 4 | Tactical Network Intercom System | GE-2100 | Glocom | Set | 1 |
| 4-1 | Master Control Station | GE-2100-MCS | Glocom | Pc | 1 |
| 4-2 | Crew Control Station | GE-2100-CCS | Glocom | Pc | 3 |
| 4-3 | Data & Power Cable | GE-2100-DC3M | Glocom | Pc | 4 |
| 4-4 | Radio Voice & Data Cable | GE-2100-RC3M | Glocom | Pc | 2 |
| 4-5 | Power Cable | GE-2100-PC3M | Glocom | Pc | 1 |
| 4-6 | Ethernet Cable | GE-2100-EC3M | Glocom | Pc | 1 |
| 4-7 | Tactical Headset | A8100-TH10 | Glocom | Pc | 4 |
| 5 | UHF Secure Personal Radio Set | GR-611B | Glocom | Set | 5 |
| 5-1 | Secure Personal Radio | GR-611B | Glocom | Pc | 1 |
| 5-2 | Whip Antenna | A611B-WA01 | Glocom | Pc | 1 |
| 5-3 | GPS Handheld Antenna | A611B-GA01 | Glocom | Pc | 1 |
| 5-4 | Battery Pack | A611B-BP01 | Glocom | Pc | 2 |
| 5-5 | Battery Charger | A611B-BC1B | Glocom | Pc | 1 |
| 5-6 | Carry Pouch | A611B-CP01 | Glocom | Pc | 1 |
| 5-7 | User Manual | A611B-UM10 | Glocom | Copy | 1 |
| 6 | Computer & Peripheral | Brand | |||
| 6-1 |
Rugged PC CPU: Core I 5, RAM: 8GB, Hard Disk: 256GB, Display: 15’’ |
3rd Party | Getac | Set | 1 |
| 6-2 | Rugged Tablet | Windows, 5” | Getac | Set | 1 |
| 6-3 | Rugged Tablet | Android | Ulefone | Set | 5 |
| 6-4 | Ethernet Switching Hub | 8 ports | Brand | Set | 1 |
| 6-5 | Ethernet Cable | 3m | Brand | Pc | 2 |
| 7 | Software | Glocom | |||
| 7-1 | Integrated Command & Control (C2) Software for Front Line | GS-930FL | Glocom | Copy | 1 |
| 7-2 | Integrated Command & Control (C2) Software for Edge Soldier | GS-930EG | Glocom | Copy | 1 |
| 7-3 | Tactical Chat | GS-910 (Windows/Android) | Glocom | Copy | 1 |
| 7-4 | GR-8100 Communication Planning Application | GC-8100HV (Windows) | Glocom | Copy | 1 |
| 7-5 | GR-310 Setup & Control Software | GC-310 (Windows) | Glocom | Copy | 1 |
| 7-6 | GR-611B Setup & Control Software | GC-611B (Android) | Glocom | Copy | 1 |
| 8 | Vehicle Installation Kit | A8100-IK10 | Glocom | Set | 1 |

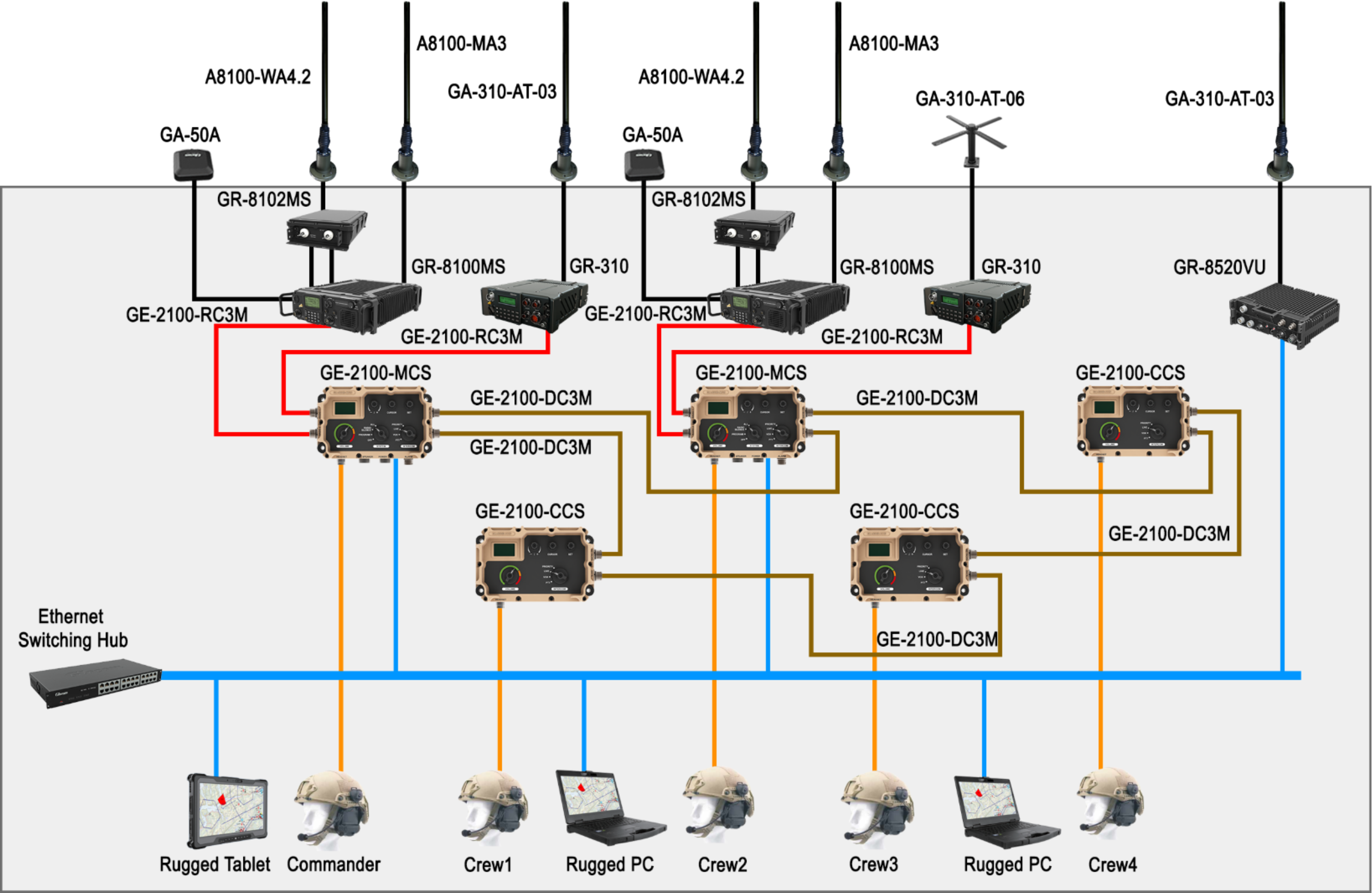

GS-2200-03 “Eagle” Ground Vehicle System (Large)
Ordering Information
| No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
|---|---|---|---|---|---|
| 1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | Set | 2 |
| 1-1 | HF/VHF 100W Mobile Radio | GR-8100MS | Glocom | Pc | 2 |
| 1-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 2 |
| 1-3 | HF Mobile Antenna with Cable | A8100-WA4.2 | Glocom | Pc | 1 |
| 1-4 | HF NVIS Mobile Antenna with Cable | A8100-WA4.2B | Glocom | Pc | 1 |
| 1-5 | VHF Mobile Antenna with Cable (30~88 MHz, 3.7m) | A8100-MA3 | Glocom | Pc | 2 |
| 1-6 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 2 |
| 1-7 | HF 100W Automatic Tuning Unit | GR-8102MS | Glocom | Pc | 2 |
| 1-8 | Amplifier-ATU RF Cable | A8100MS-RC01 | Glocom | Pc | 2 |
| 1-9 | Amplifier-ATU Control Cable | A8100MS-CC01 | Glocom | Pc | 2 |
| 1-10 | Power Cable | A8100MS-PC01 | Glocom | Pc | 2 |
| 1-11 | Asynchronous Data Cable | A8100-DC01 | Glocom | Pc | 2 |
| 1-12 | Ethernet Cable | A8100-EC24 | Glocom | Pc | 2 |
| 1-13 | Field Reference Guide | A8100MS-UM01 | Glocom | Copy | 1 |
| 2 | VHF/UHF EPM Mobile Radio Set | GR-310VH | Glocom | Set | 2 |
| 2-1 | VHF/UHF Manpack radio | GR-310 | Glocom | Pc | 2 |
| 2-2 | Officer handset | GA-10A | Glocom | Pc | 2 |
| 2-3 | Mobile Antenna with cable (225~512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
| 2-4 | X-wing SATCOM antenna (240~400MHz) with cable | GA-310-AT-06 | Glocom | Pc | 1 |
| 2-5 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 2 |
| 2-6 | Clone Cable | GA-21A | Glocom | Pc | 2 |
| 2-7 | Li-Ion battery pack | GA-31D | Glocom | Pc | 4 |
| 2-8 | Battery charger | GA-32D | Glocom | Pc | 1 |
| 2-9 | User manual | GA-131A | Glocom | Copy | 1 |
| 3 | High Capacity Data Radio Set | GR-8520VU | Glocom | Set | 1 |
| 3-1 | High Capacity Data Radio (HCDR) | GR-8520VU | Glocom | Pc | 1 |
| 3-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
| 3-3 | Mobile antenna with cable (225~512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
| 3-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
| 3-5 | Ethernet Cable | A8520-EC3M | Glocom | Pc | 1 |
| 3-6 | Power Cable | A8520-PC2M | Glocom | Pc | 1 |
| 3-7 | User Manual | A8520-UM10 | Glocom | Copy | 1 |
| 4 | Tactical Network Intercom System | GE-2100 | Glocom | Set | 1 |
| 4-1 | Master Control Station | GE-2100-MCS | Glocom | Pc | 2 |
| 4-2 | Crew Control Station | GE-2100-CCS | Glocom | Pc | 3 |
| 4-3 | Data & Power Cable | GE-2100-DC3M | Glocom | Pc | 5 |
| 4-4 | Radio Voice & Data Cable | GE-2100-RC3M | Glocom | Pc | 4 |
| 4-5 | Power Cable | GE-2100-PC3M | Glocom | Pc | 2 |
| 4-6 | Ethernet Cable | GE-2100-EC3M | Glocom | Pc | 2 |
| 4-7 | Tactical Headset | A8100-TH10 | Glocom | Pc | 5 |
| 5 | UHF Secure Personal Radio Set | GR-611B | Glocom | Set | 10 |
| 5-1 | Secure Personal Radio | GR-611B | Glocom | Pc | 1 |
| 5-2 | Whip Antenna | A611B-WA01 | Glocom | Pc | 1 |
| 5-3 | GPS Handheld Antenna | A611B-GA01 | Glocom | Pc | 1 |
| 5-4 | Battery Pack | A611B-BP01 | Glocom | Pc | 2 |
| 5-5 | Battery Charger | A611B-BC1B | Glocom | Pc | 1 |
| 5-6 | Carry Pouch | A611B-CP01 | Glocom | Pc | 1 |
| 5-7 | User Manual | A611B-UM10 | Glocom | Copy | 1 |
| 6 | Computer & Peripheral | Brand | |||
| 6-1 |
Rugged PC CPU: Core I 5, RAM: 8GB, Hard Disk: 256GB, Display: 15’’ |
3rd Party | Getac | Set | 2 |
| 6-2 | Rugged Tablet | Windows, 5” | Getac | Set | 1 |
| 6-3 | Rugged Tablet | Android | Ulefone | Set | 10 |
| 6-4 | Ethernet Switching Hub | 8 ports | Brand | Set | 1 |
| 6-5 | Ethernet Cable | 3m | Brand | Pc | 3 |
| 7 | Software | Glocom | |||
| 7-1 | Integrated Command & Control (C2) Software for Front Line | GS-930FL | Glocom | Copy | 1 |
| 7-2 | Integrated Command & Control (C2) Software for Edge Soldier | GS-930EG | Glocom | Copy | 1 |
| 7-3 | Tactical Chat | GS-910 (Windows/Android) | Glocom | Copy | 1 |
| 7-4 | GR-8100 Communication Planning Application | GC-8100HV (Windows) | Glocom | Copy | 1 |
| 7-5 | GR-310 Setup & Control Software | GC-310 (Windows) | Glocom | Copy | 1 |
| 7-6 | GR-611B Setup & Control Software | GC-611B (Android) | Glocom | Copy | 1 |
| 8 | Vehicle Installation Kit | A8100-IK10 | Glocom | Set | 1 |
