Advanced Airborne Solutions Enhance Your Mission’s Reach
Key applications
■Aircraft control ■Air traffic control ■Command & Control ■Airspace Surveillance
Joint and combined military operations and multinational missions are driving the change from platform-centric operations to network enabled operations. Glocom supports ITCCS for stationary, land mobile, shipborne, airborne and soldier with high-tech information technology with excellent communication technology. Hereby, the airborne system is designed for all kinds of airborne applications in air-force.
ITCCS (Integrated Tactical Command & Control System ) GS-2000 is an integral whole of various tools used for accurate understanding of battlefield situations, decision-making, speedy and correct implementation of tasks, and conduct of operational simulations and emulations.
C4ISR system is largely composed of sensors dedicated to tactical intelligence gathering, surveillance, and reconnaissance; a command and control system for accurate understanding of battle field situations on the basis of real-time information sharing and analysis, as well as rational decision-making and speedy transmission of orders; and a field management system comprising weapons management system, operation management system, etc., which encompass various kinds of combat equipment, personnel, and all other elements that take part in battles and wars either directly or indirectly.
System Overview
The Glocom GS-2300 is designed to provide mission-critical, air-to-ground, air-to-air fully networked data communications. The data link can provide a range of combat information in near-real time to friendly’s combat aircraft and C2 centers. The displayed information includes an integrated air common picture with both friendly and hostile aircraft locations, general situational awareness data, and amplifying data on air and ground targets, including air defense threats.
This will contribute to the integrated control of fighters by either ground-based or airborne controllers and will greatly increase the fighters’ situational awareness and ability either to engage targets designated by controllers or to avoid threats, thereby increasing mission effectiveness and reducing fratricide and attrition.
Key benefits
Unified situation picture: Integration with multiple sensors , provides a unified situation picture to support decision making as well as real-time operation.
Synchronization of integrated joint forces: Enables managing aerial assets in the tactical airspace and integrating airpower into maneuvering with joint and coalition forces.
Significant cost savings: SWaP-optimized for deployment in fixed-wing, rotary, unmanned and vehicular systems, the Glocom radios provide an inexpensive, highly adaptive solution for the update of aircrafts, so as to enhance their abilities in the future network centric operation environments.

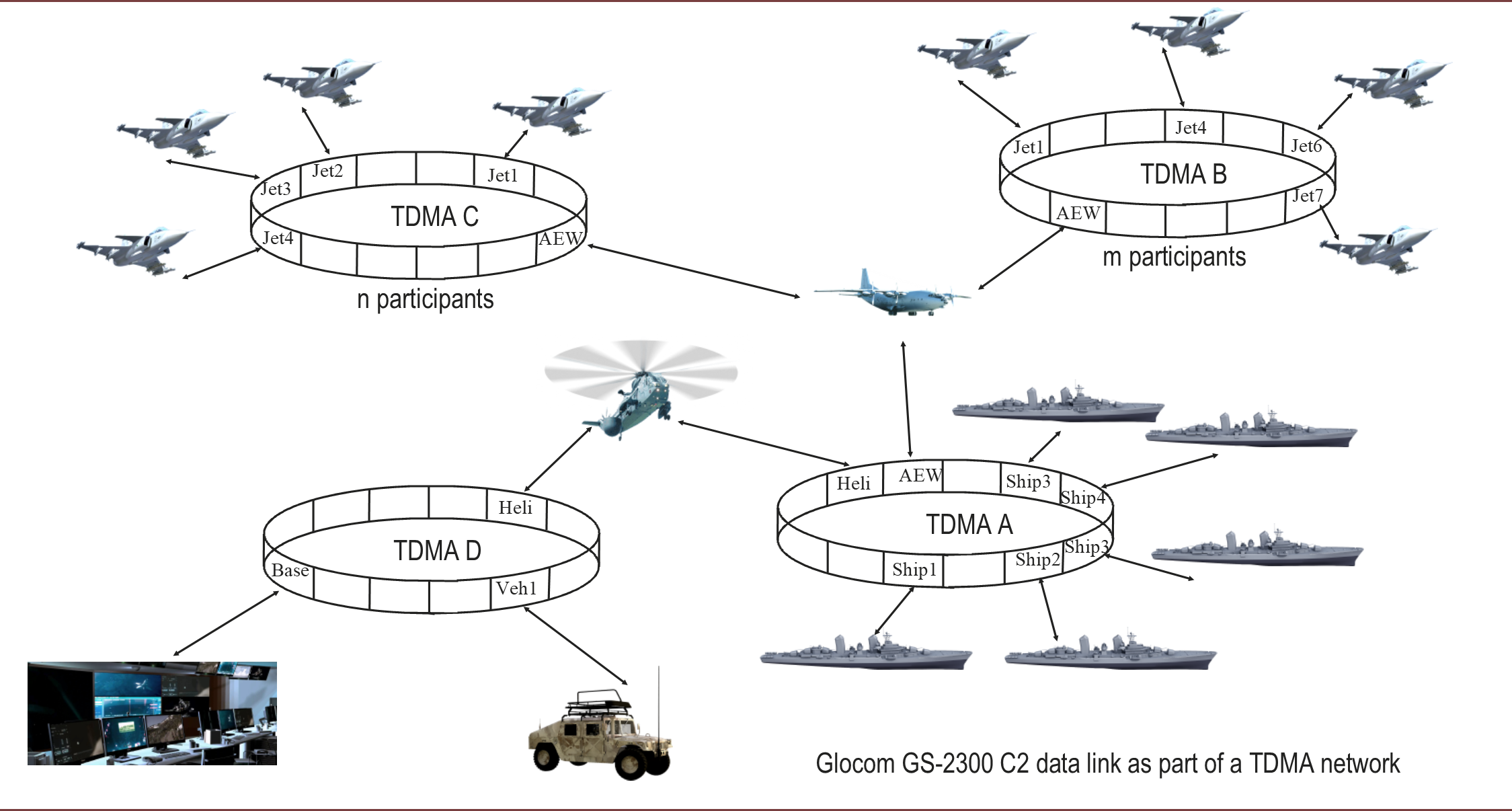

Operational capabilities

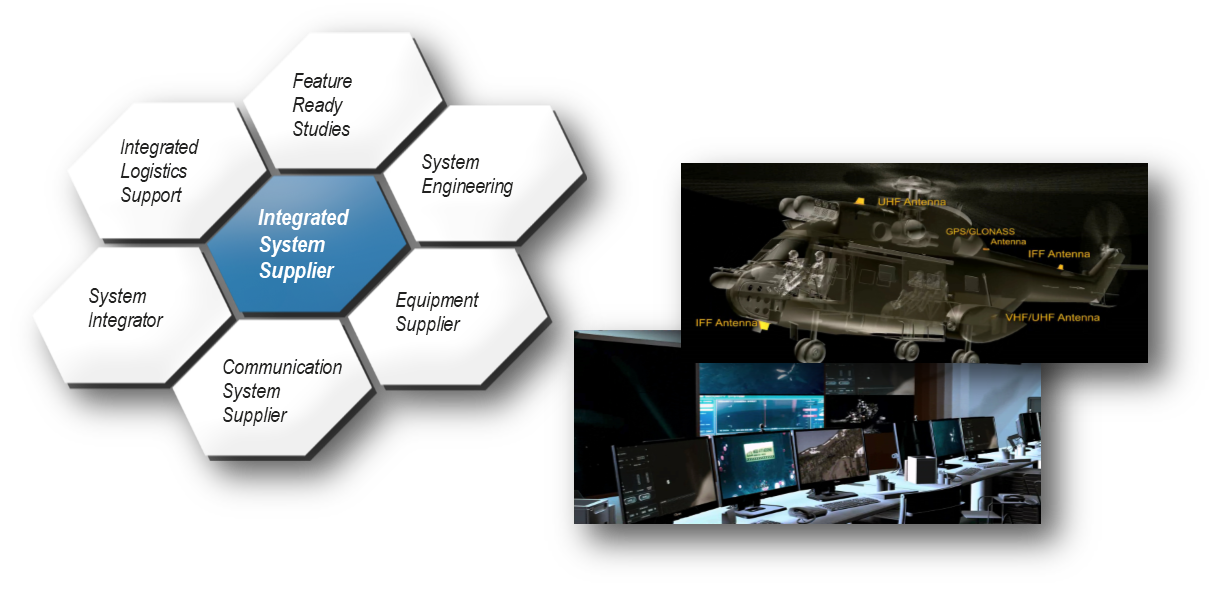

System functions

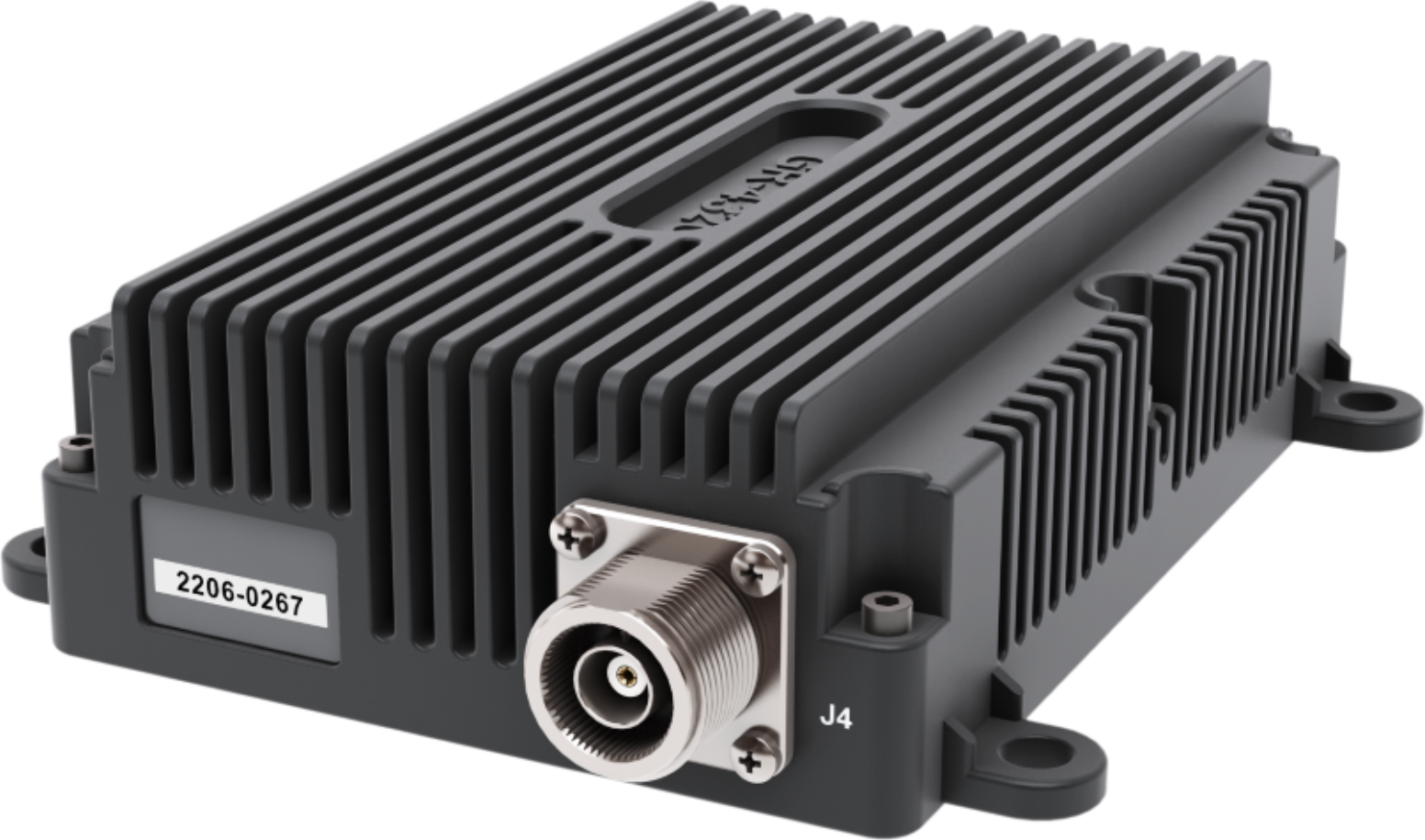

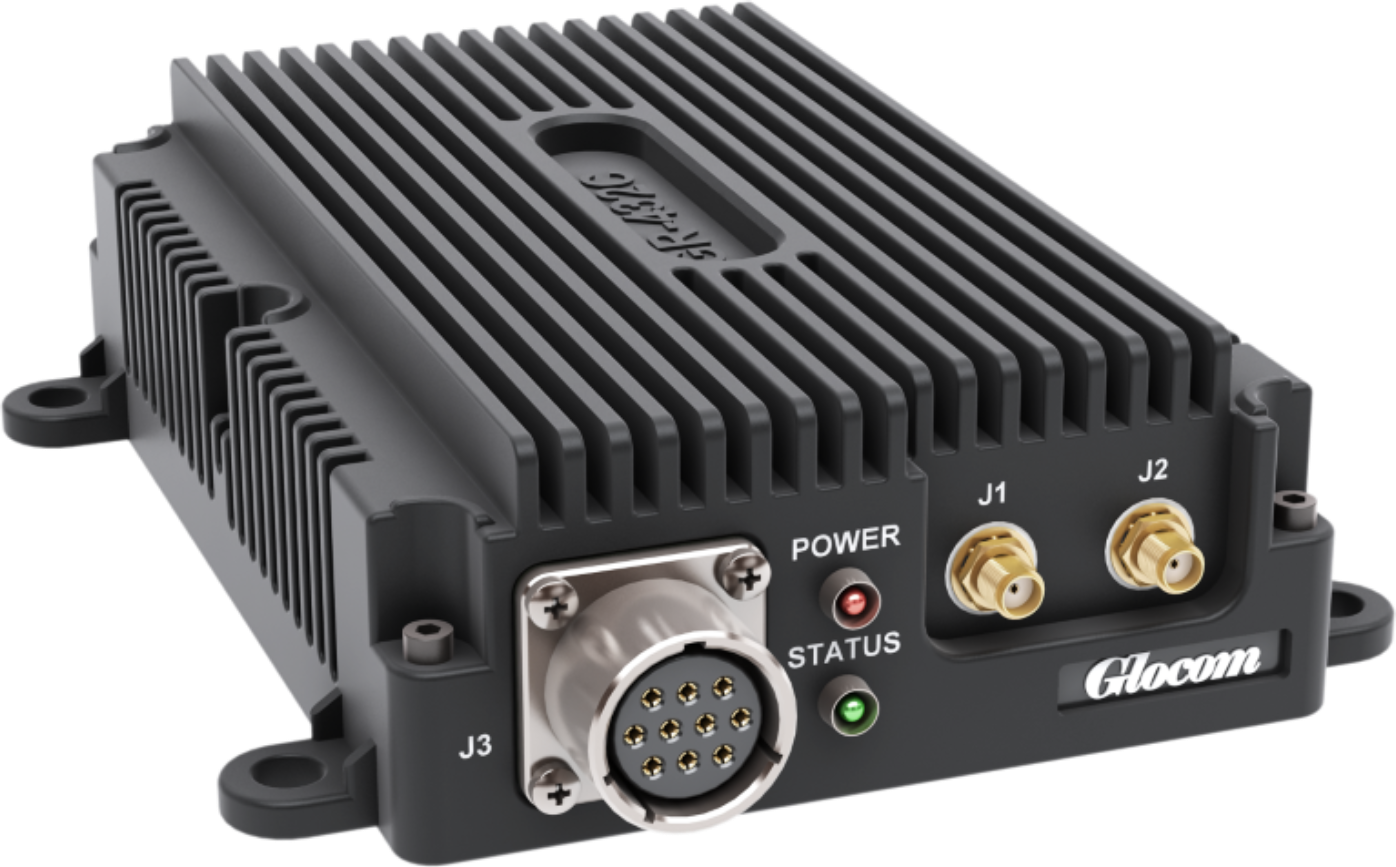

GR-432C Datalink Transceiver
The GR-432C Datalink Transceiver is especially designed for data communication system like Telemetry/Tracking & Command (TTC), Air-Defense Datalink System (ADDS) and Tactical Datalink System - to deliver real-time information superiority on today’s battlefields.
Benefits to end user
Easy installation in cockpit or avionic bay
The radio is designed to use in vehicle, shipborne and airborne. It can be installed in any 4-wheel vehicle, tanks, ships and airborne. Almost of radios are designed “jerk-and-run” concept, so it is very easy to configure airborne system from standard version. If any vehicles or airborne is defective, it can take out just, and can be use in portable purpose.
| Frequency Range | 430~470MHz |
| Channel Spacing | 100kHz, 150kHz, 200kHz |
| Modulation | FSK |
| Data Rate | 1200bps~115.2kbps |
| Frequency Stability | ±1ppm |
| RF Impedance | 50Ω |
| Communication Mode | 1:N TDMA (max. 64) |
| TDMA Period | 2s @ N=10 |
| TRANSEC | FH@100hps |
| COMSEC | AES 256 |
| Power Supply | 11~14VDC, Over-voltage, polarity protection |
| Data Interface | RS-232C |
| Programming | PC |
| Dimension | 147.5x110x25mm |
| Weight | ≤800g |
| Sensitivity | -116dBm @ FSK, 1kbps, BER 10-3 |
| AFC | ±50kHz |
| Current Consumption | ≤200mA |
| RF Power | 50mW~10W |
| Harmonic Suppression | ≥50dBC |
| Current Consumption | ≤4.5A |
| Operating Temperature | -40~60°C |
| Storage Temperature | -50~70°C |
| Humidity | 95% |
 |
 |
GR-432C Datalink Transceiver
GS-2300-01 Command & Control Center System
GS-2300-01 Stationary System

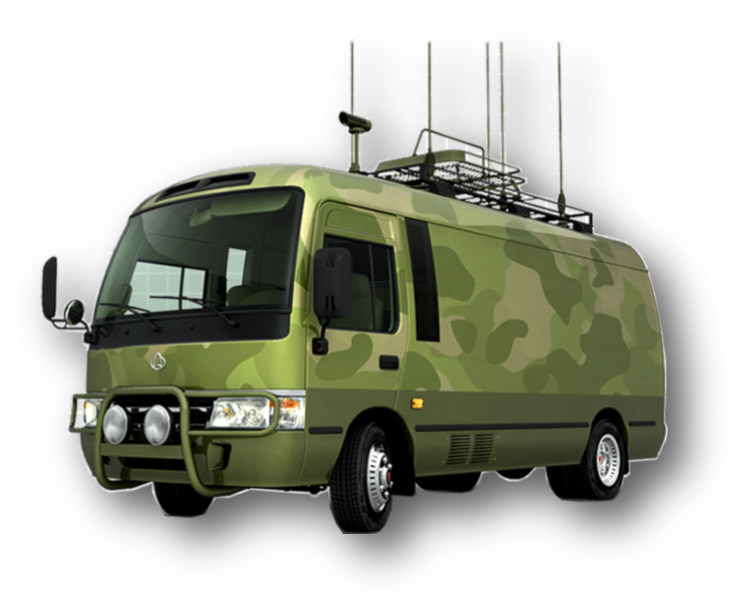

The Ground vehicle system version of GS-2300-01 provides complete communications upgrades to vehicle platform, thus offering customers the cost-effective mobile command and control capabilities. The vehicle system is designed for all kinds of ground vehicle.

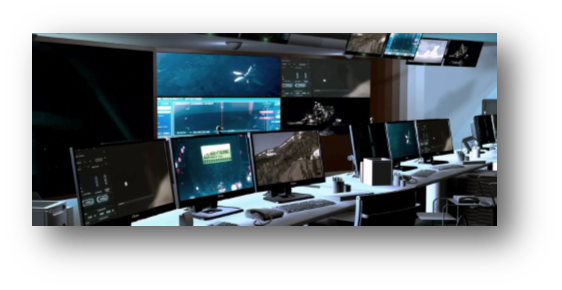

GS-2300-01 Command & Control Center System supports ATC solutions for military and civil ATC applications. It can be a ground command and control center for air-force. All real-time target information, radio information can be concentrated into GS-2300-01, so the commander can make a decision in real-time. It supports battlefield management functions like situation awareness, military operation planning, simulating, distributing, review etc...
GS-2300-01 Ground Vehicle System

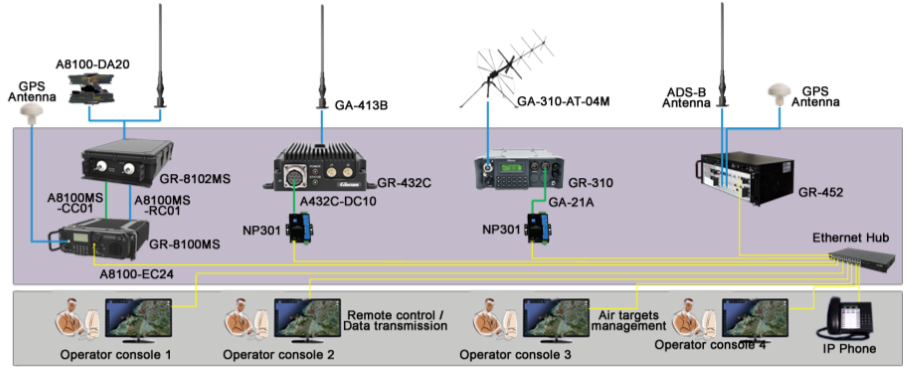

GS-2300-01 Configuration
GS-2300-01 Ordering Information
| No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
|---|---|---|---|---|---|
| 1 | UHF Data Radio Set | GR-432G-TC | Glocom | Set | 1 |
| 1-1 | UHF Data Radio | GR-432C | Glocom | pc | 1 |
| 1-2 | Data Cable | A432C-DC10 | Glocom | pc | 1 |
| 1-3 | Fuselage Antenna with cable (5m) | GA-413B | Glocom | pc | 1 |
| 1-4 | Battery Pack | BB-2590/U | Glocom | pc | 2 |
| 1-5 | Power Cable (2m) | A432C-PC10 | Glocom | pc | 1 |
| 1-6 | Battery Charger | A8100-BC2B | Glocom | pc | 1 |
| 1-7 | User Manual | A432C-UM10 | Glocom | copy | 1 |
| 1-8 | Setup/Control Application (Windows) | GC-432C | Glocom | copy | 1 |
| 1-9 | PSU, 12VDC/100W (option) | GA-33A | Glocom | pc | 1 |
| 2 | HF/VHF Manpack Radio Set | GR-8100HV | Glocom | Set | 1 |
| 2-1 | HF/VHF Manpack Radio | GR-8100VH | Glocom | pc | 1 |
| 2-2 | Officer Handset | A8100-OH10 | Glocom | pc | 1 |
| 2-3 | VHF 2.4m Whip Antenna | A8100-WA2.4V | Glocom | pc | 1 |
| 2-4 | HF 20m x 2 Dipole Antenna | A8100-DA20 | Glocom | pc | 1 |
| 2-5 | GPS Mobile Antenna | GA-50A | Glocom | pc | 1 |
| 2-6 | Battery Box without Battery | A8100-BB31 | Glocom | pc | 1 |
| 2-7 | Battery Pack | BB-2590/U | Glocom | pc | 2 |
| 2-8 | Battery Charger | A8100-BC2B | Glocom | pc | 1 |
| 2-9 | Ground Stake Kit | A8100-GK25 | Glocom | pc | 1 |
| 2-10 | Field Reference Guide | A8100-HVUM01 | Glocom | pc | 1 |
| 2-11 | Setup/Control Application (Windows) | A8100-APPV10 | Glocom | copy | 1 |
| 2-12 | HF 2.4m Whip Antenna (option) | A8100-WA2.4 | Glocom | pc | 1 |
| 2-13 | Asynchronous Data Cable (option) | A8100-DC01 | Glocom | pc | 1 |
| 2-14 | Ethernet Cable (option) | A8100-EC24 | Glocom | pc | 1 |
| 3 | Computer & Peripherals | ||||
| 3-1 | Rugged PC (Windows) | 2 COM Ports | 3rd party | pc | 1 |
| 3-2 | Ethernet-RS232C Converter (option) | NP301 | 3onedata | pc | 2 |
| 3-3 | Ethernet Cable (option) | 5m | 3rd party | pc | 3 |
| 4 | Software Package | ||||
| 4-1 | Command & Control Software for C2 center | GS-930FL | Glocom | copy | 1 |

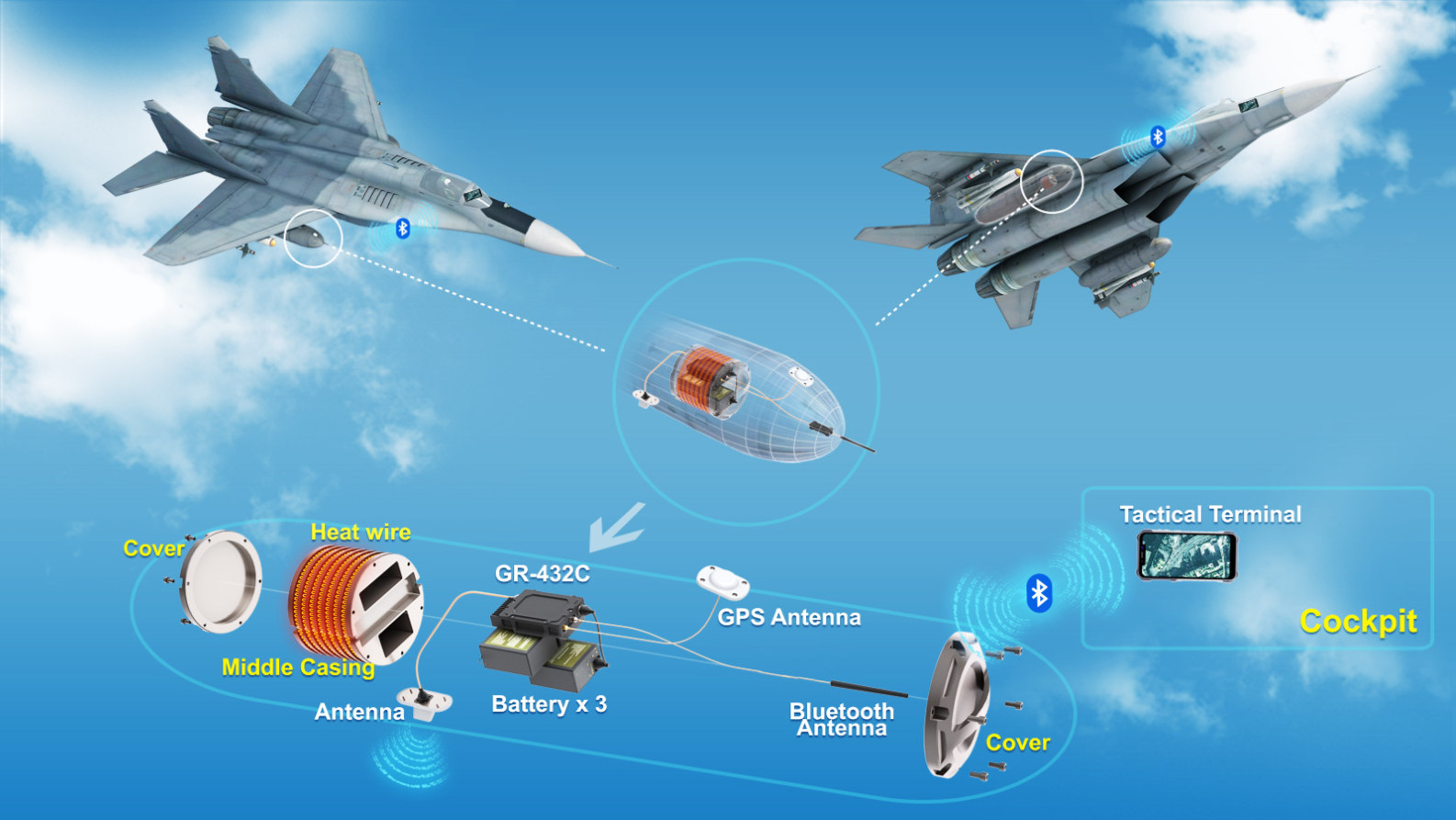

GS-2300-02 Airborne System

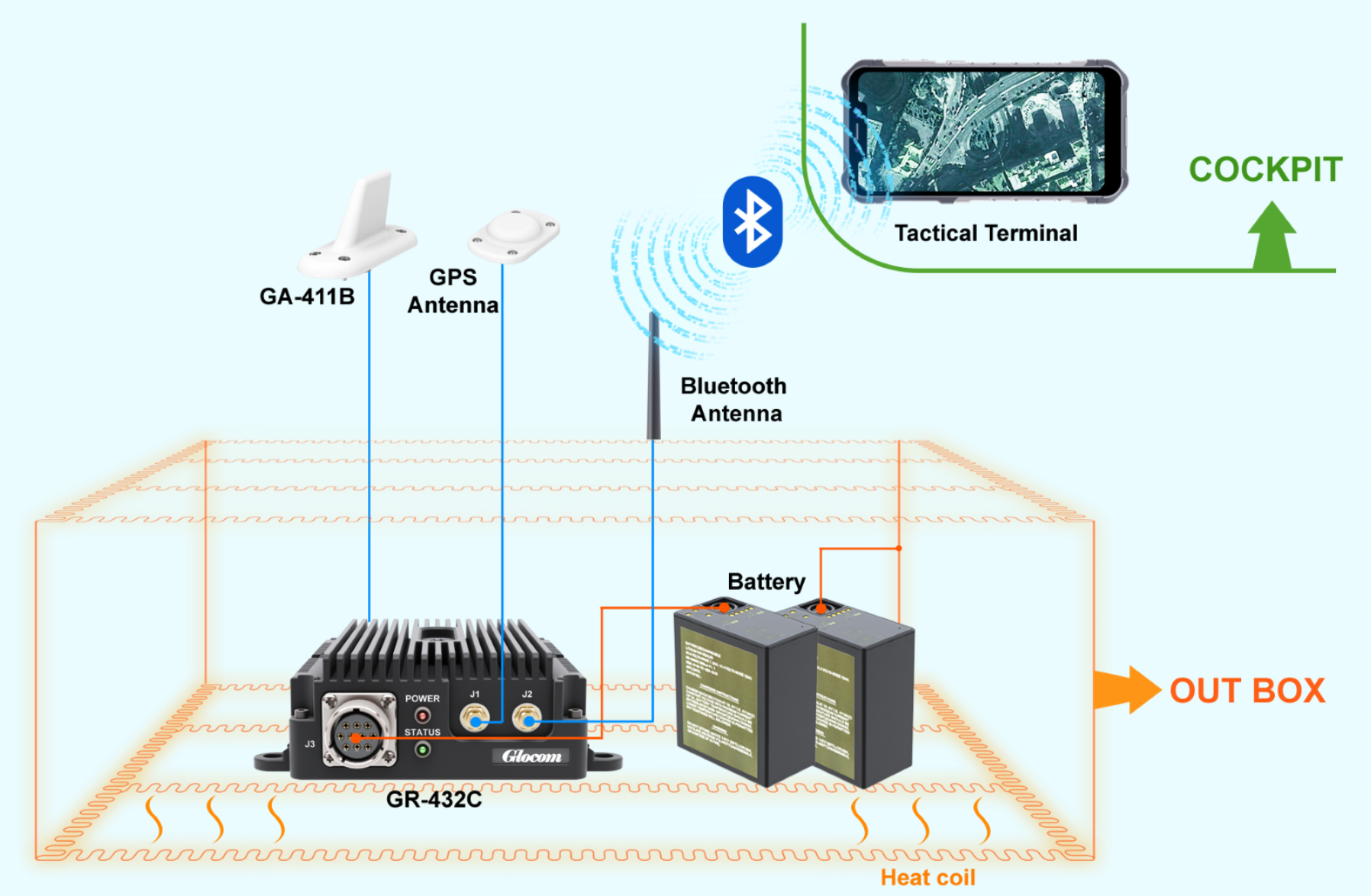

GS-2300-02 Configuration
GS-2300-02 Ordering Information
| No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
|---|---|---|---|---|---|
| 1 | UHF Data Radio Set | GR-432M-TC | Glocom | Set | 1 |
| 1-1 | UHF Data Radio | GR-432C | Glocom | pc | 1 |
| 1-2 | Data Cable | A432C-DC10 | Glocom | pc | 1 |
| 1-3 | Airborne antenna with cable (1m) | GA-411B | Glocom | pc | 1 |
| 1-4 | Mobile GPS Antenna (1m) | GA-50A | Glocom | pc | 1 |
| 1-5 | Bluetooth Antenna | Brand | 3rd party | pc | 1 |
| 1-6 | Power Cable (2m) | A432C-PC10 | Glocom | pc | 1 |
| 1-7 | User Manual | A432C-UM10 | Glocom | copy | 1 |
| 1-8 | Setup/Control Application (Windows) | GC-432C | Glocom | copy | 1 |
| 2 | Computer & Peripherals | ||||
| 2-1 | Rugged Pad (Android, 5.5~6 inch) | Armor | Ulefone | pc | 1 |
| 2-2 | Outer Box | A2300-BOX10 | Glocom | copy | 1 |
| 2-3 | Battery Pack | BB-2590/U | Glocom | pc | 5 |
| 2-4 | Battery Charger | A8100-BC2B | Glocom | pc | 1 |
| 3 | Software Package | ||||
| 3-1 | Command & Control Software for airborne | GS-930EG | Glocom | copy | 1 |
