GS-2600-02 Telemetry/Tracking & Command System

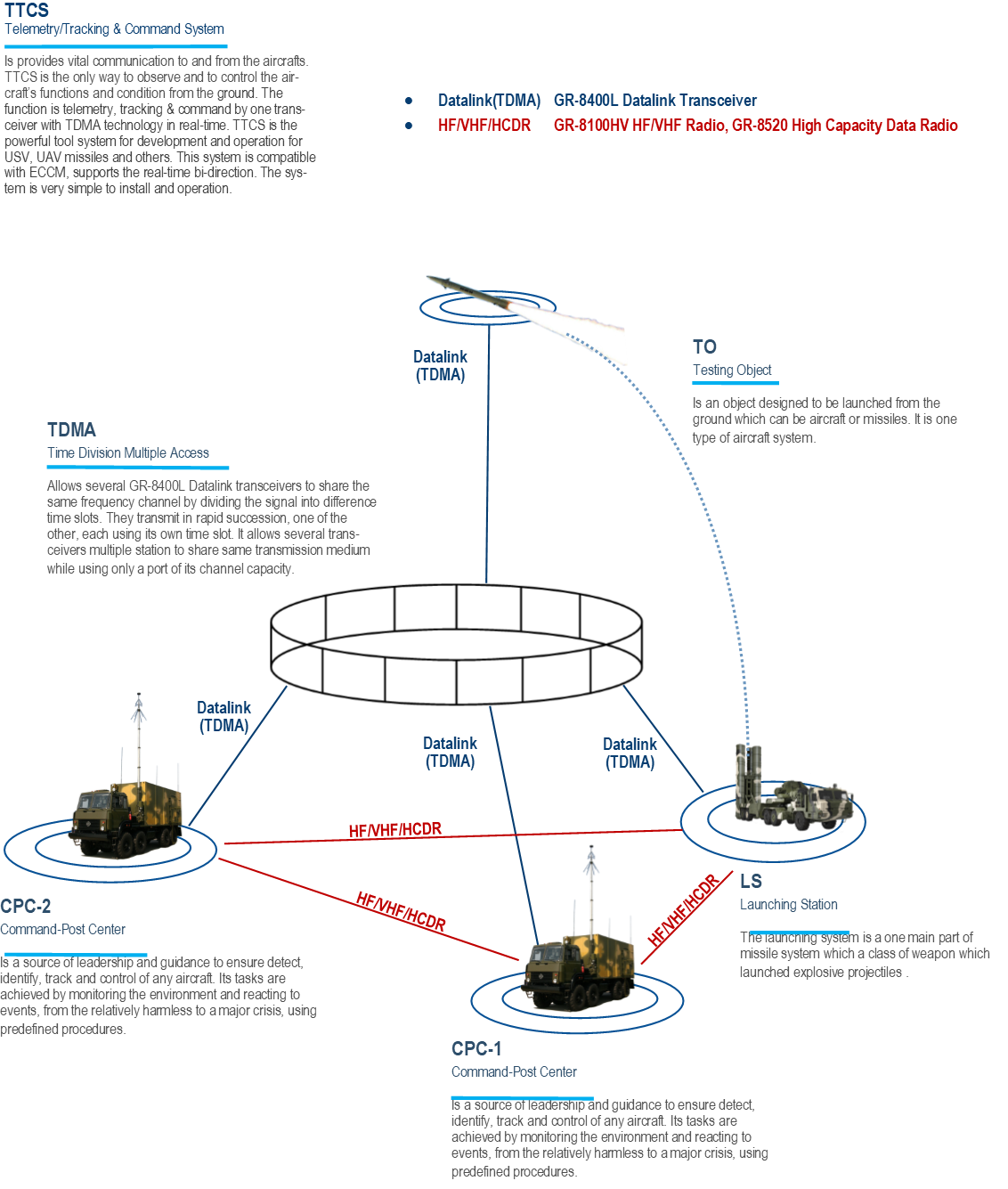

The GS-2600-02 Telemetry/Tracking & Command System provides vital communication to and from the aircraft. TTCS is the only way to observe and to control the aircraft’s functions and condition from the ground. The system supports ECCM capability and modular design, and software defined radio technology to upgrade the system functions without hardware upgrading.

The standard set includes the following systems:-

  • Datalink Transceiver Set (Mobile)3setsGR-8400L-MS
  • System Network Controller3setsGE-8400
  • Datalink Transceiver Set (On-board)10setsGR-8400L-OS
  • HF/VHF Manpack Radio Set3setsGR-8100HV
  • High Capacity Data Radio3setsGR-8520U

OPTION

  • Ethernet HubA8520-LH12/5
  • PC TerminalPanasonic/3rd party
  • Signal Condition BoardA8400-SB01

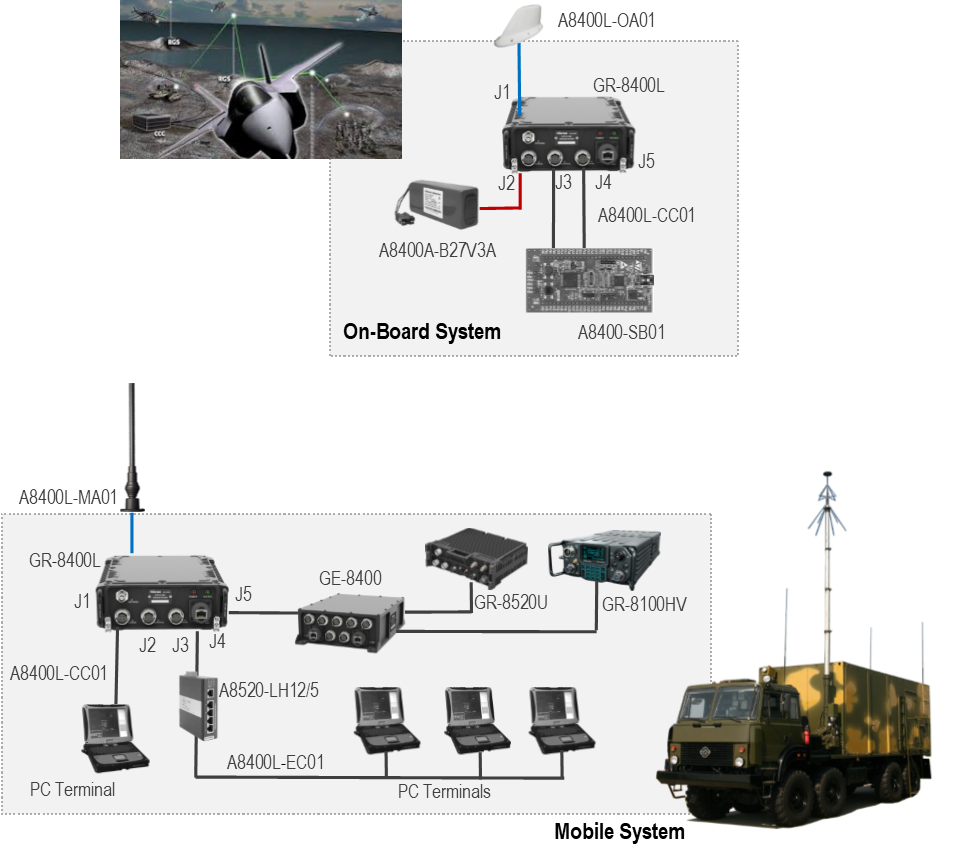

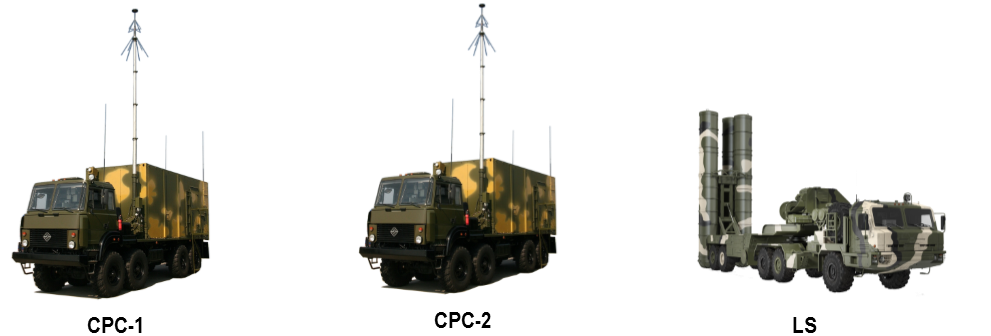

On-board System/Mobile System
