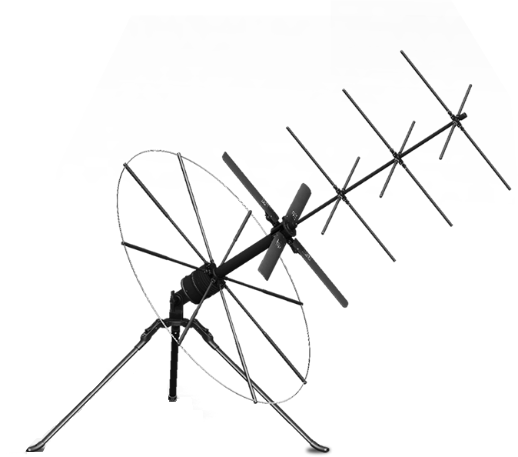

GA-310-AT-04M
Dismount/Transportable UHF SATCOM Antenna
The GA-310-AT-04M is a 240 to 400 MHz rapid-deploy, high-gain, lightweight crossed Yagi antenna for SATCOM communications. The antenna gain varies between +7dBic and +11dBic and the polarization is right hand circular. The 3 dB radiation pattern beam width is 85 degrees . Deployment time is less than one minute .
General Specifications
| Frequency Range | 240-400MHz |
| Polarization | right hand circular |
| Gain | 7 to 11 dBic |
| The 3 dB radiation pattern beam | 85 degrees |
| RF Impedance | 50 ohms (nominal) |
| Power | 20 W |
| Deployed size | 100W x 61D x 61H cm |
| Transport size | 46.9W x 15D x 15H cm |
| Weight | <3 kg |
The GA-310-AT-04M includes:

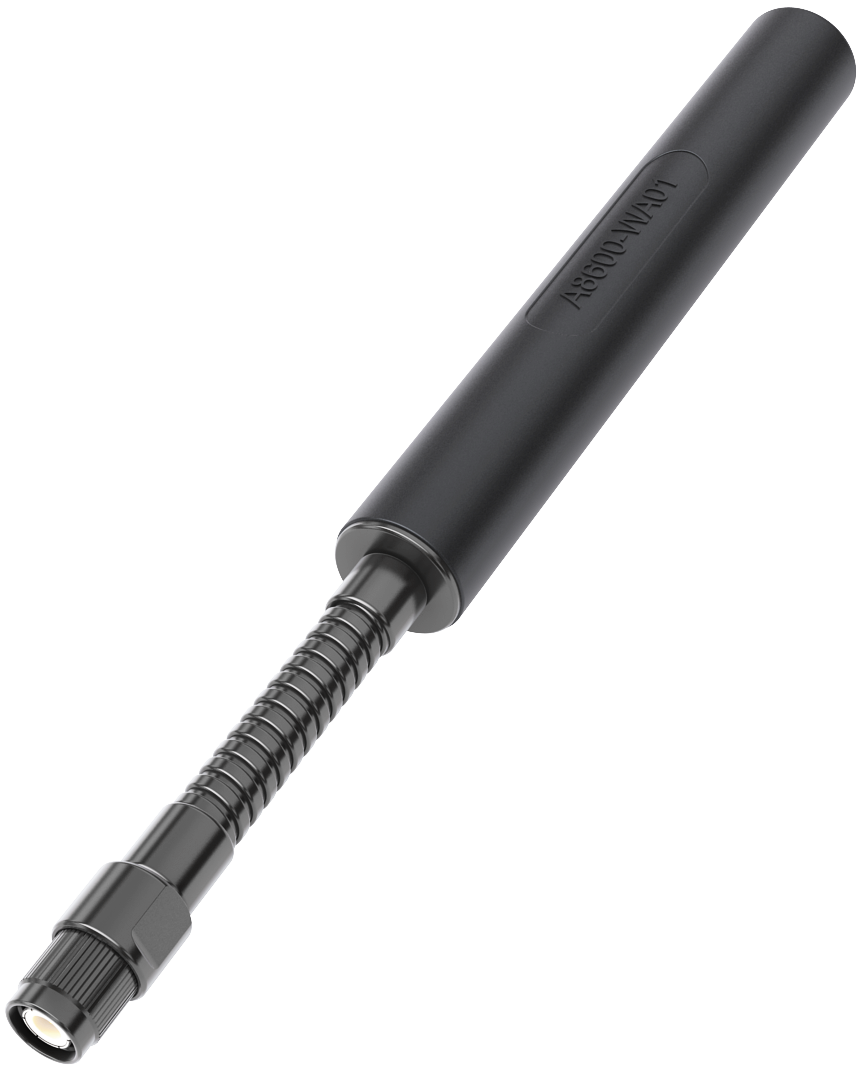

GA-8600WA
UHF Wideband Dismount Antenna
The GA-8600WA is a dismount 225 to 450 MHz monopole antenna desined with double-resonant structure for wideband frequency range above 200MHz. The 26-centimeter long, 400-gram antenna connects directly to the dismount radio via a TNC male connector . The antenna incorporates a flexible gooseneck for orienting the antenna.
The antenna is optimized for modern soldier data transmission and minimizes the effects of electromagnetic interference from a PDA or laptop computer. This antenna becomes part of an exceptionally capable yet lightweight secure digital soldier radio system.
General Specifications
| Frequency Range | 225-450MHz |
| Polarization | Vertical |
| Gain | 0 to 2.5dBi |
| Radiation Pattern | Omni-directional |
| VSWR | <3.5:1 |
| RF Impedance | 50 ohms (nominal) |
| Power | 10 W |
| RF Connection | TNC (male) |
| Height | 27 cm |
| Diameter | 2.6 cm |
| Weight | <0.4 kg |

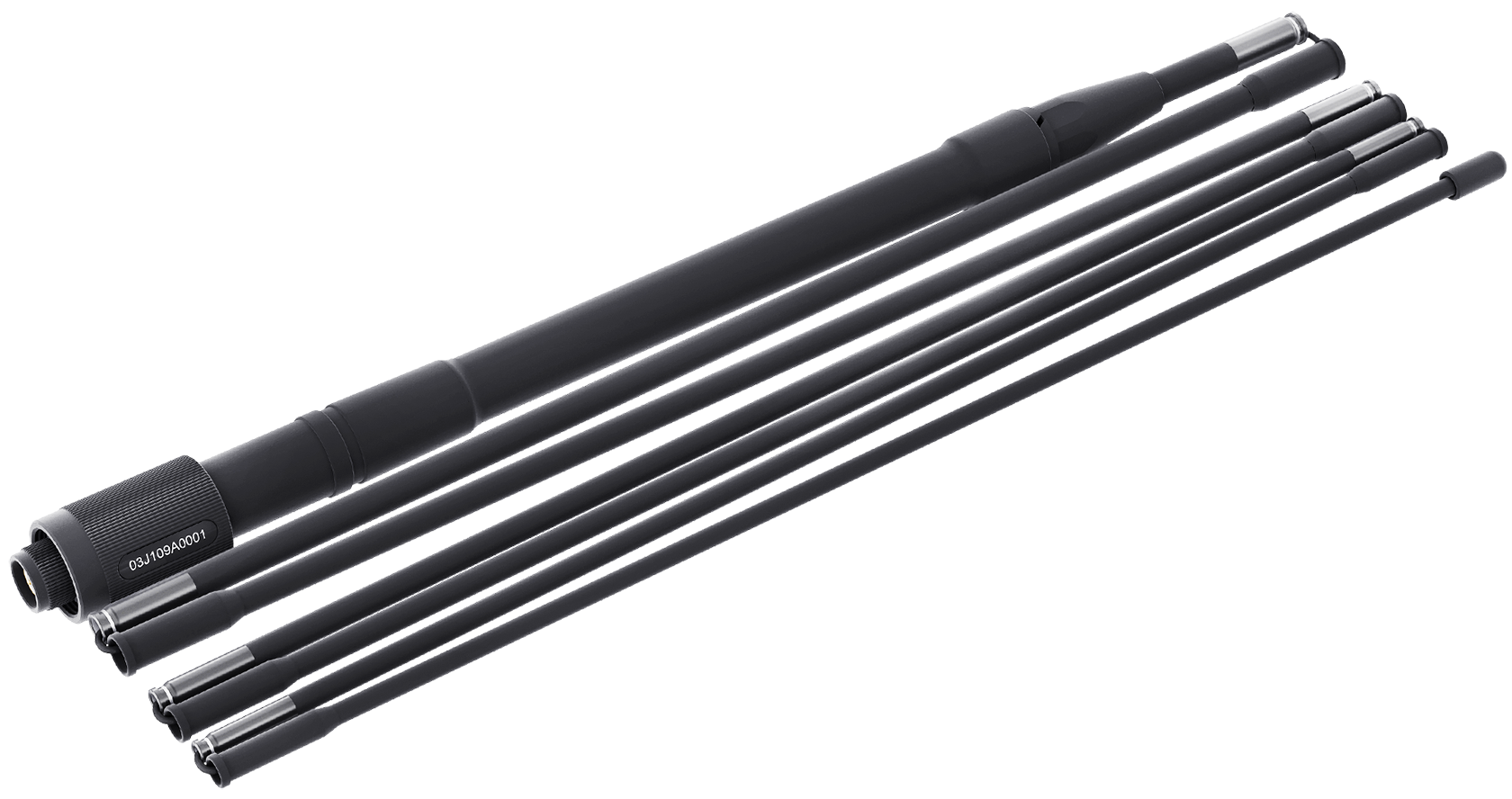

GA-211A
VHF 2.4m Manpack Antenna
The GA-211A is an 2.4-meter, composed of three parts including base adapter, gooseneck part and collapsible antenna sections, 30 to 108 MHz whip antenna. Carry bag is included.
General Specifications
| Frequency Range | 30-108MHz |
| Polarization | Vertical |
| Gain | 0 to 2.5dBi |
| Radiation Pattern | Omni-directional |
| VSWR | <3.5:1 |
| RF Impedance | 50 ohms (nominal) |
| Power | 10 W |
| RF Connection | TNC (male) |
| Length | 2.4 m |
| Weight | <0.4 kg |

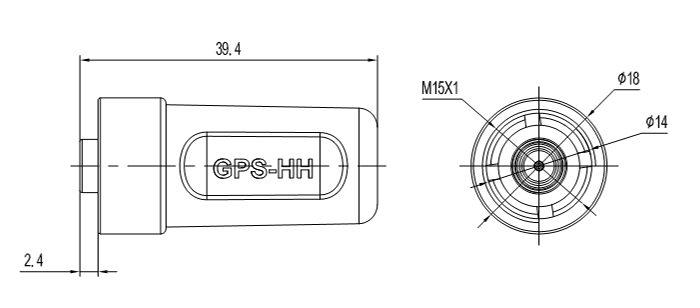

GA-51A
Mobile L1 active GPS Antenna
The GA-51A is a compact L1 active GPS antenna with 25 dBi gain for use with handheld radios with GPS option.
The antenna is 3 .8 centimeters in length and connects directly to a connector on the transceiver .
