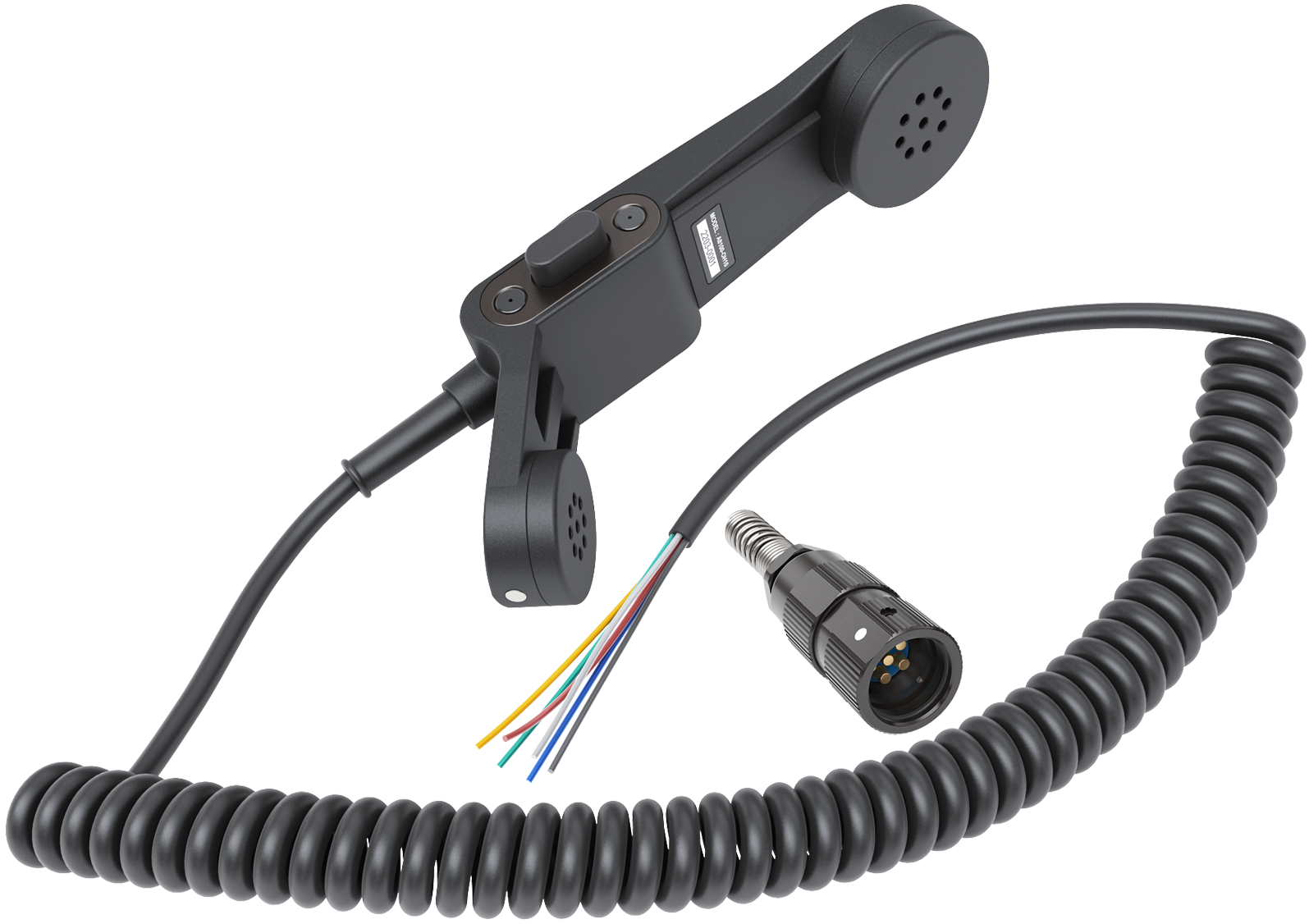

GA-8100OH Military Official Handset
This handset was designed for use under combat conditions which includes explosions, heavy trucks or tanks driving nearby, etc.
Key Features
■ Military Grade Handset
■ Lightweight
■ Use with military radios such as Glocom Radios
■ Cable with U-329 connector
■ Bias voltage is not required on pin F
Technical Specifications
Speaker
| Type | Transducer Moving Coil Dynamic Speaker |
| Impedance | 600Ω±15% @1kHz |
| Sensitivity | 105dB±3dB at 1k at 1mW |
| Frequency response | 300Hz ~ 4kHz |
| Rated input power | 0.1W |
| Maximum input power | 0.2W |
Microphone
| Type | Transducer Moving Coil Dynamic MIC |
| Sensitivity Range | -61±3dB @ 1kHz |
| Impedance Max | 150Ω±20% @ 1kHz |
| Frequency | 300Hz ~ 3kHz |
Environmental
| Operating Temperature | -30 ~ +75° C |
| Relative Humidity | <96% |
Ohmmeter Readings:
■ A (gnd) to B (Speaker) = 600 Ohms
■ A (gnd) to C (PTT) = normally open, 6 Ohms PTT pressed
■ A (gnd) to D (mike) = normally open, 150 Ohms PTT pressed
■ A (gnd) to E (External) = always open Speaker
OEM: Can design and manufacture per the customer request, match all kinds of connectors.
