With the ultimate long-range view, the Glocom’s S-band radar gives you the ability to detect, predict, plan, and protect – before severe attack strikes.
Key Features

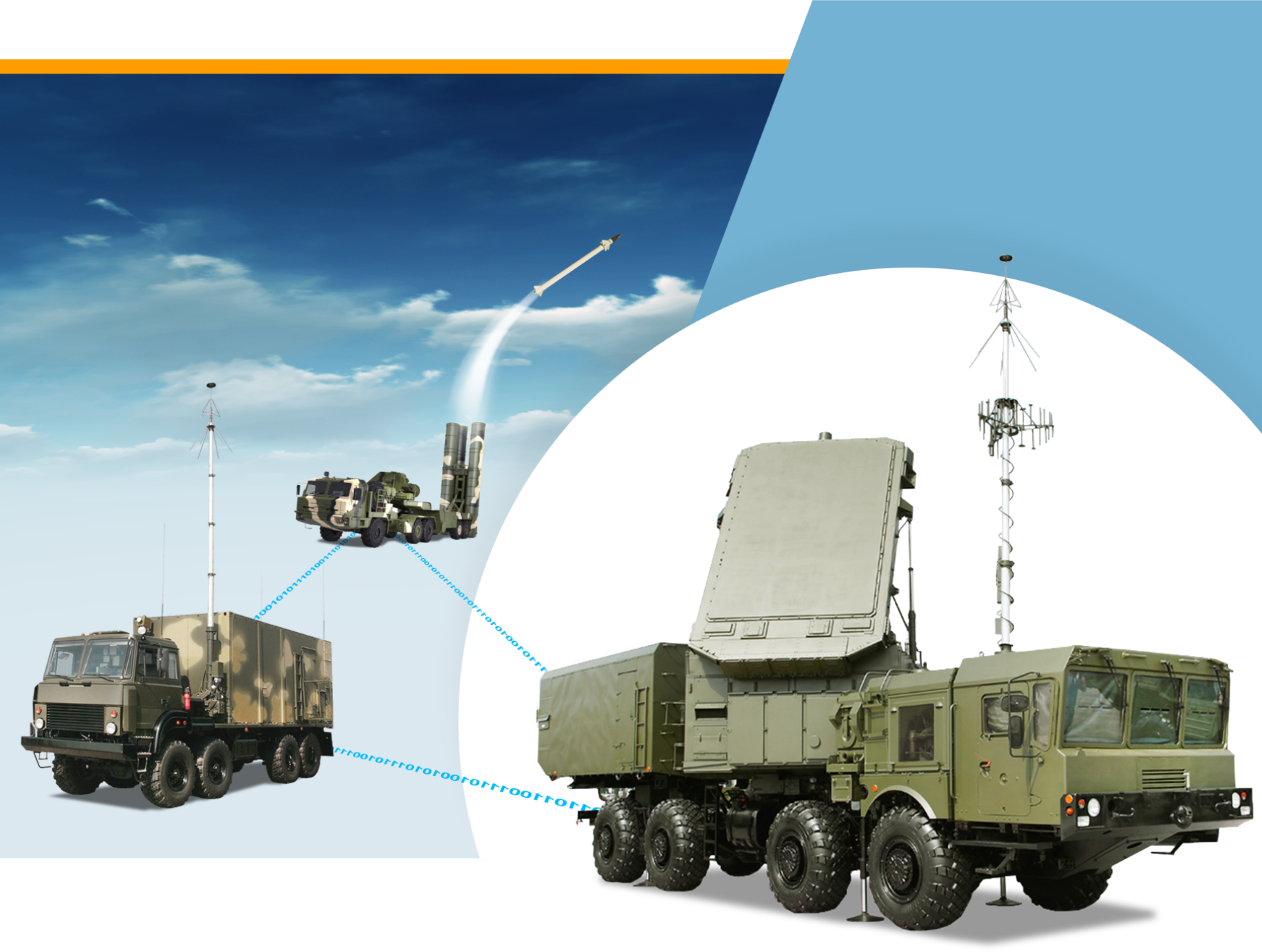

The Glocom’s GD-200S Radar System is a transportable ground-based, multifunctional solid-state phased array radar. Incorporating Glocom’s long-term experience in surveillance and tracking radars and utilizing the company’s state-of-the-art phased array technology, The GD-200S Radar System is designed to autonomously detect and simultaneously track dozens of ballistic missiles and airborne targets covering long ranges, under all weather conditions and in the presence of undesired echoes. The modular, solid state, active array technology implemented in the radar, including multiple advanced transmit/receive modules, provides high redundancy, high reliability and high availability.

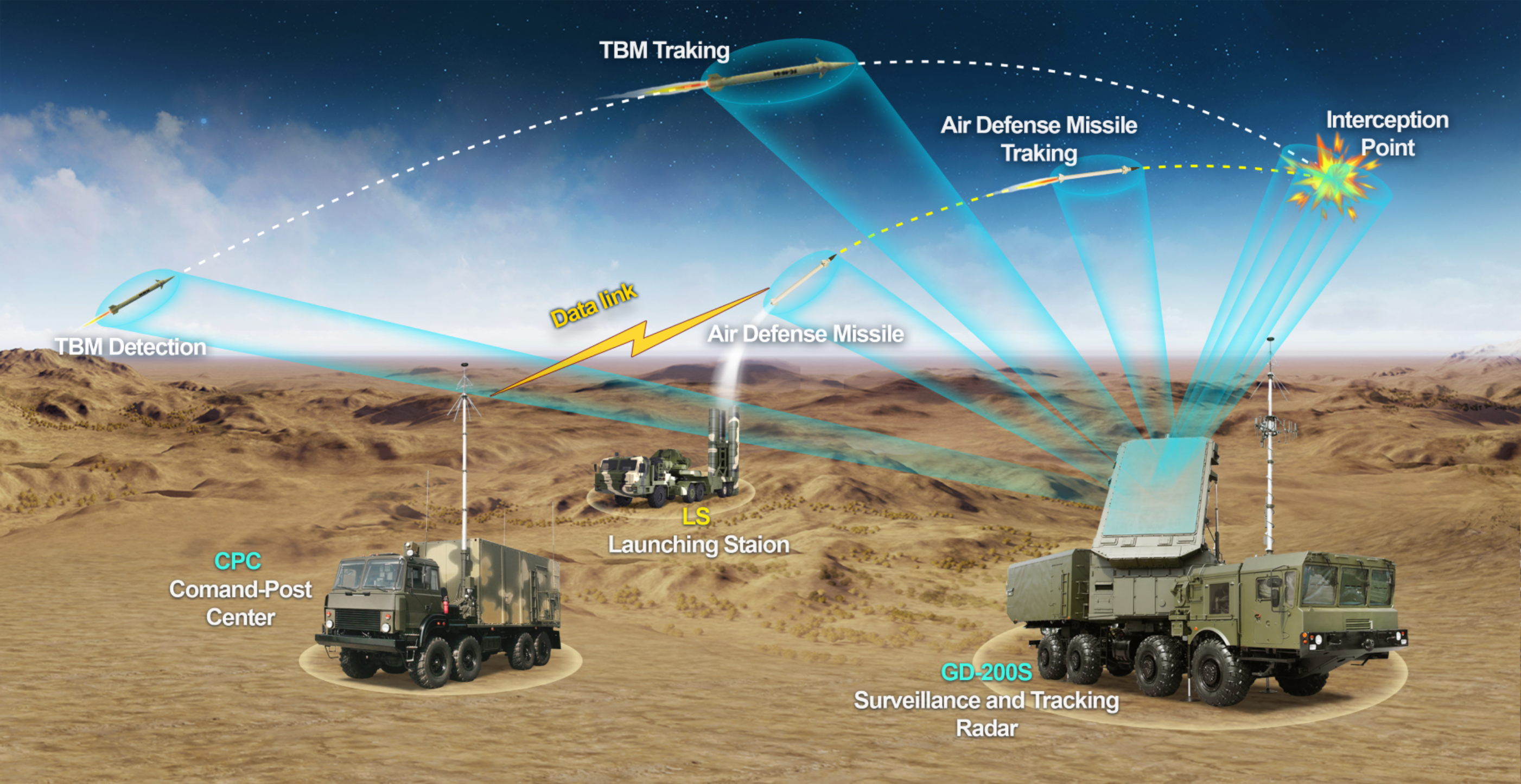

The mission of detecting and tracking long-range aircraft/ballistic targets, identification of aircraft, anti-jamming and guided missile acquisition/tracking is able to be carried out only by a single GD-200S radar.
Operational in the Air Force, this advanced radar enhances the country’s air defense capabilities.
General Specifications
| Frequency | S-band |
| Bandwidth | 400MHz |
| Maximum Search Range | ≥400km |
| Maximum Acquisition Range | General Fighter (4m2): ≥300km, Missile, UAVs (0.1m2): ≥120km |
| Maximum Tracking Range | General Fighter (4m2): ≥250km, Missile, UAVs (0.1m2): ≥100km |
| Effective Tracking Range | General Fighter (4m2): ≥200km, Missile, UAVs (0.1m2): ≥80km |
| Minimum Acquisition Range | ≤10km |
| Minimum Tracking Range | ≤5km |
| Azimuth Search Coverage | 360° @ Antenna Rotating, ±45° @ Antenna locking |
| Elevation Search Coverage | -5°~ +70° |
| Resolution | Range: ≤ 250m, Azimuth: ≤ 2.5°, Elevation: ≤ 2° |
| Tracking Accuracy(1σ) | Range: ≤ 5m, Azimuth: ≤ 0.15°, Elevation: ≤ 0.1° |
| Acquisition Update Time | 12±0.5s@Antenna Rotating, 6±0.5s@Antenna locking |
| Tracking Update Time | (0.1~1s) |
| Target Number | 100 |
| Simultaneous tracking numer | 10 |
| Radar Dimension | 7.92m×3.3m×3.185m @ Marching, 7.92m×4.075m×8.2m @ Combat |
| Radar Weight | 20.8t |
| Azimuthal Rotation Speed | 10rpm (60°/s) |
| Setup & Tear-down time | ≤15min |
| Combat Preparation Time | ≤5min |
| Continuous Operating Time | 6h |
| Service soldiers | 6 members |
Array Antenna System
| Beam width (Antenna Normal Steering) | Azimuth 2.4°(Tx), 2.4°(Rx) Elevation 1.6°(Tx), 1.5°(Rx) |
| Tx Gain | ≥39dB |
| Rx Gain | ≥40dB |
| Pulse Power | ≥55kW |
| Size | 3.2m(W)×5.09m(H) |
IFF Interrogator
| Dimension | 470mm×400mm×400mm |
| Weight | 35 ± 0.5kg |
| Operating Mode | Normal Mode: Mode 1, 2, 3/A, C, Secure Mode: Mode 4, 5 |
| Tx Frequency | 1030 ± 0.2MHz |
| Peak Power | 2kW ± 1dB (2 channels) |
| Rx Frequency | 1090 ± 0.5MHz |
| Dynamic range | ≥60dB |
| Surveillance Range | ≥300km |
| Azimuth Accuracy | ≤0.5° (at all azimuth angles) |
| Range Accuracy | ≤100m |
| Range Resolution | ≤200m |
IFF Phased Array Antenna
| Frequency | 1020~1100MHz |
| Polarization | Vertical |
| Antenna Gain | ≥16dBi(Azimuth:0°), ≥45dBi (Azimuth:45°) |
| Azimuth Beam Scan Range | -45°~ +45° |
| Effective Azimuth Beam Width | ≤ 8°@Azimuth 0°, ≤10°@Azimuth 45° |
| Elevation Beam Width | (3dB) 55±5° |
| Sidelobes | ≤15dB (at all azimuth angles) |
| Size | 2124mm×360mm×150mm |
| Weight | ≤70kg |
