GR-150 HF Manpack Radio

Frequency Hopping, Digital Secure EPM, Software Defined Radio

Frequency Hopping, Digital Secure EPM, Software Defined Radio
ship
vehicle
camp
manpack

[Key Features]

■1.6~30MHz ■CW/voice/data/SMS ■Digital frequency hopping ■MELP1000 ■AES256 digital encryption ■20W RF power ■3G ALE ■NVIS antenna compatible ■VHF-HF relay function ■Remote control function (2Km) ■Wireless fill-gun (OTAR) ■Built-in GPS ■Advanced calling modes

Glocom-equipped soldier & vehicle

The GR-150 is a rugged fully featured tactical transceiver solution delivering reliable field deployable communications with unparalleled value. ■[Lightweight and Compact Design]-Using the latest lightweight alloys the GR-150 weight 4kg(4.9kg with 11Ah/12V, Li-Ion battery pack). Its small physical size makes it comfortable to wear and operate when deployed as a tactical manpack. Designed for the harshest field environments, the GR-150 complies with MIL-STD-810G and is fully immersible to a depth of 1 meter ■[Advanced calling feature]- The GR-150 radio supports advanced selective calling, banish calling, automatic mode exchange, 5 digit SMS, Beacon, GPS tracking which are included as standard ■[Remote control]-The GR-150 radio has full operation access to the radio with remote control unit up to 2Km. ■[Enhanced DSP noise reduction]-MELP1000 vocoder system provides outstanding voice quality by reducing radio frequency interference (RFI), and the effects of electrical interference by enhancing audio signals to provide easier listing. The level of noise reduction can be easily selected to suit prevailing conditions. ■[Automatic antenna tuner]-Whips and untuned wire antennas are simply deployed using the inbuilt, fully automatic antenna tuner. For temporary fixed station and tunable tactical antennas are available. ■[Intuitive operation]- Glocom’s well known intuitive operator interface ensures that operating the GR-150 very simple. Principal key functions are performed using a keyboard array mounted on the front panel. The operator is guided by 128x32 LCD graphics display. The display has adjustable backlighting, allowing maintenance of night vision or high levels of luminescence in poor visibility. Network station addresses and radio numbers are stored

in easily accessible address books and as little as two key strokes will initiate a call. ■[Extended operation time]-The low current consumption of the GR-150 radio enables it to operate for over 20 hours on one battery pack. Spare quick change battery packs are small and lightweight. The battery packs contains the charger management system and can be charged when connected to the radio or separately with charger including grid charger, solar charger. ■[Automatice Link Establishment(ALE)]-The GR-150 is available with full MIL-STD-188B ALE. When selected, the radio searches and selects the best channels. ■[Digital Encryption and scrambling]-The GR-150 can be fitted with a variety of scrambling and digital encryption functions for voice and data security. The GR-150 includes secure calling(an innovative narrow band voice scrambler providing secure point to point or point to multipoint communication), AES 256 bit digital encryption assuring secure voice and data operation ■[Frequency Hopping]-The unique, easy to use frequency hopping function requires no central synchronization station, has short entry or late entry time delay and requires no hopping handshakes. Hopping rate of 10 hops per second, using 25 digit hopping encryption key, and user selectable hopping bandwidth to suit the antenna type in use, the system provides excellent protection against Electronic Warfare (EW) attacks. ■[Modem]-The GR-150 fitted with STANAG 5066 internal data modems supporting high speed data and email transmission, with effective data rates up to 4800bps. Data modems are supplied with PC software which provides email, file transfer and short text message functions.

[Operation Mode]

■[Clear mode]-CW, voice, SMS ■[Secure mode]-CW, encrypted digital voice/data, SMS ■[FH mode]-CW, encrypted digital voice/ dada, SMS

General Specifications

Frequency Range1.6~30MHz
Fine Tuning10Hz
Preset Channels100 channels
ModulationSSB, AME, BPSK, QPSK
Data Rate110~4800bps
TRANSEC(FH)10hps (Digital Frequency Hopping)
COMSEC (Encryption)AES256, customized algorithm
VocoderMELP 1000
Link EstablishmentMIL-STD-188-141B 3G ALE
Frequency Stability± 1ppm
RF Impedance50Ω
Power Supply10~15VDC, Over-voltage, polarity protection
Data InterfaceRS-232C, Bluetooth
Remote ControlPC, Tablet (Android), RCU
ProgrammingPC, wireless fill-gun (OTAR), KB
Dimension230mm x 90mm x 230mm
Weight≤4Kg (4.9Kg with battery)

Receiver

Sensitivity-113dBm @ 10dB SINAD
Image & IF Rejection≥85dB
Adjacent Channel Rejection≥45dB
Non-Linear Distortion≤5%

Transmitter

RF power100mW~20W
Harmonic Suppression≥50dBc
Spurious Outputs≤-60dBc typical

Environment

Operating Temperature-30ºC~+60ºC
Storage Temperature-50ºC~+70ºC
Humidity95%

GR-150/GR-150VH Available options

  • GA-11ATactical headset
  • GA-113AHF 20m x 2 dipole antenna
  • GA-21AClone cable
  • GA-121ACW key
  • GA-31DLi-Ion battery pack(2pcs)
  • GA-32DBattery charger
  • GA-122ARucksack
  • GA-153ARemote control unit
  • GA-40AExternal speaker with cable
  • GA-33A100W power supply unit
  • GA-34A320W power supply unit
  • GA-114ANVIS roof rack antenna
  • GR-101C10-ITKMobile installation kit
  • GS-930ITCCS software

GR-150 HF Manpack Radio Set

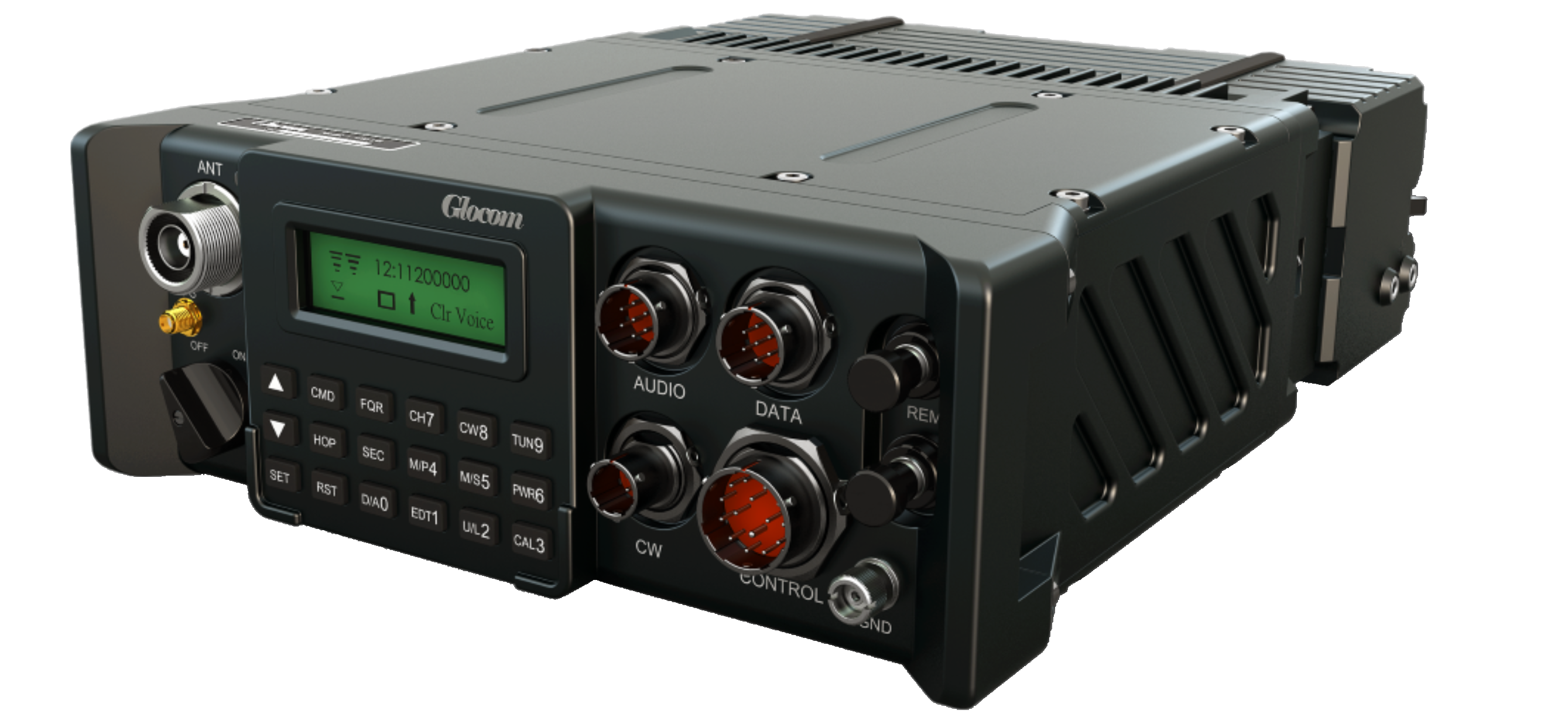

GR-150 Radio

The Glocom GR-150 HF manpack radio set is ideal for extended portable field operations providing the tactical user with effective, secure and comprehensive communications with remote sited command locations. It includes all necessary handset, headset, antennas, batteries and others. The standard set comprises:-

  • GR-150EHF manpack radio
  • GA-10AOfficer handset
  • GA-111AHF 2.4m whip antenna
  • GA-112AHF 15m line antenna
  • A611-GA02Handheld/manpack GPS antenna
  • A8100-GK25Ground stake kit
  • GA-31DLi-Ion battery pack(2pcs)
  • GA-32DBattery charger with cable
  • GA-131AUser manual

GR-150 HF Mobile Set

GR-150 HF Mobile Set
GR-150 HF Mobile Set
GR-150 HF Mobile Set

The Glocom GR-150 HF mobile set upgrades the GR-150 by providing a convenient vehicle installation kit and transmitter power amplification to 100W PEP. With options for power supply system and the flexibility of dismounted use of GR-150 radio when not in the vehicle (additional accessories may be required), the GR-150VH HF mobile set can be installed in a wide range of vehicle types with antenna options to suit. The standard set comprises:-

  • GR-150EHF manpack radio
  • GA-10AOfficer handset
  • GA-111AHF 2.4m whip antenna
  • GA-112AHF 15m line antenna
  • GA-113AHF 20m x 2 dipole antenna
  • GA-115AHF 4.2m mobile antenna
  • GA-50AMobile GPS antenna
  • GA-131AUser manual
  • GR-151CHF 100W amplifier with cables
  • GR-152CHF 100W ATU with cables
