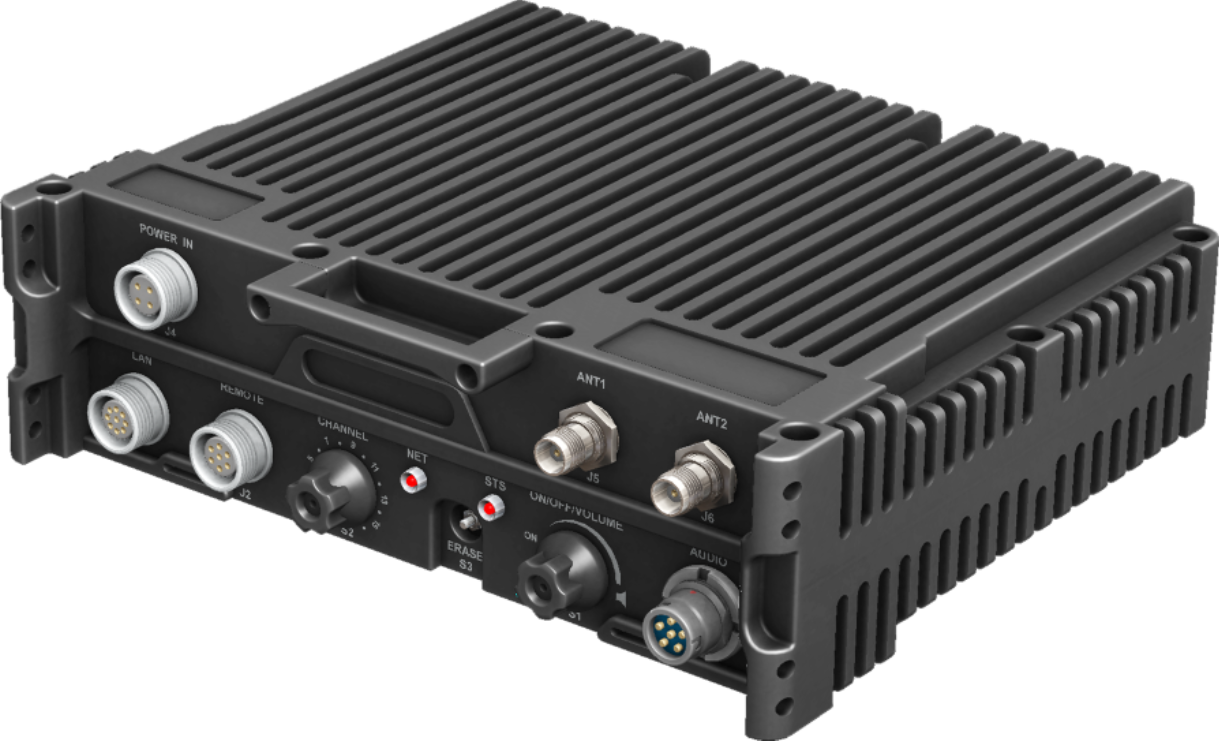

GR-8520VU High Capacity Data Radio (HCDR)

Tactical networking IP radio delivering ultra-high data rates
camp vehicle ship

Tactical Networking IP Radio Delivering Ultra-High Data Rates!

The Glocom GR-8520VU VHF/UHF High Capacity Data Radio (HCDR) provides ultra-high data rates of up to 5.5Mbps for the transmission of high-resolution voice, video and embedded Blue Force Tracking (BFT) over a truly decentralized mobile ad-hoc network (MANET).

With frequency coverage from 225MHz to 450MHz, the HCDR offers a modular range of configurations geared to match the specific operational requirements of any mission, including vehicle configurations, as well as both airborne and marine radio sets. Featuring an SDR design that supports various waveforms, the HCDR’s wireless resources are dynamically utilized between the network members, providing end-to-end IP connectivity for voice, video and data.

Modern warfare - With its small form-factor, ultra-high bandwidth and advanced capabilities, the HCDR serves as the backbone for secure data network and Ethernet services in the modern battlefield. The solution is ideal for deployed and maneuvering tactical platforms throughout multiple echelons, from brigade level to platoon level.

Vast data distribution - As requirements for data dissemination continue to rise, the HCDR has emerged as a powerful C4I enabler, with capabilities for voice, BFT, IP data and live multicast video. The HCDR expedites military missions by ensuring agile and secured MANET without hindering tactical operations.

Network-centric communications - The HCDR employs advanced algorithms and ultra-high bandwidth to maximize performance throughout the 150-member network.

Video and voice streaming

  • Supports video/data and voice simultaneously
  • Supports highly effective transmission of high definition live video
  • Multiple simultaneous CNR-like PTT driven 4 voice groups
  • Multi-hop capabilities for all services


  • Up to 150 members
  • Implements a fully decentralized IP MANET, delivering CNR-like voice, IP data and video to the network
  • Fully automated self-forming, self-healing network
  • No single point of failure
  • Built-in GPS with automatic position reporting
  • Automatic reply formations for effective multi-hop voice, data and video communications
  • Smart data link: link establishment and maintenance is made possible by manipulating both transmission power and modulations as per data type

One size fits all applications

  • Highly scalable and adaptable waveform and intended to service various echelons and various tactical applications
  • Adaptive modulation and power capability
  • Versatile channel bandwidth support
  • Compatible with GR radios
  • Mitigates and converses voice and data traffic of multiple tactical VHF networks with UHF networks in a seamless manner
  • Data links “Plug and play” backhauling function (with or without directional antennas for additional range)
  • QOS support via IP TOS/DSCP
  • Tactical broadband internet supports standard internet protocols (TCP/IPv4, SNMP, HTTP, DHCP, RIP)

General Specifications

Frequency Band225~450MHz
Channel Bandwidth5MHz
Net Preset16 channel
Output PowerAdaptive transmission power-up to 20W
WaveformsOFDM, DSSS
VoicePTT activated CNR
Full duplex conference communications with up to 4 simultaneous speakers
VoIP support
Media Access MethodCSMA/CA
Power supply27VDC(22V~32VDC)
NetworkingMobile Ad-Hoc (self-forming, self-healing) Supporting Unicast and Broadcast
Network SizeUp to 150 members
Relay SupportAutomatic relay formation
Up to 6 hops for CNR voice, IP data and video
Video multicasting forwarding
Location ReportBuilt-in GPS with automatic position report
InterfaceEthernet, RS-232C, audio
User Data RateUp to 5.5Mbps
Standard IP Protocol SupportTCP/IPv4, SNMP, HTTP, DHCP, RIP
Quality of ServiceStandard IP TOS/DSCP
EncryptionAES 256
Jamming ImmunityDSSS

GR-8520VU Mobile Set

The Glocom GR-8520VU HCDR set is ideal for backbone for secure data network and Ethernet service in the modern battlefield. The solution is ideal for deployed and maneuvering tactical platforms throughout multiple echelons, from brigade level down to platoon level. It includes all necessary handset, antennas and cables. The standard set includes:-

  • GR-8520VUHigh Capacity Data Radio (HCDR)
  • A8100-OH10Officer Handset
  • GA-310-AT-03Mobile Antenna
  • A8520-WA10-C3MAntenna Cable
  • A8520-EC3MEthernet Cable
  • A8520-PC2MPower Cable
  • A8520-UM10User Manual


  • A8520-KD10Keypad Display Unit
  • A8520-CC1MControl Cable (RS-232C)
  • A8100-TH11Tactical Headset
  • A8100-SM13Speaker Microphone
  • A8520-YA10Yagi Antenna
  • A8520-YA10-C3MAntenna Cable
  • A8520-AD10Adaptor for Mobile Installation
  • A8100-IK10Installation Kit
  • A8100-PS300Power Supply Unit
  • CF-53Panasonic Rugged PC
  • A8520-LH12/5Ethernet Switching Hub

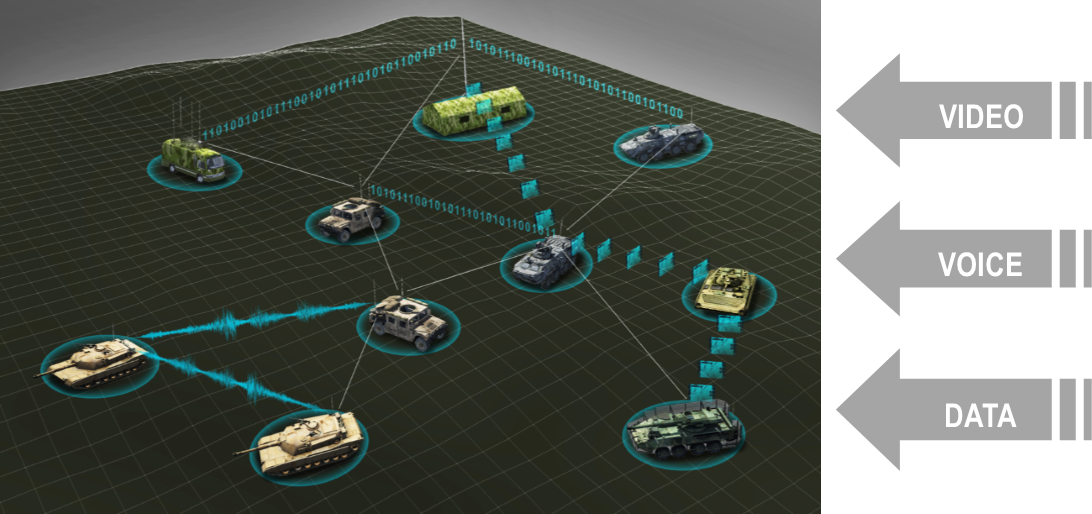

Intelligent, Self-managing, Mobile, Ad-Hoc networking

Ad-hoc network

Officer Handset(A8100-OH10)

The officer handset is a high-grade, lightweight MIL handset for use with the Glocom tactical radio systems. One handset is supplied with each radio.


GA-310-AT-03 Mobile Antenna

This is 100MHz~400MHz whip antenna. The antenna is composed of three parts: antenna base, vibration absorbing device, antenna sections. It can be equipped with GR-310/350/510/520 radio sets.

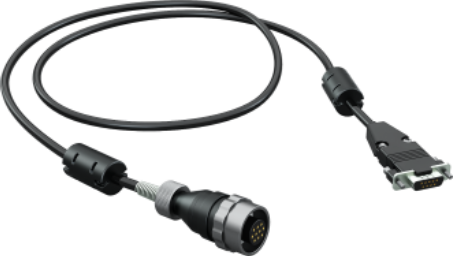

Data Cable(A8520-DC1M)

This is RS-232C data communication cable for GR 8000 series radios. It is used for data communication, radio programming and radio control by computer etc.

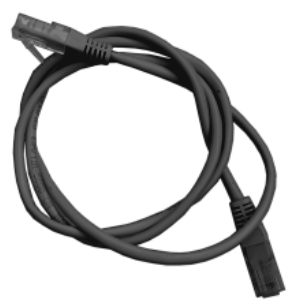

Ethernet Cable(A8520-EC3M)

This cable is the Ethernet cable to connect radio and Ethernet port or network hub. 3m


User Manual(A8520-UM10)

This is a field reference user manual for GR-8520VU radio system.

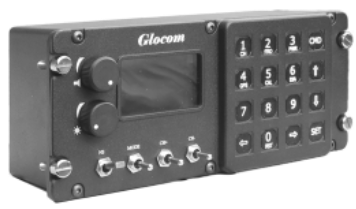

Keypad Display Unit(A8520-KD10)

This is keypad display unit for GR-8520. It can control GR-8520 up to 30m remotely. Radio and keypad display unit is connected with twist-pair cable. It is easy to install in tunnel, mobile and ship.


Tactical Headset(A8100-TH11)

Tactical headset adopts structure of head ring soft strap, it is audio terminal. It has the features of small in dimension, light in weight, good water proof performance, high environment adaptability.

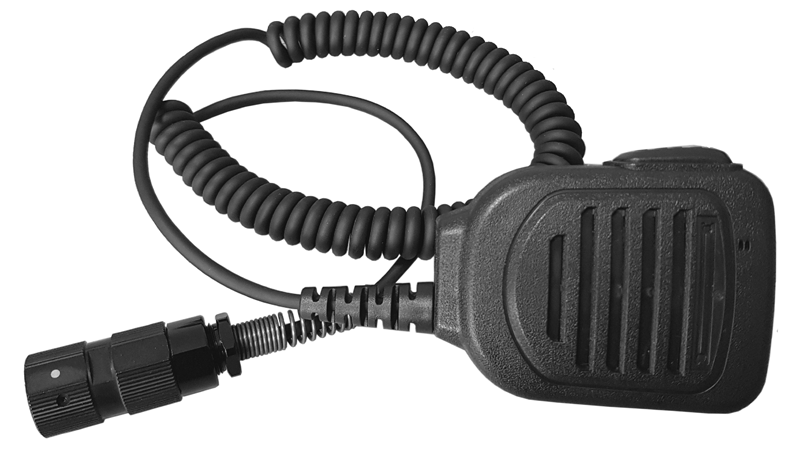

Speaker Microphone(A8100-SM13)

This speaker microphone amplifies radio audio output for manpack, vehicular and base station applications. It can be connected to audio jack on manpack radio.


Yagi Antenna(A8520-YA10)

This is Yagi antenna to install on stationary system. It supports high gain communication. It is light weight, endurable for corrosion. Frequency ramge:225~450MHz

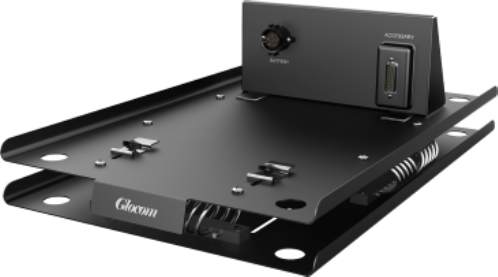

Adaptor for Mobile Set(A8100-AD10)

This adaptor is shock mount for 20W manpack radio and 100W mobile system which secures manpack and mobile system by DC generated and by the installation vehicle.


Installation Kit(A8100-IK10)

This is a set of mobile installation kit. It can be used to install GR series radio system into various kind of vehicles, ships or stationary. It is very simple to install or uninstall on the vehicles.


Power Supply Unit(A8100-PS300)

This is 320W AC-DC/DC-DC converter to supply power into GR-series mobile radio system. It supports very high efficiency, over-voltage protection, polarity protection.

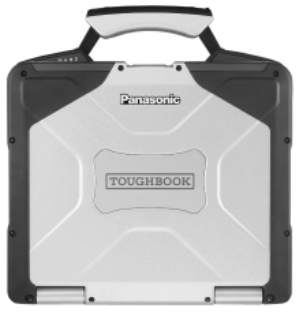

CF-53 Panasonic rugged PC

13” LED display, sun-light viewable, multi-touch, magnesium alloy case, drop and spill resistant, Intel CPU, LAN/232C/USB/Bluetooth

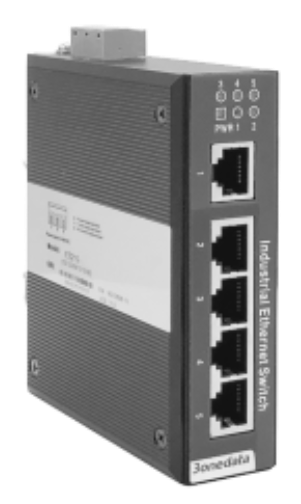

Ethernet Switching Hub(A8520-LH12/5)

Provides a central connection in an Ethernet network in which each connected device has its own dedicated link with full bandwidth.


Setup/Control Application(A8520-AP10)

This software application allows user to enter frequency, mode, encryption code, network information and other parameters into a Windows-based computer program and save it to a file.

Configuration of GR-8520VU Mobile Set

Mobile Systems
