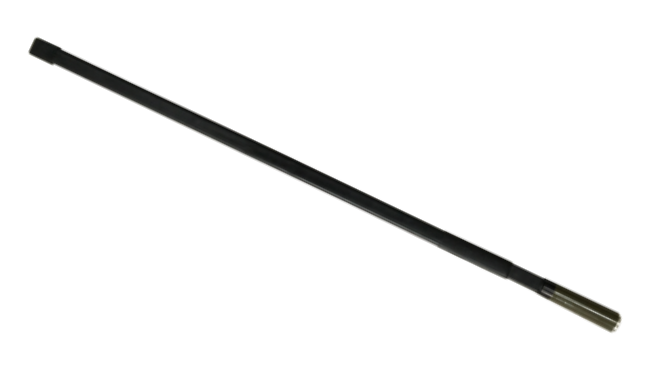

Whip Antenna(A8600-WA01)
30~512MHz Whip handheld antenna, 10W, TNC, 50Ohm, VSWR <4, Gain:-5~-25dBi, 450mm, 0.15Kg

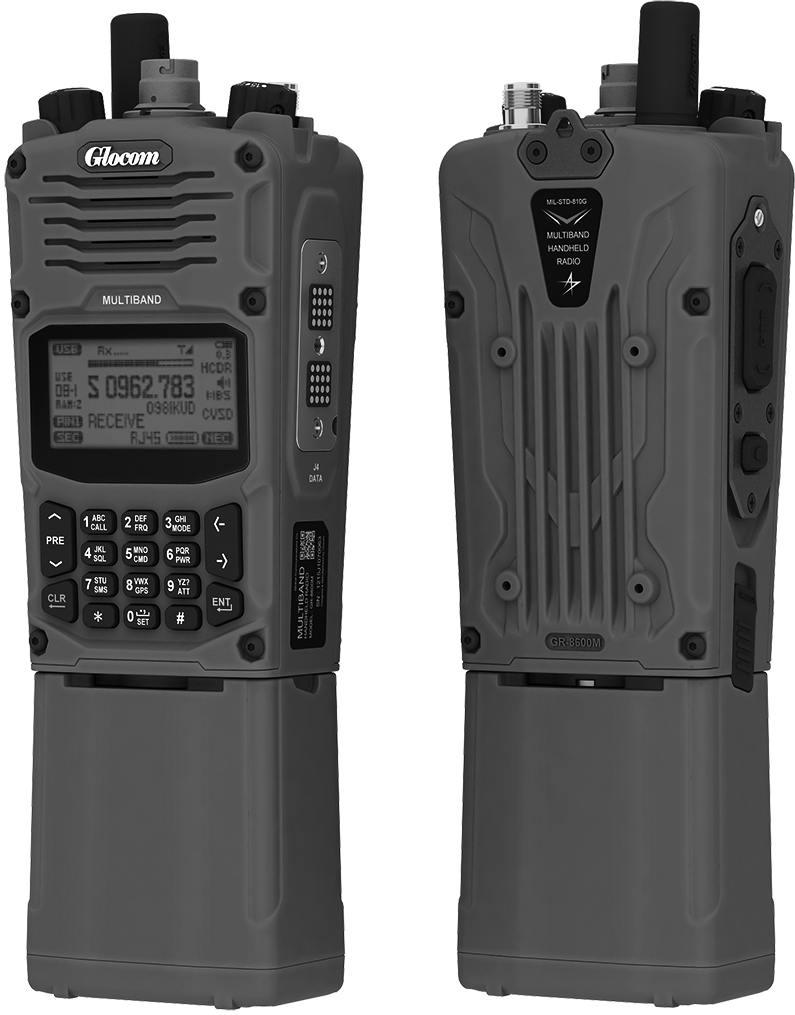

GR-8600M
Multiband Handheld Radio
Multiband, Multifunction, Multi-mission and Multi-role Handheld Radio!
Key Benefits
The Glocom GR-8600M multiband handheld radio provides secure voice and high speed networked data in a highly portable form factor. The narrow band LOS, frequency hopping and the optional SATCOM capabilities ensure highly reliable communications for the severe conditions of tactical operations.
Providing situational awareness and data on demand, the GR-8600M seamlessly links dismounted and upper-echelon networks. Even in challenging urban and tactical environments, is can easily transmit mission-critical voice, data, imagery and video—and provide dismounted operators with access to real-time intelligence for increased situation awareness and faster decision-making.
Covering 30 to 512MHz frequency range—with 5W transmit power—support next-generation networking waveforms as well as UHF SATCOM and frequency hopping waveform with protected narrowband voice and data from hostile interference.
Built-in AES provides high-grade security for all transmission using a 256-bit key. The encryption algorithm can be customized by customer’s requirement.
With compact handheld form factor, the GR-8600M continues to support currently fielded accessories, and also supports interoperability with Glocom GR-310 VHF/UHF manpack radio—enabling seamless, enhanced connectivity in the hands for modern warfighters.
General Specifications
| Frequency Range | 30~512MHz SATCOM: Rx 243~270MHz, Tx 291~318MHz |
| Channel Spacing/BW | NB:8.33, 12.5, 25kHz-AM, 25kHz-FM FM deviation: 5KHz, 6.5KHz, 8kHz SATCOM: 5kHz WB:1.2MHz |
| Net Presets | 100, fully programmable system presets |
| GPS | Built-in |
| Management Tool | Windows/Android Setup/control Application |
| Frequency Tuning | Front panel: 100Hz |
| Encryption | AES 256 or customized algorithm |
| Vocoder | MELP 2400, CVSD |
| Emission Mode | FM/AM analog voice, FSK MELP/CVSD voice, FSK/PSK data, ECCM |
Transmitter
| RF Power | 0.3, 1, 5Watts |
| Harmonic Suppression | ≥40dBc typical |
| Frequency Stability | ±1ppm |
Receiver
| Sensitivity | LOS FM: 30-512MHz; -113dBm@12dB SINAD LOS AM: 90-512MHz; -103dBm@10dB SINAD with 30% modulation SATCOM: 243-270MHz; -120dBm@10dB SINAD |
| Adjacent Channel Rejection | ≥ –40dB |
| Squelch | Selectable tone, noise |
Power
| Power Input | 9.6~14VDC |
| Power Consumption | ≤3A@11.1VDC(≤43W@10.8VDC) |
Interfaces
| External Data | Bluetooth, Ethernet, RS-232C |
| Audio | Standard 6-pin ADF |
| Data | 32-pin pogo pin side connector |
| Antenna Port | 50Ω TNC (Female) |
| Programming | Ethernet |
| Function Knob | Off/Volume, 1-16 Presets |
| Remote Control | IP, RS-232C |
Physical & Environment
| Shock & vibration | MIL-STD-810G |
| Immersion | 2m of water for 30 minutes |
| Operating Temperature | -30~60ºC |
| Storage Temperature | -30~70ºC |
| San/Dust/Salt/Fog/Rain | MIL-STD-810F |
| Dimension | 261x85x60mm |
| Weight | ≤1Kg with battery |
| Color | Black |
GR-8600M Multiband Handheld Radio

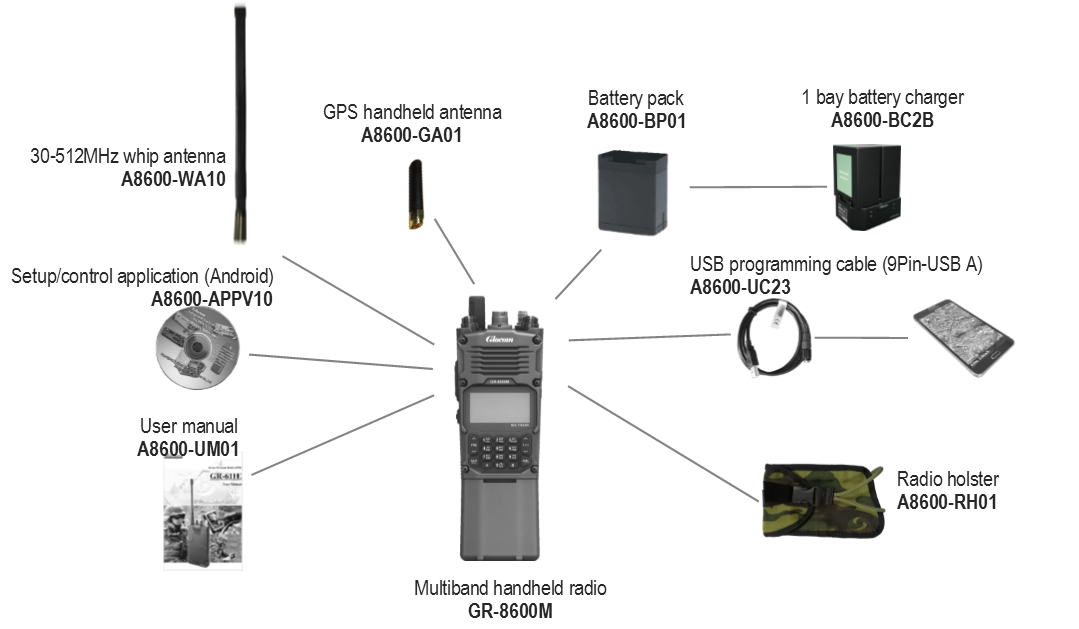

The Glocom GR-8600M multiband handheld radio is ideal for extended handheld field operations providing the tactical user with effective, secure and comprehensive communications with remote sited command locations. It includes all necessary accessories like antennas, battery and battery charger. The standard set includes the following items:

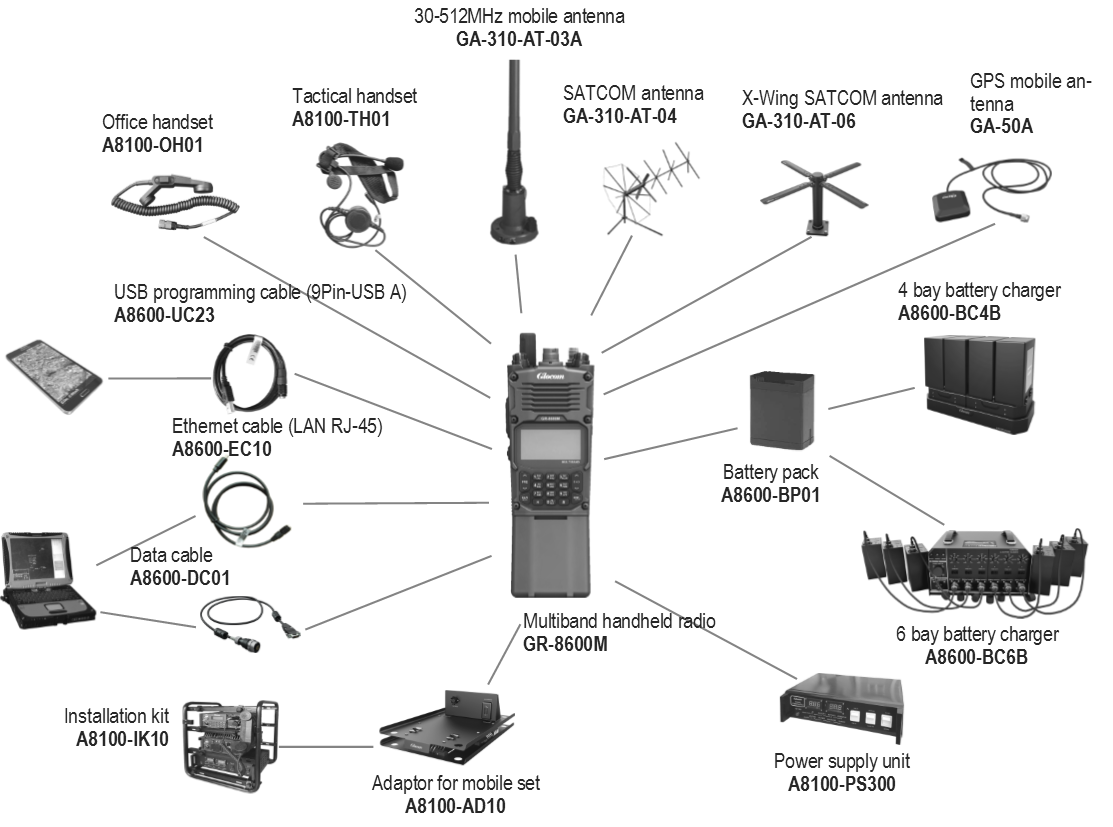

Options for GR-8600M
30~512MHz Whip handheld antenna, 10W, TNC, 50Ohm, VSWR <4, Gain:-5~-25dBi, 450mm, 0.15Kg
A removable passive antenna. Center Frequency: 1575.42± 1.023MHz, Bandwidth: 10MHz min, Gain at Zenith: 5.0dBic typ, Gain at 10° elevation: -1.0dBic min, Polarization: R.H.C.P, Axial Ratio: 1.0dB typ.
The battery pack is a very high-capacity, rechargeable, Li-Ion battery. Use with A8600-BC1B/4B/6B battery charger system.

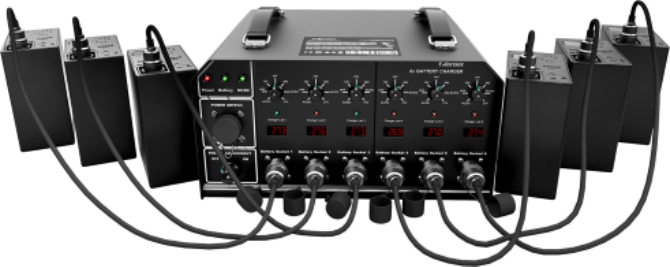

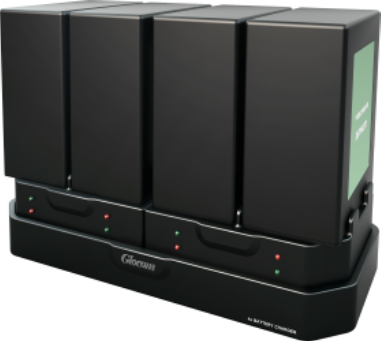

Compatible with A8600-BP01 Li-Ion battery, Charging time:6 hours, Input:100~240VAC/0.45A
The officer handset is a high-grade, lightweight MIL handset for use with the Glocom tactical radio systems. One handset is supplied with each radio.
Tactical headset adopts structure of head ring soft strap, it is audio terminal. It has the features of small in dimension, light in weight, good water proof performance, high environment adaptability.
This is 30MHz~512MHz whip antenna. The antenna is composed of three parts: antenna base, vibration absorbing device, antenna sections. It can be equipped with GR-310/350/510/520 radio sets.
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting or screw mounting. It's useful for mobile application with GR series radios.
The antenna(240MHz~400MHz) is a rapid deploy, high gain, crossed yagi antenna for SATCOM communications. Deployment time is less than one minute.
The X-WING SATCOM antenna (240MHz~400MHz) allows bolt on for permanent installation onto vehicles, shelters and other metal objects.

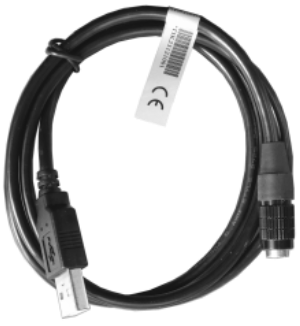

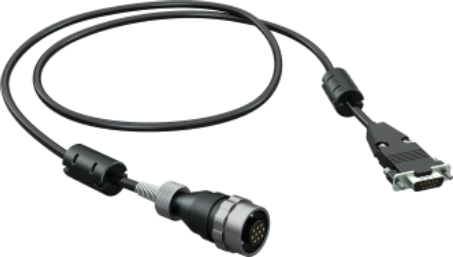

This is RS-232/422 data communication cable for GR-8600 radio. It is used for data communication, radio programming and radio control by computer etc.
This is RS-232/422 data communication cable for GR-8600 radio. It is used for data communication, radio programming and radio control by computer etc.
This is a rucksack for GR series manpack radio system. It is very convenience for soldier to carry radio with all accessories. It can keep antenna, batteries, handset, headset etc…
