L-band transceiver (GA-8810LT)
L-band transceiver modulates and transmits user’s voice and data, demodulates the received signal and output with voice and data format.
Glocom’s advanced technology provides security and mobility to satellite communications
Key Features
General Specifications
| Frequency Band | Tx: | 14~14.5 GHz (Standard Ku-band), 13.75~14.5 GHz (Universal Ku-band, optional) |
| Rx: | 12.25~12.75 GHz, 10.95~11.7 GHz or 11.7~12.25 GHz (optional) | |
| Available Channels | 1000 or more | |
| Tx Power | 8W | |
| Communication Mode | Full - Duplex | |
| ECCM | FHSS (4000hps), DSSS | |
| Encryption | AES256 | |
Antenna
| Reflector Diameter | 0.75m equivalent (Physical length: 0.9m Max) |
| Travel Range | Elevation Travel: 0~90º, Azimuth Travel: ±60º, Polarization Travel: ±90º |
| Weight | 9kg |
Transceiver
| Dimension | 220(W) x 395(L) x 90(H)mm (with battery) |
| Weight | 4.9kg (with battery) |
| Power Supply | 19~33VDC |
| Protection | Polarity, Over-voltage |
| Data Interfaces | RS-232C, RS-422, Ethernet, Telephone |
Environment
| Test Method | MIL-STD-810G |
| Vibration | Ground tactical |
| Immersion | 1m |
| Temperature | -30~60ºC |
Part of the Glocom radio family, the GR-8810Ku SATCOM terminal provides satellite secure communication (SATCOM) using Ku-band GEO satellites.
GR-8810Ku is a lightweight Satellite terminal, specifically designed for the need of a dismounted soldier or troops. The compact structure and sophisticated design facilitate operation in the tactical environment. The radio’s LPI/LPD – Low Probability of Interception / Low Probability of Detection is achieved by using Direct Sequence Spread Spectrum modulation, making this terminal both secure and immune. The terminal facilitates seamless communication across any geographic location, and in any terrain type, while supporting various military scenarios.
The lightweight four-segment carbon fiber man-portable antenna and easily configurable RF section make this terminal for worldwide operations with military and commercial satellites.
GR-8810Ku Ku-band SATCOM Terminal Set
The standard set includes:
Options for GR-8810Ku
(1) - The batteries are for sale in market worldwide.
(2) - The telephones are for sale in market worldwide.
(3) - The Rugged PCs are for sale in market worldwide.

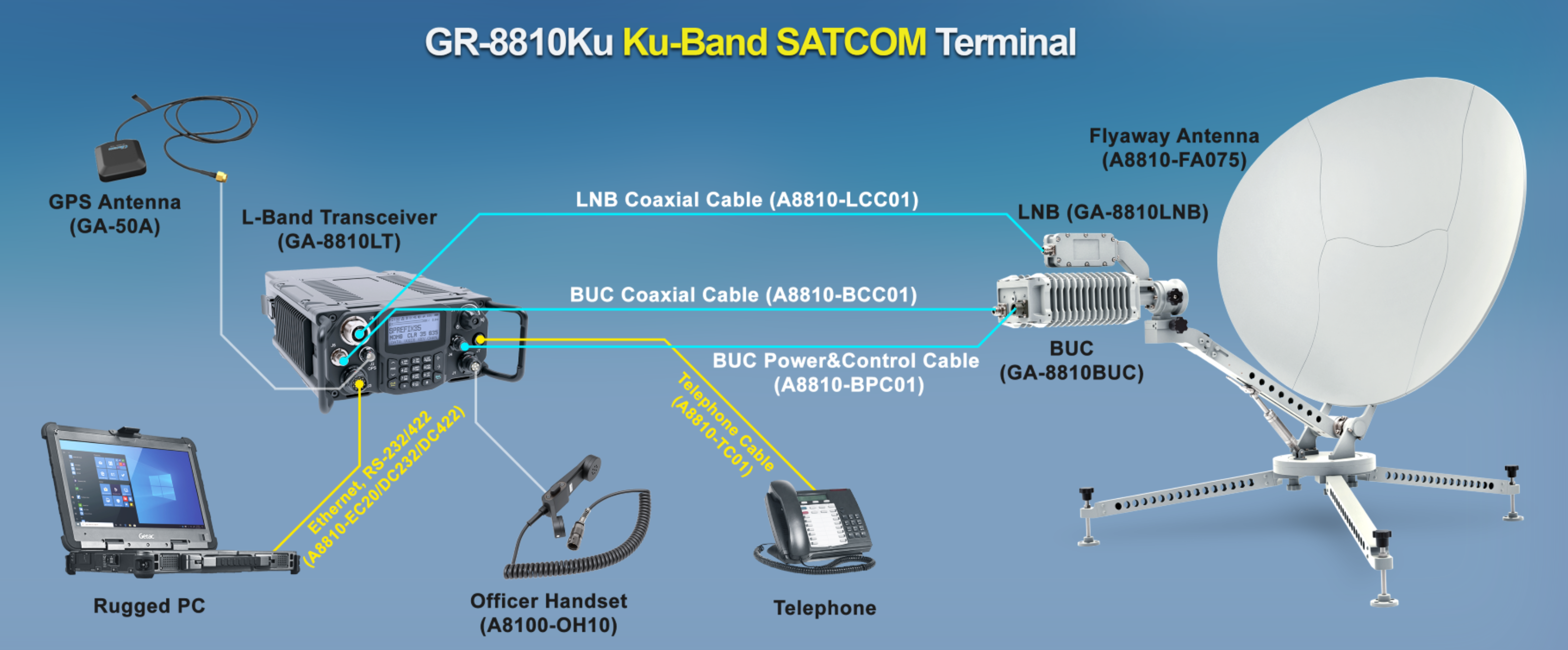

Configuration of GR-8810Ku Ku-band SATCOM Terminal Set

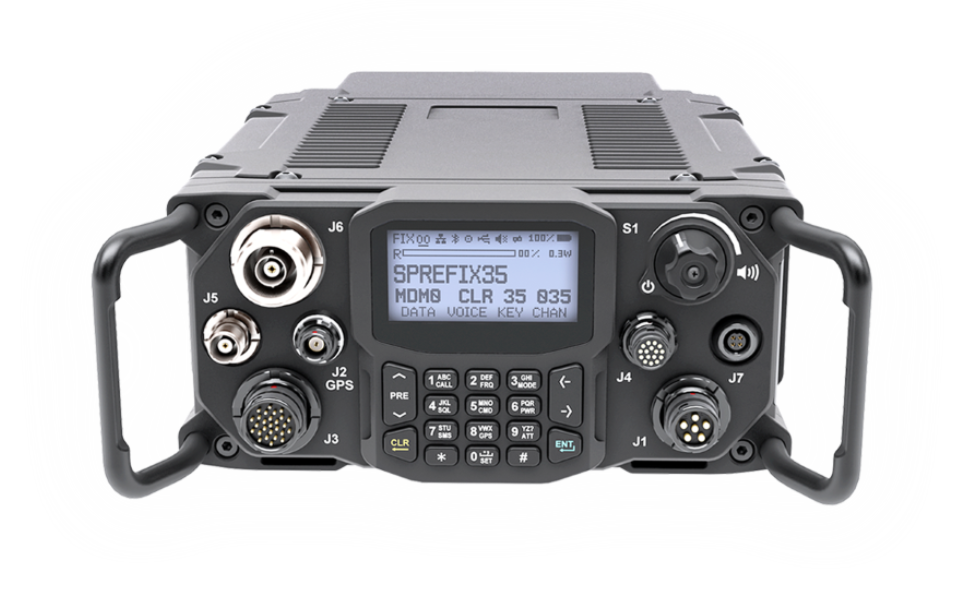

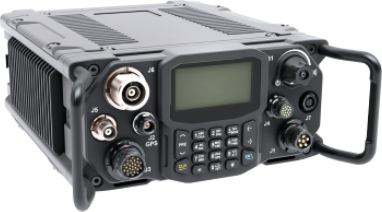

L-band transceiver modulates and transmits user’s voice and data, demodulates the received signal and output with voice and data format.

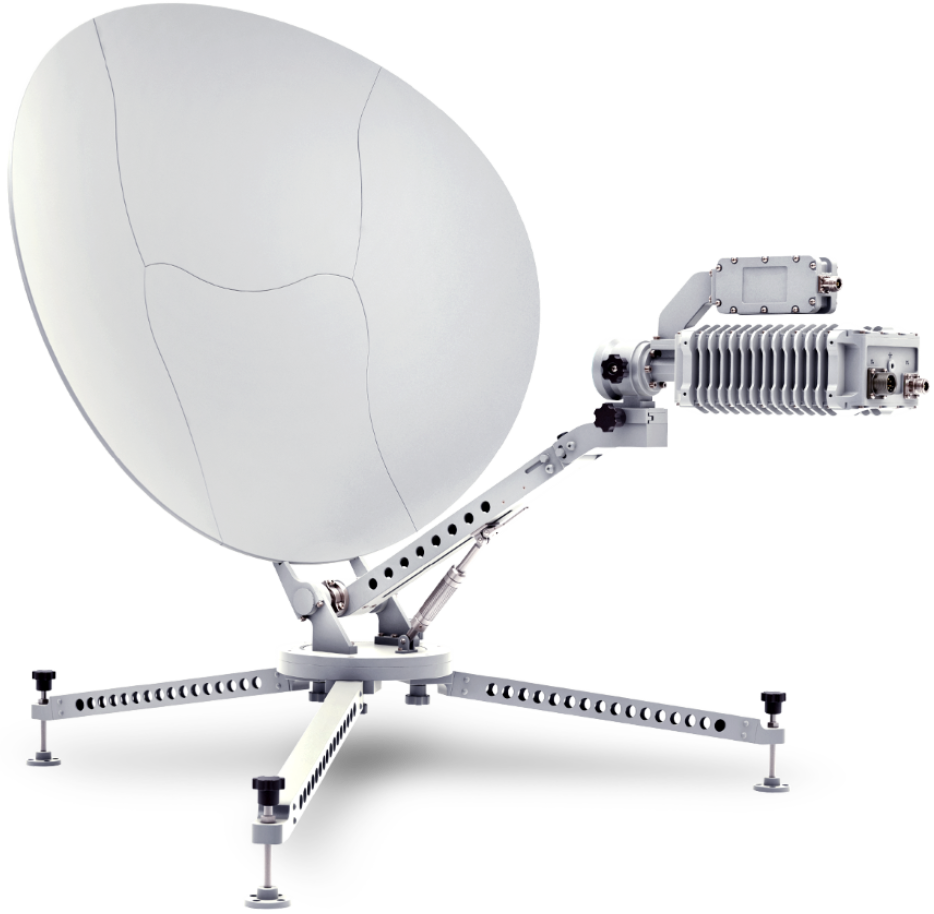

0.75m flyaway antenna is specially designed for highly portable antenna by adopting carbon fiber material with light weight and can be assembled in less than 5 minutes by one person.

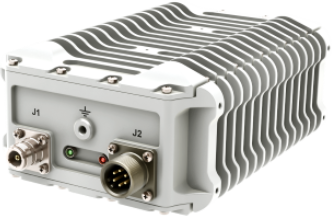

8W BUC upconverts the signal from L-band transceiver to the Ku-band and amplifies to 8W power level.
LNB amplifies the Ku-band signal received from the satellite and downconverts to L-band.
Battery box for BB-2590/U series batteries for GR-8100 manpack radio system. Waterproof and moisture-proof. This battery box is fully compatible with BB-2590/U size battery system.

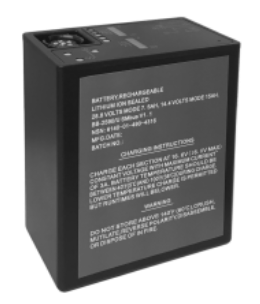

battery with instantaneous start up. (L)127mmX(W)61mmX(H)112mm , 1.3Kg, 14.4 or 28.8VDC
The officer handset is a high-grade, lightweight MIL handset for use with the Glocom tactical radio systems. One handset is supplied with each radio.
This is high gain, low loss, active, extra low current consumption, small size GPS antenna. It supports SMA plug and magnetic mounting. It's useful for mobile application with GR series radios.
This is 1 charger for BB-2590/U. Protection from over-voltage,over-current,over-charge, over-discharge,and reverse charge, 227g, Charge 16.8VDC
This cable is used to connect BUC with L-band transceiver via RS-232C interface and used to supply power to BUC.

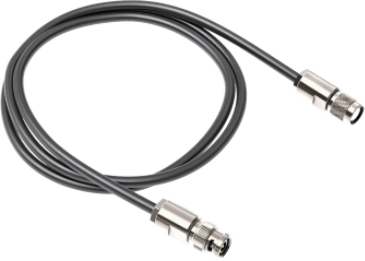

This cable is used to supply 10MHz ref signal and modulated signal to BUC.

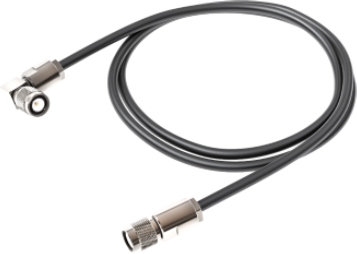

This cable is used to supply 12V power and 10MHz ref signal to LNB. Also it is used to transfer the received signal from LNB to L-band transceiver.
This is a field reference user manual for GR-8150HV radio system.
This is RS-232C data communication cable for GR 8810Ku. It is used for data communication, terminal programming and terminal control by computer etc.
This is RS-422 data communication cable for GR 8810Ku. It is used for data communication, terminal programming and terminal control by computer etc.
This cable is the Ethernet cable to connect terminal and Ethernet port of computer or network hub.
It is used to phone the others by using wired phone service of L-band transceiver like official telephone.
This cable is used to connect telephone to L-band transceiver. Users can ring a person up on the phone by using SATCOM terminal.

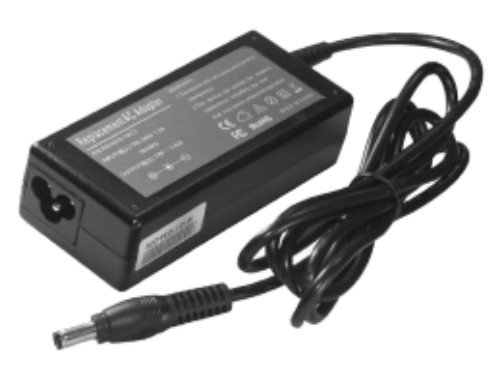

This is 1 charger for BB-2590/U. Protection from over-voltage,over-current,over-charge, over-discharge,and reverse charge, 227g, Charge 16.8VDC

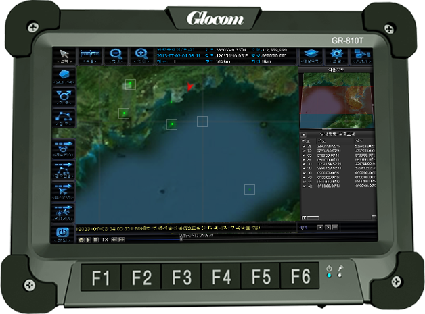

The commercial Notebook PC will be used for setup, control and communication.
Windows-based setup software for GR- 8810Ku.
This is a rucksack for the terminal. It is very convenience for soldier to carry the terminal with all accessories.

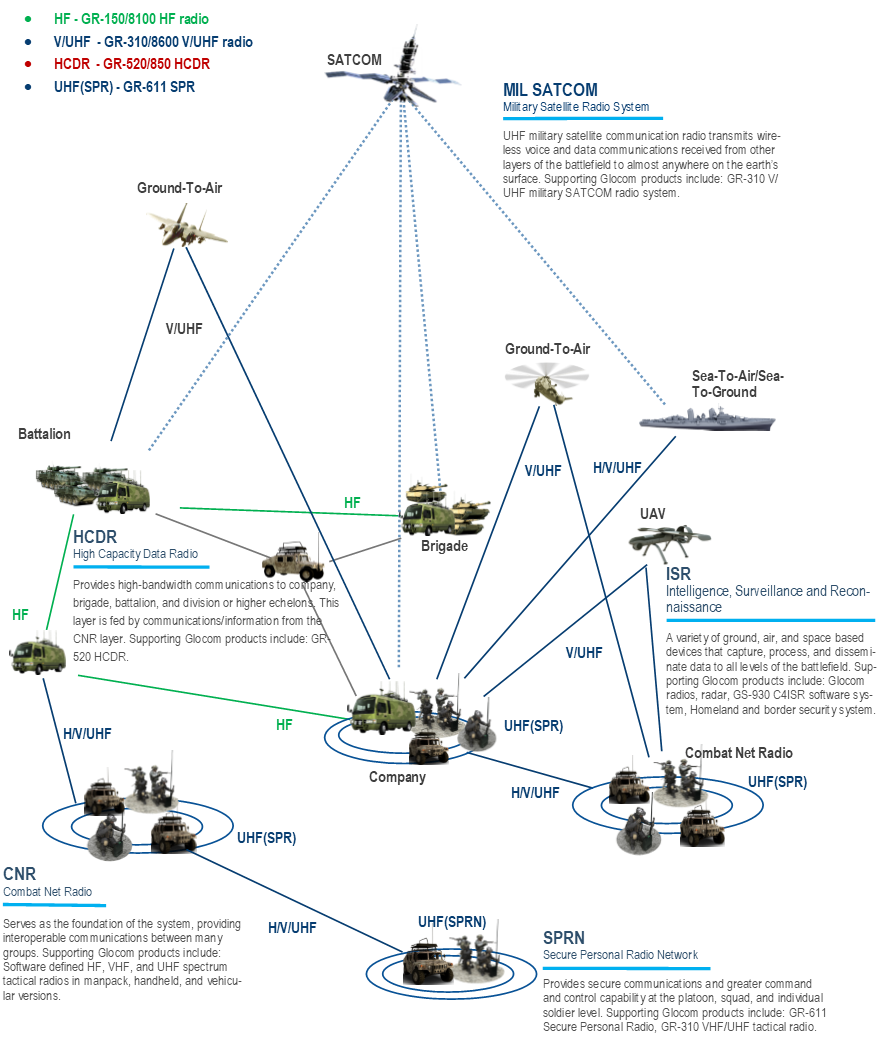

Glocom Battlefield Communications Architecture
