GS-2220 Tank Battlefield Management System
Highly Adaptive, Inexpensive Solution for Vehicle Platform Upgrade
Key Features
■ Easily adaptable to a wide range of conventional tanks ■ Inexpensive solution for upgrade conventional tanks ■ Seamless connectivity in the rugged terrain and noisy environment ■ An integrated Battle Management System, including navigation capability ■ Simultaneous secure voice & data ■ Full interoperability with other forces
Today’s growing worldwide defense, security and safety concerns have created the need for net-centric approaches to counter emerging, non-traditional threats. Forces, systems and platforms must be woven into an interoperable and joint network in order to succeed on the modern battlefield. Glocom’s state of the art C4I solutions create a force multiplier by maximizing combat resource coordination with excellent communication technology.
Glocom has developed the Tank Battlefield Management System, GS-2220, to provide an inexpensive, highly adaptive communications upgrades to conventional tank platform, thus offering customers the cost-effective capabilities to deploy tanks on a networked basis, resulting in maximization of combat force.
GS-2220 enables rapid and accurate execution of the mission together with full command and control capabilities using existing infrastructure.
The GS-2220 builds a battlefield communication network, which enables the tank to receive real-time battlefield information achieved by various equipment deployed in other corps, to transmit their data to other tanks, and makes IFF and situational awareness easier in the combat situation.
According to experts, with this communication network, the tank has 2.5-fold higher fighting capabilities than the others which have not such choice.
Benefits
Incorporated full C4I capabilities into existing infrastructure. The upgrades enable rapid and accurate execution of the mission together with full C4I capabilities.

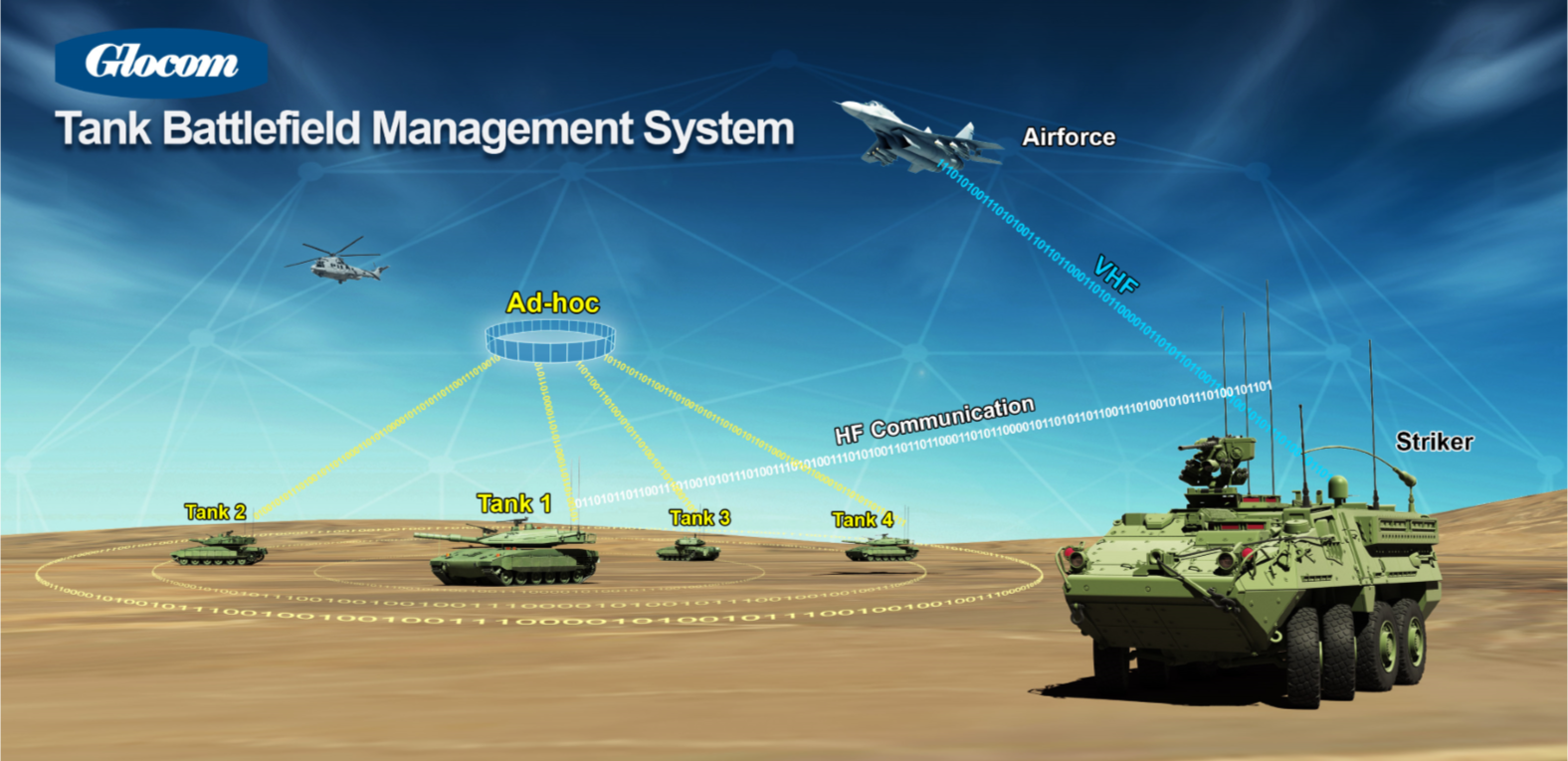

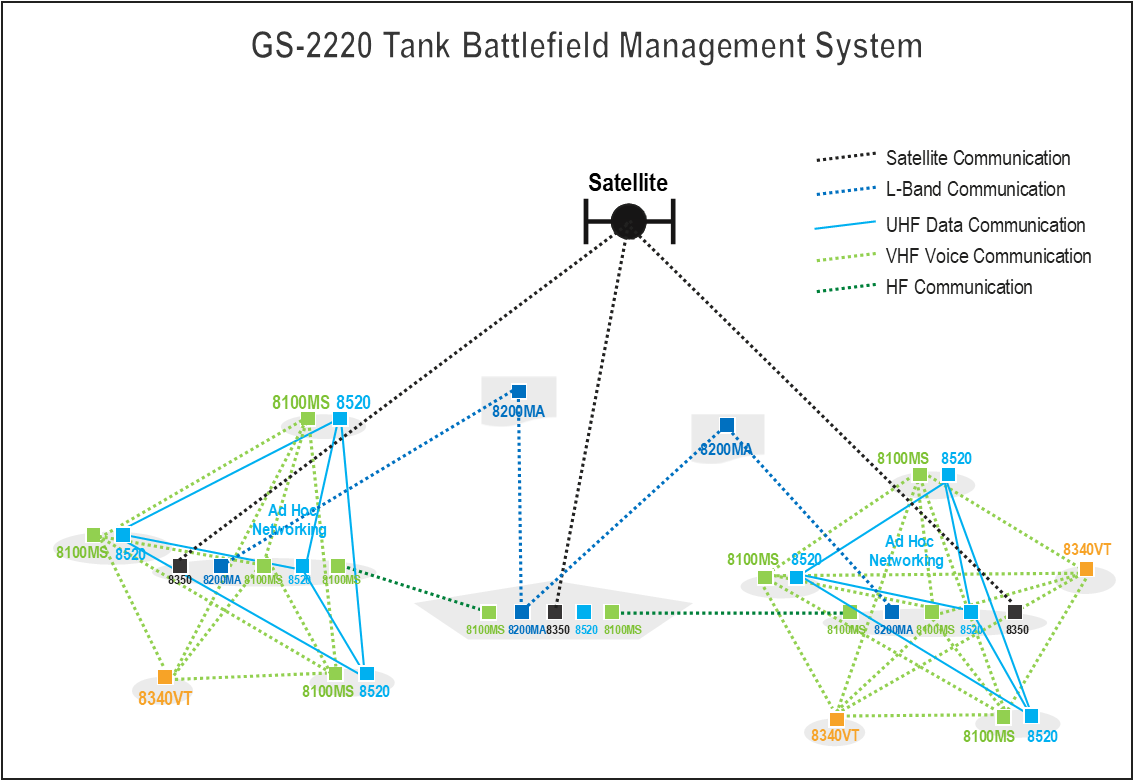

System Overview
GS-2220 Tank Battlefield Management System is specially designed for full C4I capabilities with multiband-HF/VHF/L-Band communication. GS-2220 combines the benefits of GR series radios to support wide variety of waveforms integrated together.
GR-8520VU VHF/UHF High Capacity Data Radio (HCDR) deployed on tanks provides ultra-high data rates and embedded Blue Force Tracking (BFT) over a truly decentralized mobile ad-hoc network (MANET).
GR-8100MS HF/VHF 100W Mobile Radio support 3G ALE with spectrum sensing capability which would allow us to identify the usable portion of an occupied wideband channel. VHF voice communication between tanks is performed by these radios.
The tanks also have a choice to use GR-8340VT VHF Mobile Radio for VHF voice Communication since these radios are interoperable with GR-8100MS. This ensures that no tank is failed to join the team and lost while the combat.
The command tank will use another GR-8100MS radio for HF communication with the headquarters post. Besides, for B-LOS communication, the command tank will always keep a link with headquarters post via SATCOM performed by GR-8350MV VHF/UHF Multiband Vehicular Radio.
While joint operation, GR-8200MA Multiband Airborne Radio enables L-Band Communication between the command tank and airplanes. GR-8200MA fulfills evolving mission needs delivering expanded area command and control, ISR and close combat support.
GS-2220 Tank Battlefield Management System will increasingly expand the combat area with a variety of solution which enhances war-tanks capabilities in battlefield where mission critical communication is vital. This will make your tank superior to your enemy in the battlefield.

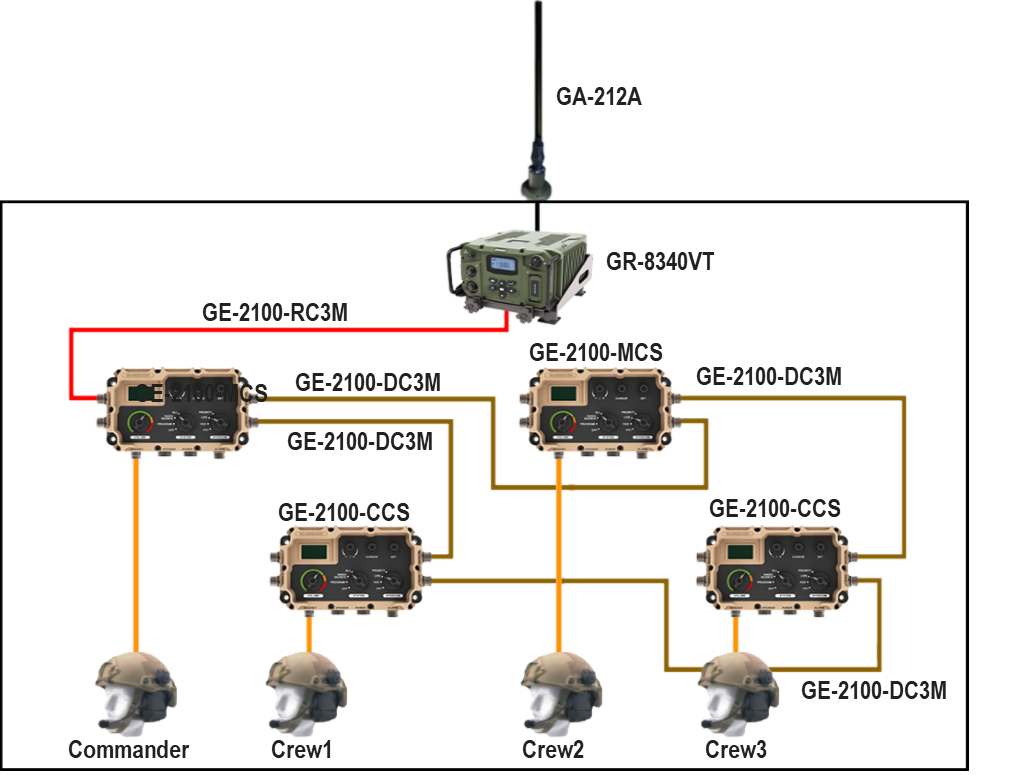

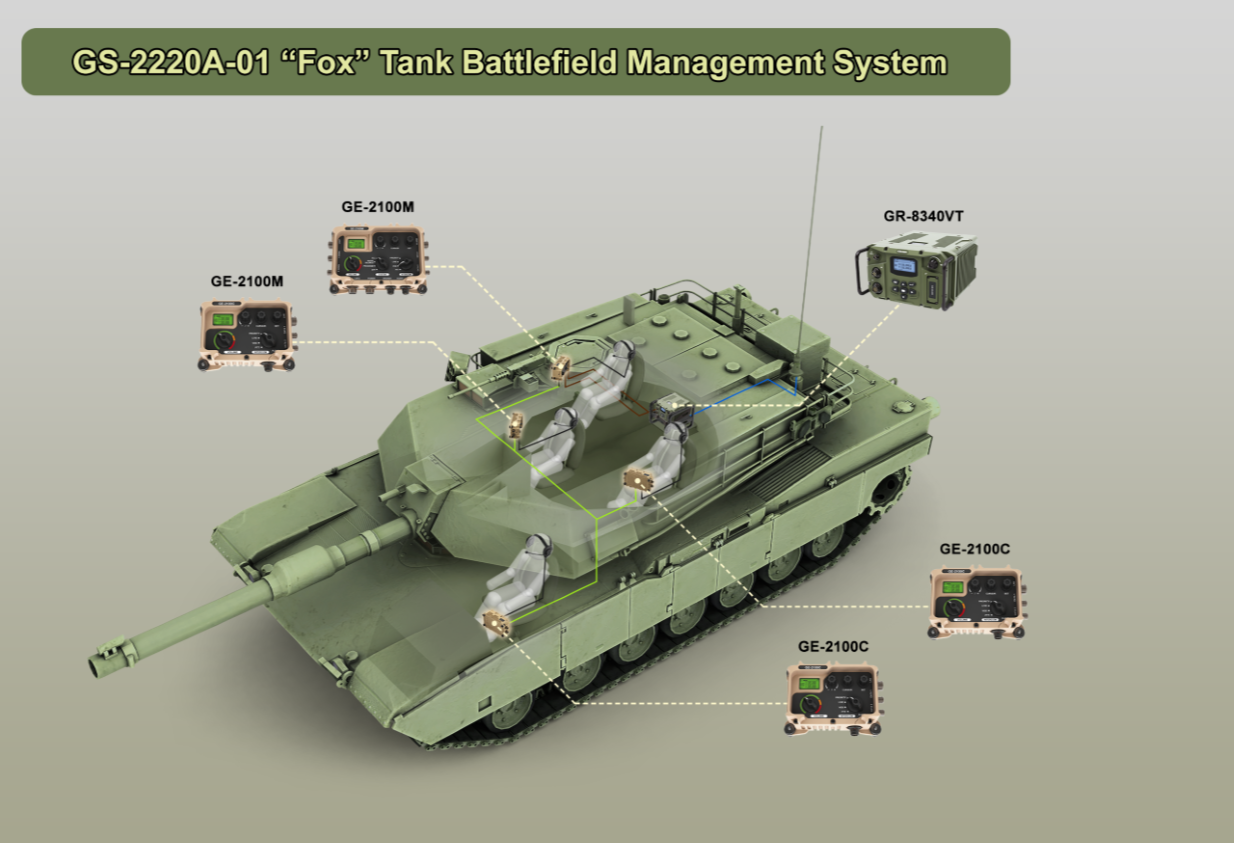

GS-2220A-01 “Fox” Tank Battlefield Management System
Tanks are equipped with GR-8340VT VHF radio and this radio is specifically designed for battle tanks to support secure and reliable voice communications in VHF band from 20MHz to 88MHz, even in bad conditions.
Ordering Information
No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
---|---|---|---|---|---|
1 | VHF Mobile Radio Set | GR-8340VT | Glocom | Set | 1 |
1-1 | VHF Mobile radio | GR-8340VT | Glocom | Pc | 1 |
1-2 | VHF Vehicle Antenna with cable | GA-212A | Glocom | Pc | 1 |
1-3 | Vehicle Headset | A8340VT-VH10 | Glocom | Pc | 1 |
1-4 | Power Cable | A8340VT-PC01 | Glocom | Pc | 1 |
1-5 | User manual | A8340VT-UM01 | Glocom | Copy | 1 |
2 | Tactical Network Intercom System | GE-2100 | Glocom | Set | 1 |
2-1 | Master Control Station | GE-2100-MCS | Glocom | Pc | 2 |
2-2 | Crew Control Station | GE-2100-CCS | Glocom | Pc | 2 |
2-3 | Data & Power Cable | GE-2100-DC3M | Glocom | Pc | 4 |
2-4 | Radio Voice & Data Cable | GE-2100-RC3M | Glocom | Pc | 1 |
2-5 | Power Cable | GE-2100-PC3M | Glocom | Pc | 1 |
2-6 | Tactical Headset | A8100-TH10 | Glocom | Pc | 4 |

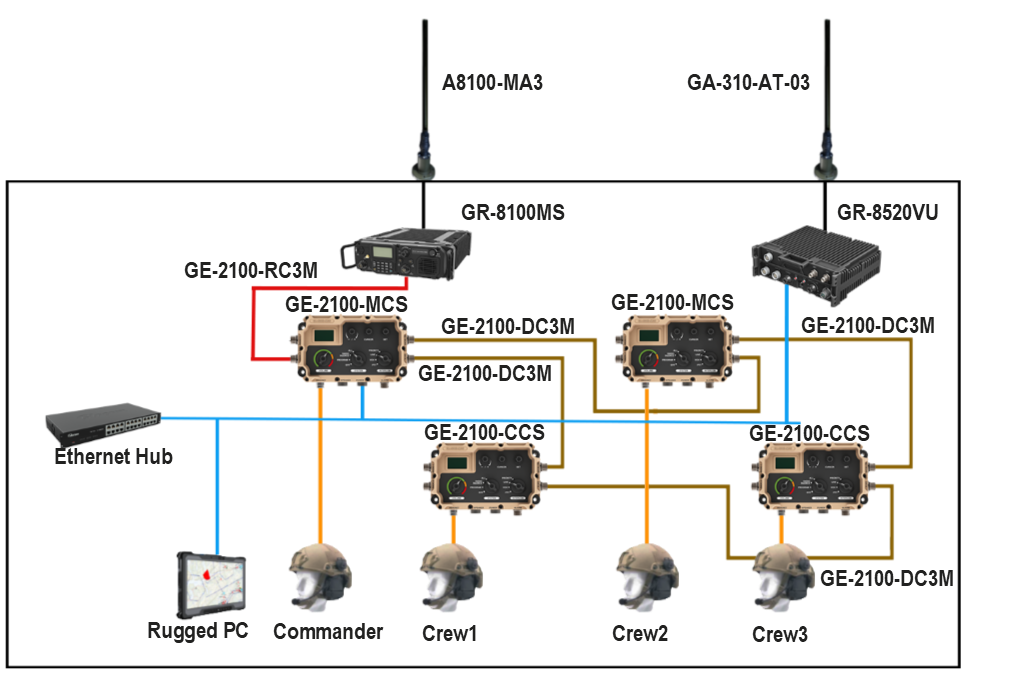

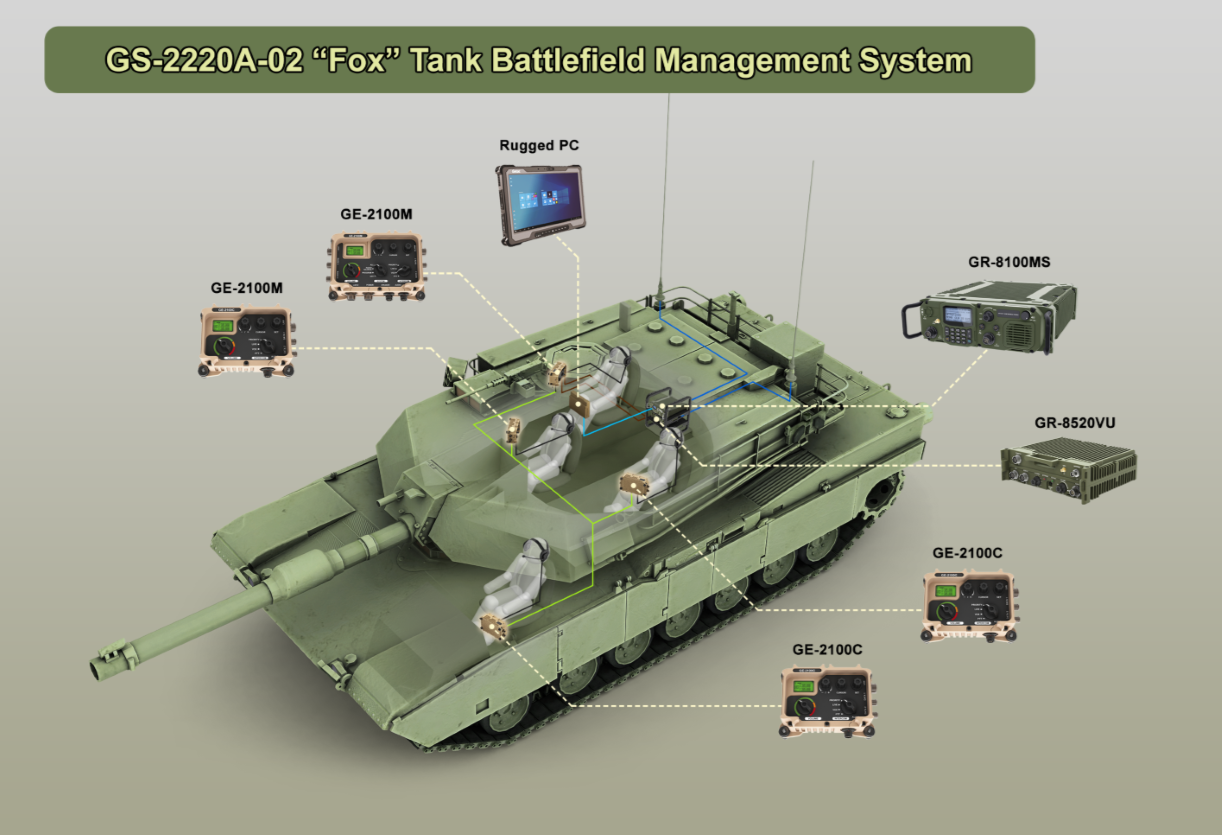

GS-2220A-02 “Fox” Tank Battlefield Management System
Tanks are equipped with GR-8100MS HF/VHF radio and GR-8520VU High Capacity Data Radio. GR-8520VU VHF/UHF High Capacity Data Radio provides UHF data communications including voice , video, etc. over a truly decentralized mobile ad-hoc network. And GR-8100MS radio is for VHF voice communication between tanks. Also it can be interoperable with GR-8340VT VHF radios.
Ordering Information
No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
---|---|---|---|---|---|
1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | Set | 1 |
1-1 | HF/VHF 100W Mobile Radio | GR-8100MS | Glocom | Pc | 1 |
1-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
1-3 | VHF Mobile Antenna with Cable (30~88 MHz, 3.7m) | A8100-MA3 | Glocom | Pc | 1 |
1-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
1-5 | Power Cable | A8100MS-PC01 | Glocom | Pc | 1 |
1-6 | User Manual | A8100MS-UM01 | Glocom | Copy | 1 |
2 | High Capacity Data Radio Set | GR-8520VU | Glocom | Set | 1 |
2-1 | High Capacity Data Radio (HCDR) | GR-8520VU | Glocom | Pc | 1 |
2-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
2-3 | Mobile antenna with cable (225-512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
2-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
2-5 | Ethernet Cable | A8520-EC3M | Glocom | Pc | 1 |
2-6 | Power Cable | A8520-PC2M | Glocom | Pc | 1 |
2-7 | User Manual | A8520-UM10 | Glocom | Copy | 1 |
3 | Tactical Network Intercom System | GE-2100 | Glocom | Set | 1 |
3-1 | Master Control Station | GE-2100-MCS | Glocom | Pc | 2 |
3-2 | Crew Control Station | GE-2100-CCS | Glocom | Pc | 2 |
3-3 | Data & Power Cable | GE-2100-DC3M | Glocom | Pc | 4 |
3-4 | Radio Voice & Data Cable | GE-2100-RC3M | Glocom | Pc | 1 |
3-5 | Power Cable | GE-2100-PC3M | Glocom | Pc | 1 |
3-6 | Ethernet Cable | GE-2100-EC3M | Glocom | Pc | 1 |
3-7 | Tactical Headset | A8100-TH10 | Glocom | Pc | 4 |
4 | Computer & Peripheral | ||||
4-1 | Rugged PC CPU: Core I 5, RAM: 8GB, Hard Disk: 256GB, Display: 15" | 3rd Party | Getac | Set | 1 |
4-2 | Ethernet Switching Hub | 8 ports | Brand | Set | 1 |
4-3 | Ethernet Cable | 3m | Brand | Pc | 1 |
5 | Software | Glocom | |||
5-1 | BMS Software for vehicle | GS-930VH | Glocom | Copy | 1 |
5-2 | Tactical Chat | GS-910 | Glocom | Copy | 1 |
6 | Vehicle Installation Kit | A8100-IK10 | Glocom | Set | 1 |

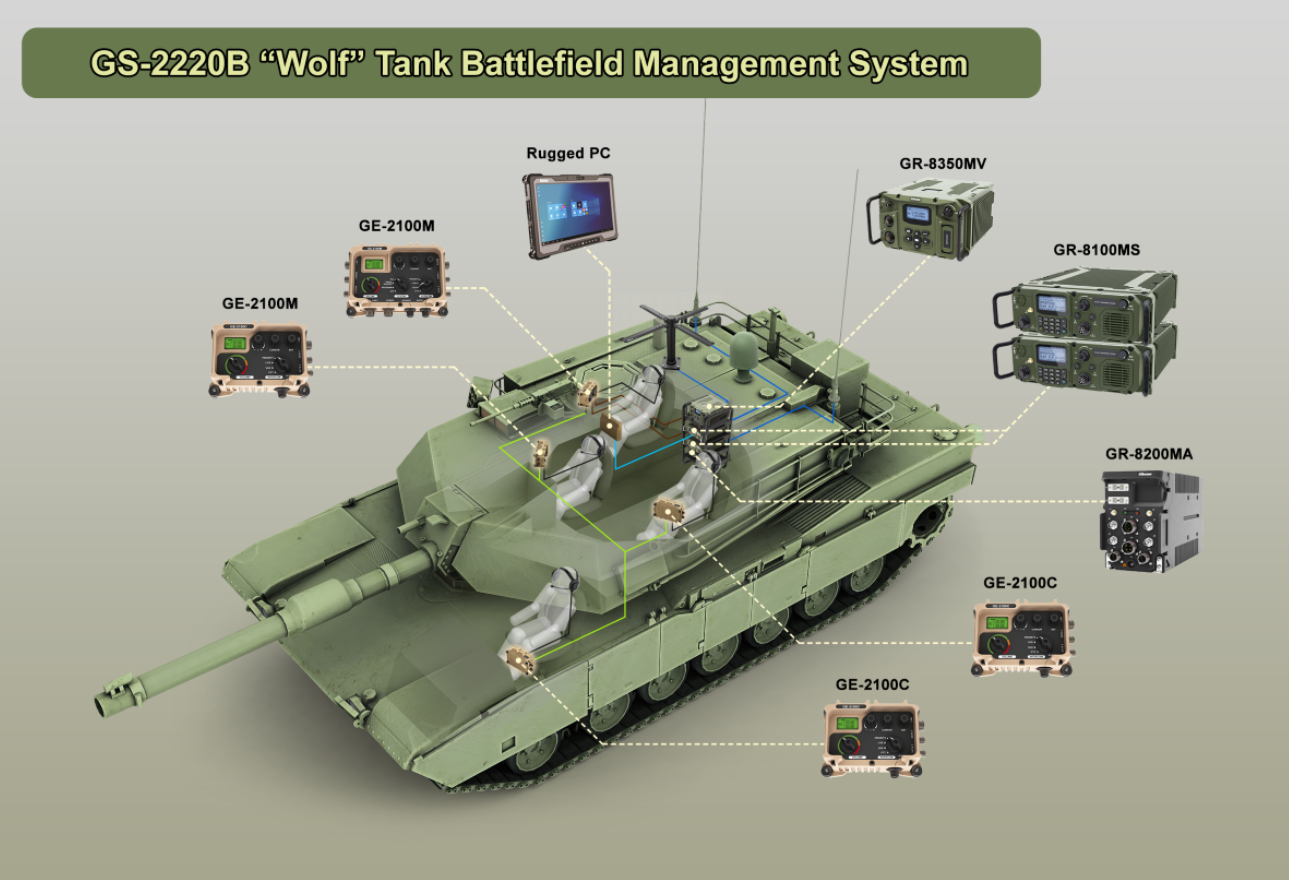

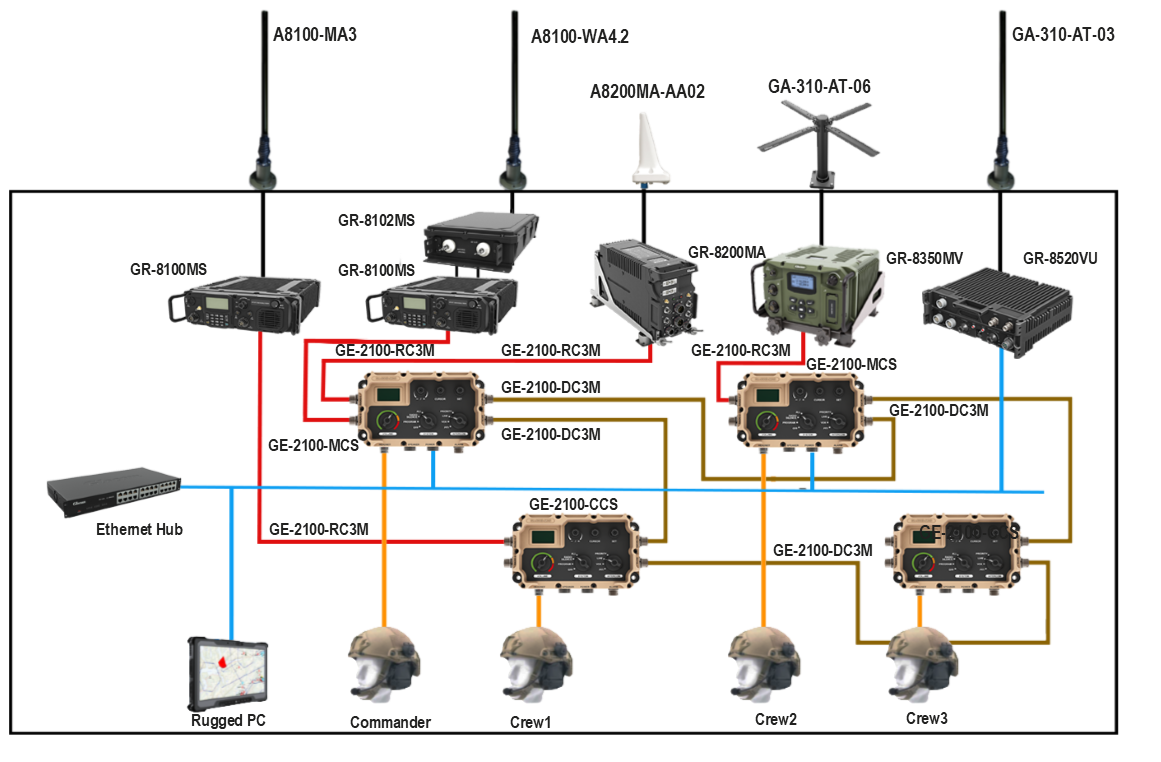

GS-2220B “Wolf” Tank Battlefield Management System
Tanks are equipped with two GR-8100MS HF/VHF radios, GR-8520VU High Capacity Data Radio, GR-8200MA Multiband Airborne radio and GR-8350MV VHF/UHF Multiband Vehicular radio. GR-8100MS radios are used for VHF and HF communication, specifically one for VHF voice communication between tanks and another one for HF communication with H.Q. post. GR-8520VU High Capacity Data Radio is for UHF data communications including voice , video, etc. over a truly decentralized mobile ad-hoc network. And GR-8200MA Multiband Airborne radio provides L-band communication between command tanks, H.Q. post and airplanes. GR-8350MV VHF/UHF Multiband Vehicular radio supports satellite communication between command tanks, H.Q. post and airplanes.
Ordering Information
No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
---|---|---|---|---|---|
1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | Set | 2 |
1-1 | HF/VHF 100W Mobile Radio | GR-8100MS | Glocom | Pc | 2 |
1-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 2 |
1-3 | HF Mobile Antenna with Cable | A8100-WA4.2 | Glocom | Pc | 1 |
1-4 | VHF Mobile Antenna with Cable (30~88 MHz, 3.7m) | A8100-MA3 | Glocom | Pc | 1 |
1-5 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 2 |
1-6 | HF 100W Automatic Tuning Unit | GR-8102MS | Glocom | Pc | 1 |
1-7 | Amplifier-ATU RF Cable | A8100MS-RC01 | Glocom | Pc | 1 |
1-8 | Amplifier-ATU Control Cable | A8100MS-CC01 | Glocom | Pc | 1 |
1-9 | Power Supply Unit | N/A | Glocom | Pc | 1 |
1-10 | Power Cable | A8100MS-PC01 | Glocom | Pc | 2 |
1-11 | User Manual | A8100MS-UM01 | Glocom | Copy | 1 |
2 | High Capacity Data Radio Set | GR-8520VU | Glocom | Set | 1 |
2-1 | High Capacity Data Radio (HCDR) | GR-8520VU | Glocom | Pc | 1 |
2-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
2-3 | Mobile antenna with cable (225-512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
2-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
2-5 | Ethernet Cable | A8520-EC3M | Glocom | Pc | 1 |
2-6 | Power Cable | A8520-PC2M | Glocom | Pc | 1 |
2-7 | User Manual | A8520-UM10 | Glocom | Copy | 1 |
3 | Multiband Airborne Radio Set | GR-8200MA | Glocom | Set | 1 |
3-1 | Multiband Airborne Radio | GR-8200MA | Glocom | Pc | 1 |
3-2 | Remote Control Unit | A8200MA-RC01 | Glocom | Pc | 1 |
3-3 | Keypad Display Unit | A8200MA-KD01 | Glocom | Pc | 1 |
3-4 | L-Band Antenna(960-1240MHz) | A8200MA-AA02 | Glocom | Pc | 1 |
3-5 | Airborne GPS Antenna | GA-53A | Glocom | Pc | 1 |
3-6 | Flying Helmet | A8200MA-FH01 | Glocom | Pc | 1 |
3-7 | Data Cable | A8200MA-DC01 | Glocom | Pc | 1 |
3-8 | Power Cable | A8200MPC01 | Glocom | Pc | 1 |
3-9 | User Manual | A8200MA-UM01 | Glocom | Copy | 1 |
4 | VHF/UHF Multiband Vehicular Radio Set | GR-8350MV | Glocom | Set | 1 |
4-1 | VHF/UHF Multiband Vehicular Radio | GR-8350MV | Glocom | Pc | 1 |
4-2 | X-Wing Satcom Antenna with Cable | GA-310-AT-06 | Glocom | Pc | 1 |
4-3 | Vehicle GPS Antenna | GA-52A | Glocom | Pc | 1 |
4-4 | Vehicle Headset | A8350MV-VH10 | Glocom | Pc | 1 |
4-5 | Data Cable | A8350MV-DC01 | Glocom | Pc | 1 |
4-6 | Power Cable | A8350MV-PC01 | Glocom | Pc | 1 |
4-7 | User Manual | A8350MV-UM01 | Glocom | Copy | 1 |
5 | Tactical Network Intercom System | GE-2100 | Glocom | Set | 1 |
5-1 | Master Control Station | GE-2100-MCS | Glocom | Pc | 2 |
5-2 | Crew Control Station | GE-2100-CCS | Glocom | Pc | 2 |
5-3 | Data & Power Cable | GE-2100-DC3M | Glocom | Pc | 4 |
5-4 | Radio Voice & Data Cable | GE-2100-RC3M | Glocom | Pc | 4 |
5-5 | Power Cable | GE-2100-PC3M | Glocom | Pc | 1 |
5-6 | Ethernet Cable | GE-2100-EC3M | Glocom | Pc | 2 |
5-7 | Tactical Headset | A8100-TH10 | Glocom | Pc | 4 |
6 | Computer & Peripheral | ||||
6-1 | Rugged PC CPU: Core I 5, RAM: 8GB, Hard Disk: 256GB, Display: 15" | 3rd Party | Getac | Set | 1 |
6-2 | Ethernet Switching Hub | 8 ports | Brand | Set | 1 |
6-3 | Ethernet Cable | 3m | Brand | Pc | 1 |
7 | Software | Glocom | |||
7-1 | BMS Software for vehicle | GS-930VH | Glocom | Copy | 1 |
7-2 | Tactical Chat | GS-910 | Glocom | Copy | 1 |
8 | Vehicle Installation Kit | A8100-IK10 | Glocom | Set | 1 |

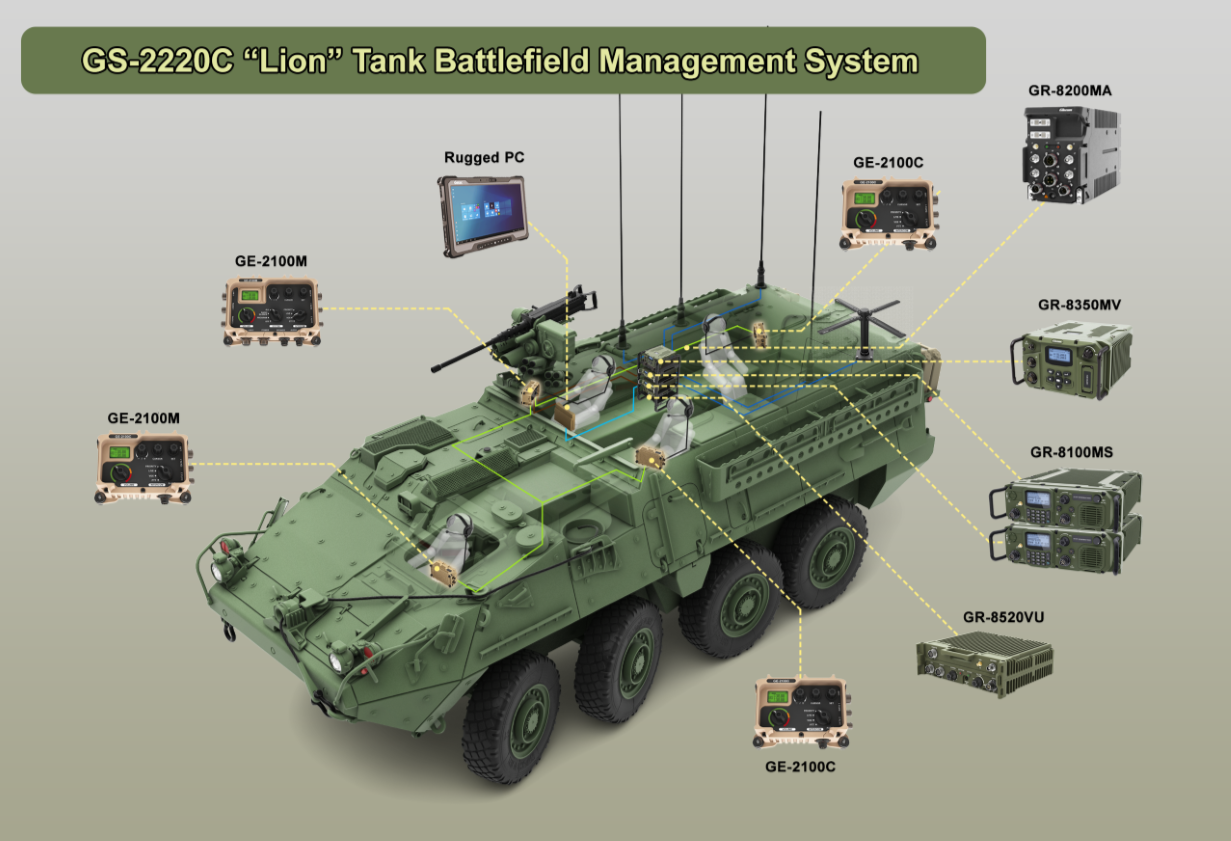

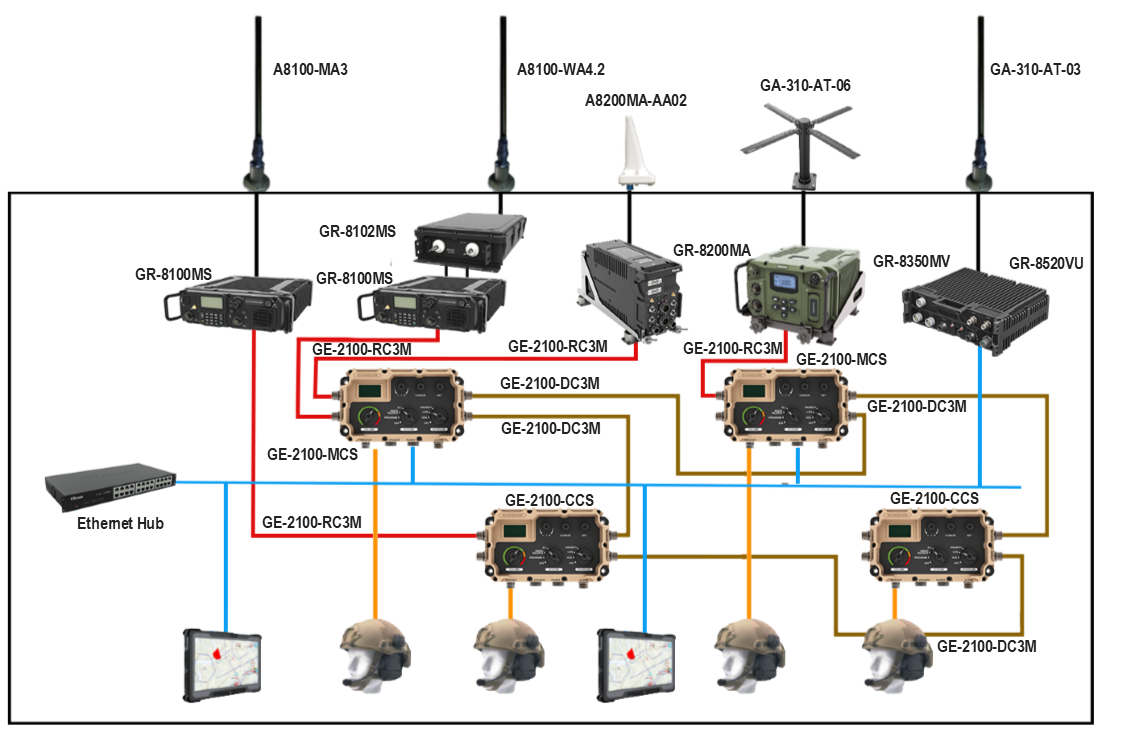

GS-2220C “Lion” Tank Battlefield Management System
Tanks are equipped with GR-8100MS HF/VHF radios, GR-8520VU High Capacity Data Radio, GR-8200MA Multiband Airborne radio and GR-8350MV VHF/UHF Multiband Vehicular radio. GR-8100MS radios are used for HF communication between command tanks. GR-8520VU High Capacity Data Radio is for UHF data communications including voice , video, etc. over a truly decentralized mobile ad-hoc network. And GR-8200MA Multiband Airborne radio provides L-band communication between command tanks, H.Q. post and airplanes. GR-8350MV VHF/UHF Multiband Vehicular radio supports satellite communication between command tanks, H.Q. post and airplanes.
Ordering Information
No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
---|---|---|---|---|---|
1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | Set | 2 |
1-1 | HF/VHF 100W Mobile Radio | GR-8100MS | Glocom | Pc | 2 |
1-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 2 |
1-3 | HF Mobile Antenna with Cable | A8100-WA4.2 | Glocom | Pc | 1 |
1-4 | VHF Mobile Antenna with Cable (30~88 MHz, 3.7m) | A8100-MA3 | Glocom | Pc | 1 |
1-5 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 2 |
1-6 | HF 100W Automatic Tuning Unit | GR-8102MS | Glocom | Pc | 1 |
1-7 | Amplifier-ATU RF Cable | A8100MS-RC01 | Glocom | Pc | 1 |
1-8 | Amplifier-ATU Control Cable | A8100MS-CC01 | Glocom | Pc | 1 |
1-9 | Power Supply Unit | N/A | Glocom | Pc | 1 |
1-10 | Power Cable | A8100MS-PC01 | Glocom | Pc | 2 |
1-11 | User Manual | A8100MS-UM01 | Glocom | Copy | 1 |
2 | Multiband Airborne Radio Set | GR-8200MA | Glocom | Set | 1 |
2-1 | Multiband Airborne Radio | GR-8200MA | Glocom | Pc | 1 |
2-2 | Remote Control Unit | A8200MA-RC01 | Glocom | Pc | 1 |
2-3 | Keypad Display Unit | A8200MA-KD01 | Glocom | Pc | 1 |
2-4 | L-Band Antenna(960-1240MHz) | A8200MA-AA02 | Glocom | Pc | 1 |
2-5 | Airborne GPS Antenna | GA-53A | Glocom | Pc | 1 |
2-6 | Flying Helmet | A8200MA-FH01 | Glocom | Pc | 1 |
2-7 | Data Cable | A8200MA-DC01 | Glocom | Pc | 1 |
2-8 | Power Cable | A8200MPC01 | Glocom | Pc | 1 |
2-9 | User Manual | A8200MA-UM01 | Glocom | Copy | 1 |
3 | VHF/UHF Multiband Vehicular Radio Set | GR-8350MV | Glocom | Set | 1 |
3-1 | VHF/UHF Multiband Vehicular Radio | GR-8350MV | Glocom | Pc | 1 |
3-2 | X-Wing Satcom Antenna with Cable(240-400MHz) | GA-310-AT-06 | Glocom | Pc | 1 |
3-3 | Vehicle GPS Antenna | GA-52A | Glocom | Pc | 1 |
3-4 | Vehicle Headset | A8350MV-VH10 | Glocom | Pc | 1 |
3-5 | Data Cable | A8350MV-DC01 | Glocom | Pc | 1 |
3-6 | Power Cable | A8350MV-PC01 | Glocom | Pc | 1 |
3-7 | User Manual | A8350MV-UM01 | Glocom | Copy | 1 |
4 | High Capacity Data Radio Set | GR-8520VU | Glocom | Set | 1 |
4-1 | High Capacity Data Radio (HCDR) | GR-8520VU | Glocom | Pc | 1 |
4-2 | Officer Handset | A8100-OH10 | Glocom | Pc | 1 |
4-3 | Mobile antenna with cable (225-512MHz, 1m) | GA-310-AT-03 | Glocom | Pc | 1 |
4-4 | GPS Mobile Antenna | GA-50A | Glocom | Pc | 1 |
4-5 | Ethernet Cable | A8520-EC3M | Glocom | Pc | 1 |
4-6 | Power Cable | A8520-PC2M | Glocom | Pc | 1 |
4-7 | User Manual | A8520-UM10 | Glocom | Copy | 1 |
5 | Tactical Network Intercom System | GE-2100 | Glocom | Set | 1 |
5-1 | Master Control Station | GE-2100-MCS | Glocom | Pc | 2 |
5-2 | Crew Control Station | GE-2100-CCS | Glocom | Pc | 2 |
5-3 | Data & Power Cable | GE-2100-DC3M | Glocom | Pc | 4 |
5-4 | Radio Voice & Data Cable | GE-2100-RC3M | Glocom | Pc | 3 |
5-5 | Power Cable | GE-2100-PC3M | Glocom | Pc | 1 |
5-6 | Ethernet Cable | GE-2100-EC3M | Glocom | Pc | 2 |
5-7 | Tactical Headset | A8100-TH10 | Glocom | Pc | 4 |
6 | Computer & Peripheral | ||||
6-1 | Rugged PC CPU: Core I 5, RAM: 8GB, Hard Disk: 256GB, Display: 15" | 3rd Party | Getac | Set | More than 1 on demand |
6-2 | Ethernet Switching Hub | 8 ports | Brand | Set | 1 |
6-3 | Ethernet Cable | 3m | Brand | Pc | More than 1 on demand |
7 | Software | Glocom | |||
7-1 | Integrated Command & Control System Software | GS-930HQ | Glocom | Copy | 1 |
7-2 | BMS Software for vehicle | GS-930VH | Glocom | Copy | 1 |
7-3 | Tactical Chat | GS-910 | Glocom | Copy | 1 |
8 | Vehicle Installation Kit | A8100-IK10 | Glocom | Set | 1 |
