GS-2600-03 Air-Defense Datalink Configuration

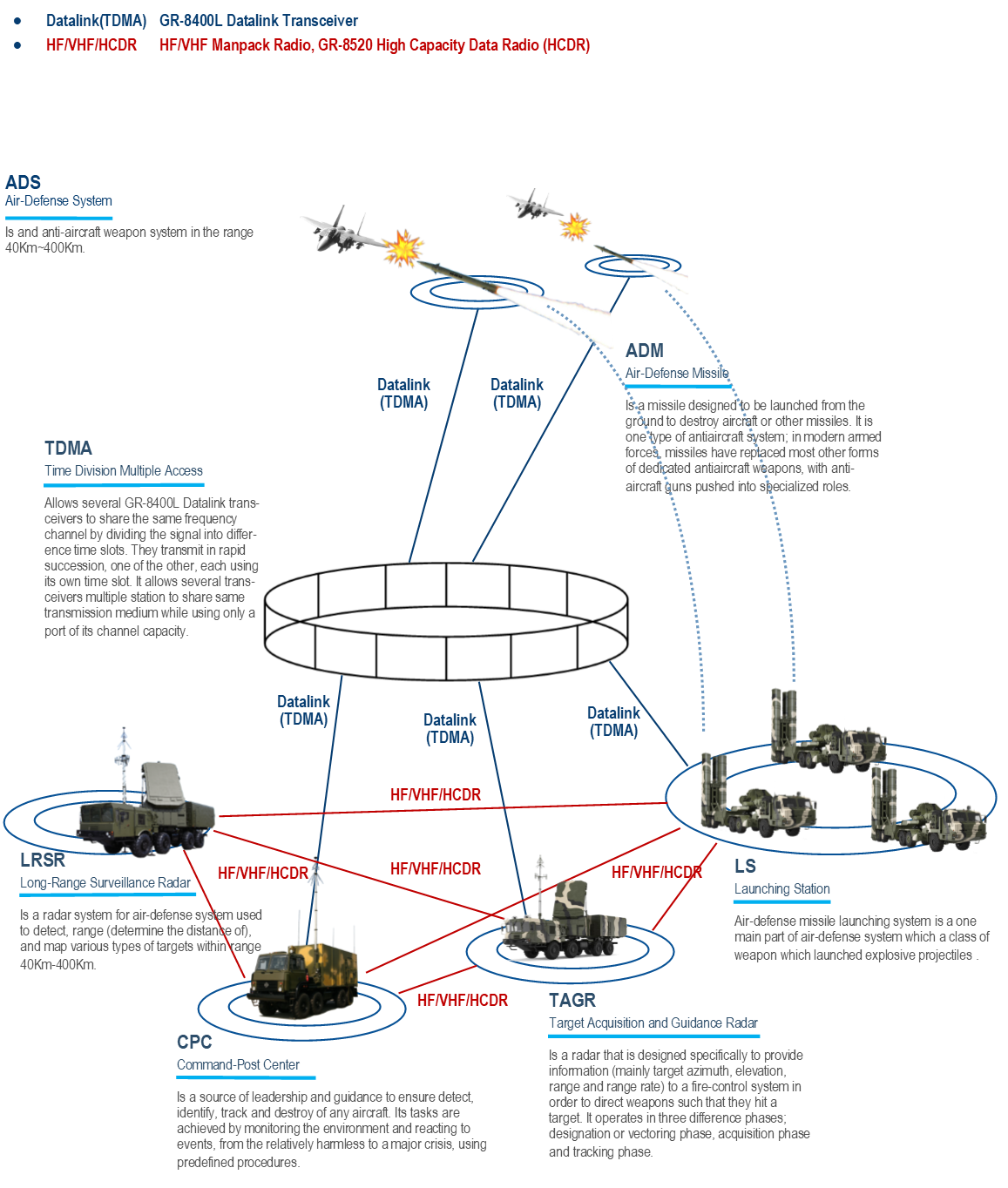

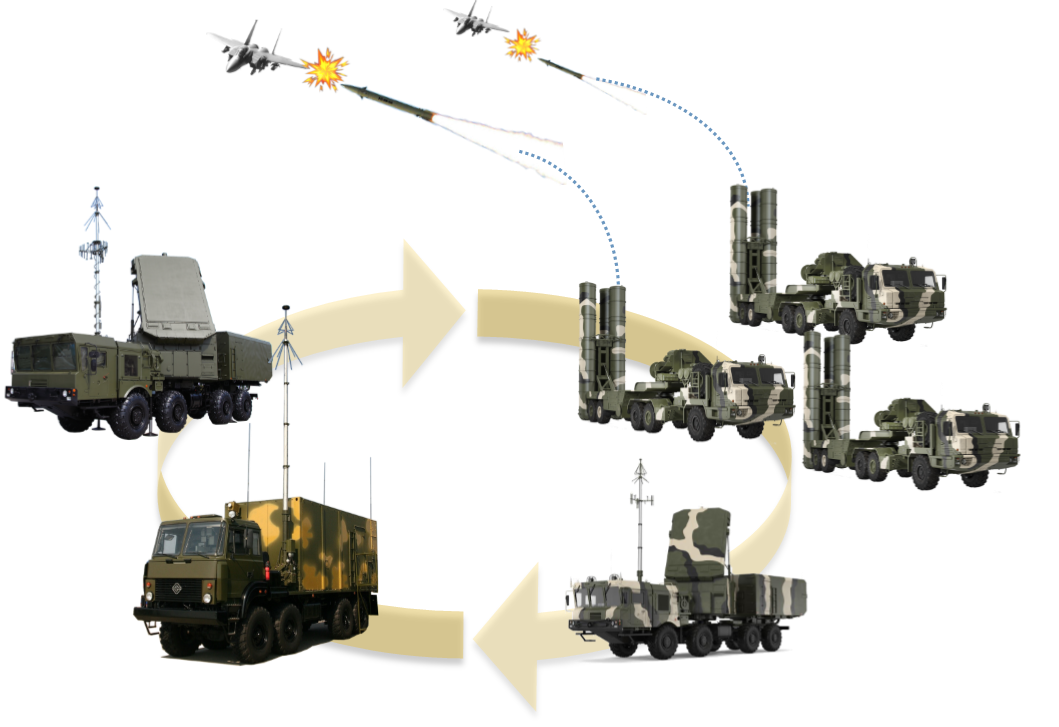

The GS-2600-03 Air-Defense Datalink System is ideal for Air-Defense Command, Control & Communication system built providing real-time data exchange between radars, command post center, launching station and various missiles. It supports ■optimal deployment ■distribution of integrated air pictures ■battle management ■ priorities and responsibilities ■reduce time delays ■minimizing voice coordination ■interoperability with other AD and ATC/CRC systems ■utilization of legacy weapon system coverage and effectiveness ■avoid fratricide ■ avoid saturation.

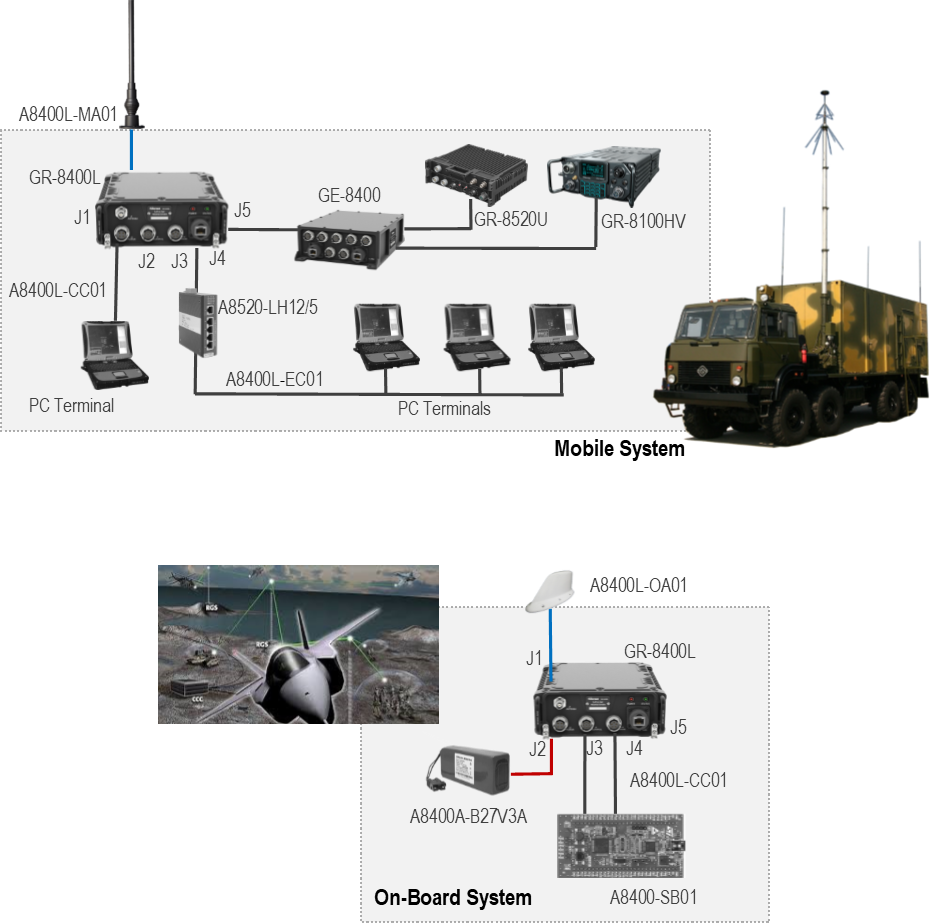

The standard set includes:-

• Datalink Transceiver Set (Ground)10setsGR-8400L-GS
• Datalink Transceiver Set (On-board)32setsGR-8400L-OS
• System Network Control Set42setsGE-8400
• HF/VHF Manpack Radio10setsGR-8100HV
• High Capacity Data Radio10setsGR-8520

OPTION

• Ethernet HubA8520-LH12/5
• PC TerminalPanasonic/3rd party
• Signal Condition BoardA8400-SB01

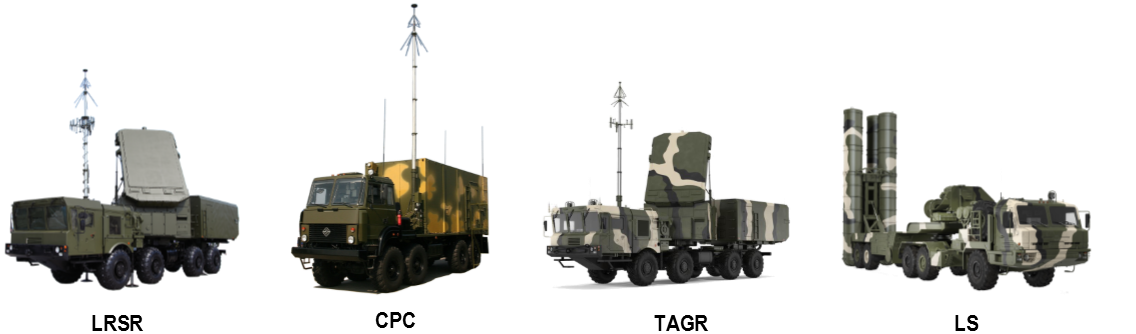

GS-2600-03 Air-Defense Datalink System
