GS-3100 Headquarters C4I System
[NEW CHALLENGE]
The nature of modern warfare requires a digitalized battlespace that fully supports the entire spectrum of military operations. However, the vast amounts of data flowing through military networks have given rise to a new challenge – the need to channel the data properly for effective decision making at all levels of command & control.
As a world leader in the implementation of the digital army doctrine, our renowned C4I solutions connect all forces on land from high-echelon HQ to the individual platform creating a force multiplier by maximizing combat resource coordination.
[CUSTOMER NEEDS]
Information superiority over tactical networks allows commanders to build and share fused operational pictures.
System Overview
The GS-3100 is a field-proven C4ISR solution for tactical headquarters (Battle Groups and Task Forces) and strategic headquarters (from Division level and up to the Joint Command).
The GS-3100 allows headquarters to generate superior tempo relative to their adversary and shortens the decision-action cycle for the delivery of kinetic and non-kinetic effects in the battlespace.
The GS-3100 is composed of tactical communications system and command and control (C2) software system. Glocom’s battle-proven tactical communications system ensure a reliable flow of information throughout all echelons and in all combat scenario. The complete range of products, including the recent Glocom radio family of advanced Software-Defined Radio, meets the requirements of the modern battlefield – from the individual soldier, through various types of combat platforms and up to large systems required by HQ.
Glocom’s C2 software GS-930 suite provide military commanders at all echelon levels with high-performing C2 solution that offers clarity, simplicity, and high performance that addresses real world C2 challenges. GS-930 is an integrated command and control C2 software suite with features such as ■ digital map display, ■ situational awareness, ■ Blue Force Tracking, ■ instant messaging, ■ collaborative planning and record & replay. GS-930 suite connects the headquarters to the tactical edge with its four products: ■ GS-930HQ, ■ GS-930FL, ■ GS-930EG. GS-930 is designed to provide a Joint Common Operational Picture (JCOP) within all the operation domains.
[CUSTOMER BENEFITS]
SHARED SITUATIONAL AWARENESS
Make better informed decisions through an updated picture of own forces, staff assessments, and shared enemy reports, including type, size, and location.
BLUE FORCE TRACKING
Displaying up-to-date Friendly Force Tracks reduces the strain on voice communication and increases situational awareness on the battlefield.
COLLABORATIVE PLANNING
High flexibility during the planning cycle through collaborative construction of both textual and graphical plans and orders. Distribute directly to deployed forces.
TACTICAL CHAT & STRUCTURED MESSAGING
Attach documents such as plans, orders, and pictures in chat messages to individuals or groups across all echelons.
JOINT AND COALITION INTEROPERABILITY
Increase the operational tempo with top-to-bottom interoperability across all echelons of command as part of the Glocom C4I suite.
INTUITIVE USER EXPERIENCE
A simple and intuitive user interface reduces both the cognitive load and training burden for the user.
Mission success at all levels of command & control

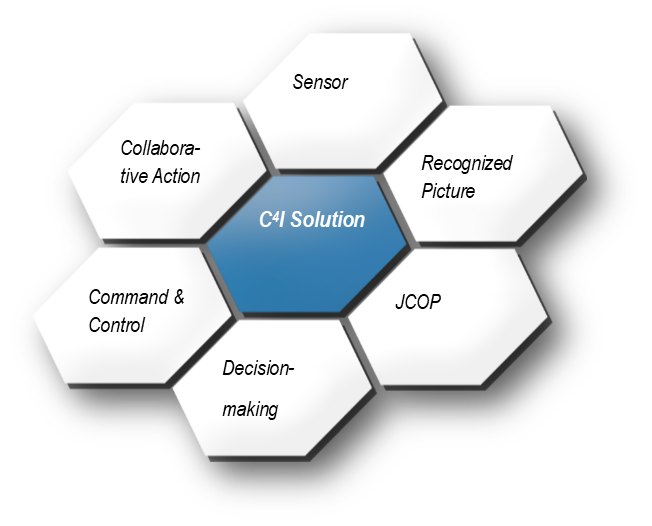

Our C4I systems provide actionable, real-time information and enables situational awareness, in-depth collaborative mission planning and management, and a constantly-updated common operational picture (COP). The systems offer solutions that deal with modern-day challenges (e.g., terrorism, urban warfare, guerilla warfare, and complex terrain). The solutions implement advanced combat concepts that increase operational effectiveness and connectivity – combining logistics, mission planning and fire support in one single system.
Tactical Communications
Glocom’s battle-proven communications systems ensure a reliable flow of information throughout all echelons and in all combat scenario. The complete range of products, including the recent family of advanced Software Defined Radio, meets the requirements of the modern battlefield – from the individual soldier, through various types of combat platforms and up to large systems required by HQ. Based on decades of communications experience, including the legacy Communication radio product line, Glocom has acquired extensive operationally-proven expertise in voice, data and video technologies. The company’s know-how in HF/VHF/UHF/L bands radio and satellite radio has resulted in the implementation of integrated military communications infrastructures for C4I and triple-play (voice, data and video) applications supporting advanced countermeasure techniques (e.g., frequency hopping and direct sequencing). These systems provide reliable communication in all terrains including harsh battle environments, by using cutting-edge modem techniques, all optimized to every communication solution.
[KEY FEATURES]
■ Tactical communications over different radio systems (VHF, UHF, HF, Satcom)
■ Advanced software defined radio systems
■ Secure communications for voice and data (COMSEC, TRANSEC)
■ Easy deployable communications system
Fully Scalable Command & Control Software
GS-930 is an integrated command and control software suit with features such as digital map display, situational awareness, Blue Force Tracking, instant messaging and collaborative planning. GS-930 suite connects the headquarters to the tactical edge with its four products: GS-930HQ, GS-930FL, GS-930EG. They are fully integrated through tactical communications, which is the communication core of the GS-930 suite. GS-930 tactical communications provide networked command and control and shared situational awareness, from the higher headquarters to the commander at the tactical edge. It supports IP and non-IP Glocom radios and can handle different types of radios, even within the same vehicle. GS-930 is designed to provide a joint Common Operational Picture (COP) within all the operation domains.
[KEY FEATURES]

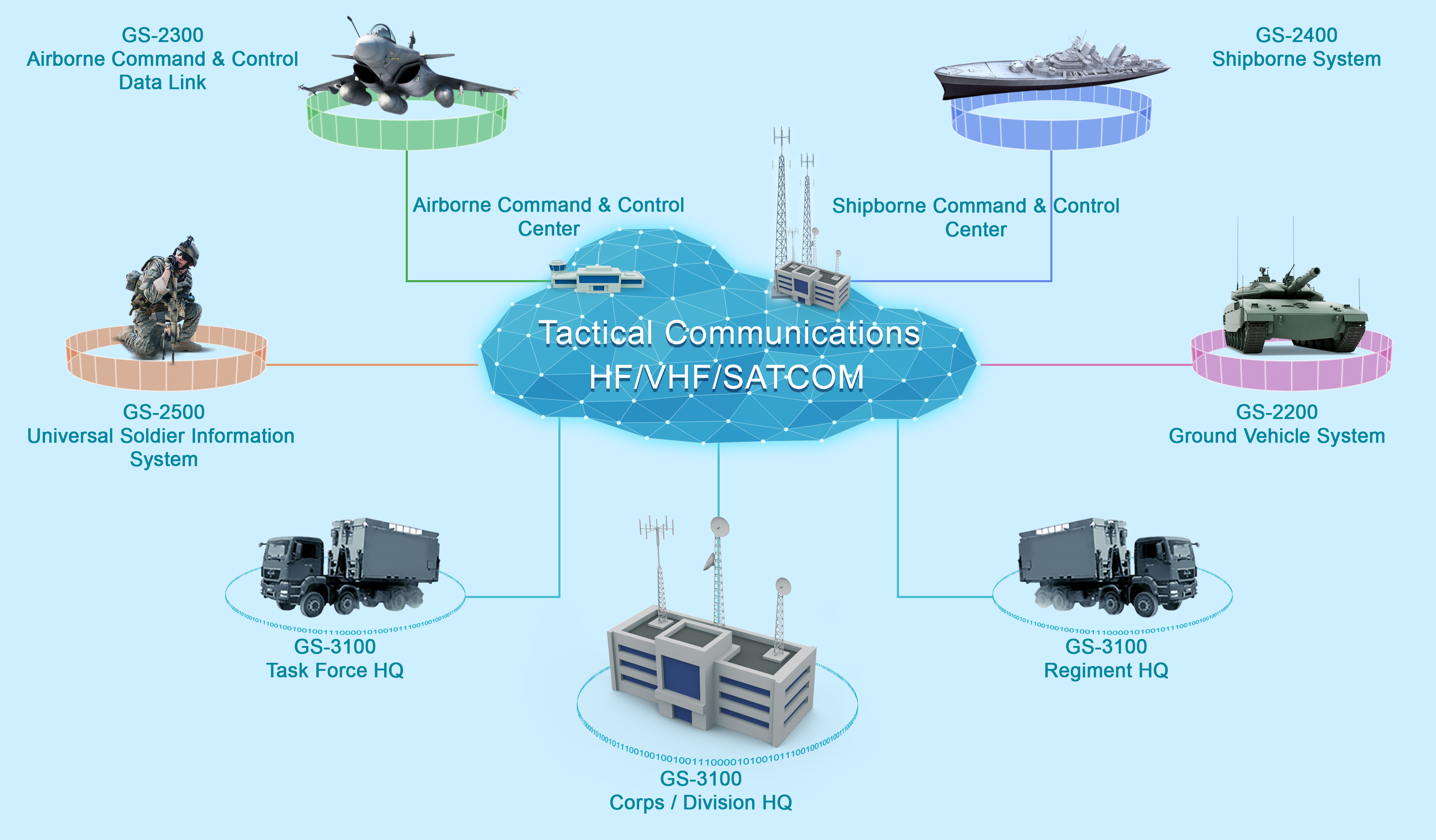

The GS-3100 makes a large scale system together with other solutions such as GS-2200, GS-2300, GS-2400 and GS-2500 so on, has resulted in the implementation of integrated military communications infrastructures for C4I offering more powerful solution for ground forces. Real-time situation of large-scale operations on land, at sea or in the air is seen in easy-to-grasp visual form. It effectively aggregates different kinds of information from multiple domains, and gives commanders and their staff the overviews essential for making critical decision in complex, collaborative operating scenarios.
GS-2300-01 Ordering Information
GS-3100-01 “Elephant” class (Joint / Corps / Division)
No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
---|---|---|---|---|---|
1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | SET | 4 |
2 | VHF/UHF SATCOM Manpack Radio Set | GR-310 | Glocom | SET | 4 |
3 | Secure Personal Radio (SPR) Set | GR-611B | Glocom | SET | 21 |
4 | Computer & Peripherals | ||||
4-1 | Rugged PC (Windows, 1366*768) | Panasonic | Panasonic | pc | 4 |
4-2 | Tactical Terminal (Android) | Ulefone | Ulefone | pc | 11 |
4-3 | Ethernet Hub (8 port) | Brand | 3rd Party | pc | 1 |
4-4 | RS-232 to Ethernet Converter | NP301 | 3rd Party | pc | 4 |
5 | Software | ||||
5-1 | Command & Control Software (Headquarters) | GS-930HQ | Glocom | copy | 1 |
5-2 | Command & Control Software (Frontline) | GS-930FL | Glocom | copy | 1 |
5-3 | Command & Control Software (Soldier) | GS-930EG | Glocom | copy | 1 |
GS-3100-02 “Wolf” class (Regiment / Task Force)
No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
---|---|---|---|---|---|
1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | SET | 2 |
2 | VHF/UHF SATCOM Manpack Radio Set | GR-310 | Glocom | SET | 2 |
3 | Secure Personal Radio (SPR) Set | GR-611B | Glocom | SET | 6 |
4 | Computer & Peripherals | ||||
4-1 | Rugged PC (Windows, 1366*768) | Panasonic | Panasonic | pc | 2 |
4-2 | Tactical Terminal (Android) | Ulefone | Ulefone | pc | 6 |
4-3 | Ethernet Hub (8 port) | Brand | 3rd Party | pc | 1 |
5 | Software | ||||
5-1 | Command & Control Software (Headquarters) | GS-930HQ | Glocom | copy | 1 |
5-2 | Command & Control Software (Frontline) | GS-930FL | Glocom | copy | 1 |
5-3 | Command & Control Software (Soldier) | GS-930EG | Glocom | copy | 1 |
Radio Set Parts
No | DESCRIPTION | MODEL | BRAND | UNIT | QTY |
---|---|---|---|---|---|
1 | HF/VHF 100W Mobile Radio Set | GR-8100MS | Glocom | SET | 1 |
1-1 | HF/VHF 100W Mobile Radio | GR-8100MS | Glocom | pc | 1 |
1-2 | Officer Handset | A8100-OH10 | Glocom | pc | 1 |
1-3 | GPS Mobile Antenna | GA-50A | Glocom | pc | 1 |
1-4 | HF 20mx2 Dipole Antenna | A8100-DA20 | Glocom | pc | 1 |
1-5 | HF Mobile Antenna with Cable | A8100-WA4.2 | Glocom | pc | 1 |
1-6 | VHF Mobile Antenna with Cable | A8100-MA3 | Glocom | pc | 1 |
1-7 | HF 100W Automatic Tuning Unit | GR-8102MS | Glocom | pc | 1 |
1-8 | Amplifier-ATU RF Cable | A8100MS-RC01 | Glocom | pc | 1 |
1-9 | Amplifier-ATU Control Cable | A8100MS-CC01 | Glocom | pc | 1 |
1-10 | Mobile Installation Kit | A8100-IK10 | Glocom | pc | 1 |
1-11 | Field Reference Guide | A8100MS-UM01 | Glocom | pc | 1 |
1-12 | Power Cable | A8100MS-PC01 | Glocom | pc | 1 |
1-13 | Asynchronous Data Cable (option) | A8100-DC0 | Glocom | pc | 1 |
1-14 | Ethernet Cable (option) | A8100-EC24 | Glocom | pc | 1 |
1-15 | Setup/Control Application (Windows) | A8100-WIN10 | Glocom | copy | 1 |
2 | VHF/UHF SATCOM Manpack Radio Set | GR-310 | Glocom | SET | 1 |
2-1 | VHF/UHF SATCOM manpack radio | GR-310 | Glocom | pc | 1 |
2-2 | Officer handset | GA-10A | Glocom | pc | 1 |
2-3 | Whip antenna | GA-310-AT-02 | Glocom | pc | 1 |
2-4 | Li-Ion battery pack | GA-31D | Glocom | pc | 1 |
2-5 | Battery charger | GA-32D | Glocom | pc | 1 |
2-6 | User manual | GA-131A | Glocom | pc | 1 |
2-7 | SATCOM Antenna (option) | A310-AT04B | Glocom | pc | 1 |
2-8 | GPS Mobile Antenna (option) | GA-50A | Glocom | pc | 1 |
2-9 | Clone cable (option) | GA-21A | Glocom | pc | 1 |
2-10 | Setup/Control Application (Windows) | GC-310 | Glocom | copy | 1 |
3 | Secure Personal Radio (SPR) Set | GR-611B | Glocom | SET | 1 |
3-1 | Secure Personal Radio | GR-611B | Glocom | pc | 1 |
3-2 | Whip Antenna | A611B-WA01 | Glocom | pc | 1 |
3-3 | GPS Handheld Antenna | A611B-GA01 | Glocom | pc | 1 |
3-4 | Battery Pack | A611B-BP01 | Glocom | pc | 1 |
3-5 | Battery Charger | A611B-BC1B | Glocom | pc | 1 |
3-6 | Carry Pouch | A611B-CP01 | Glocom | pc | 1 |
3-7 | User Manual | A611B-UM10 | Glocom | pc | 1 |
3-8 | Tactical Headset | A611B-TH01 | Glocom | pc | 1 |
3-9 | Light Headset | A611B-LH01 | Glocom | pc | 1 |
3-10 | Asynchronous Data Cable | A611B-DC01 | Glocom | pc | 1 |
3-11 | Setup/Control Application (Android) | A611B-AND10 | Glocom | copy | 1 |

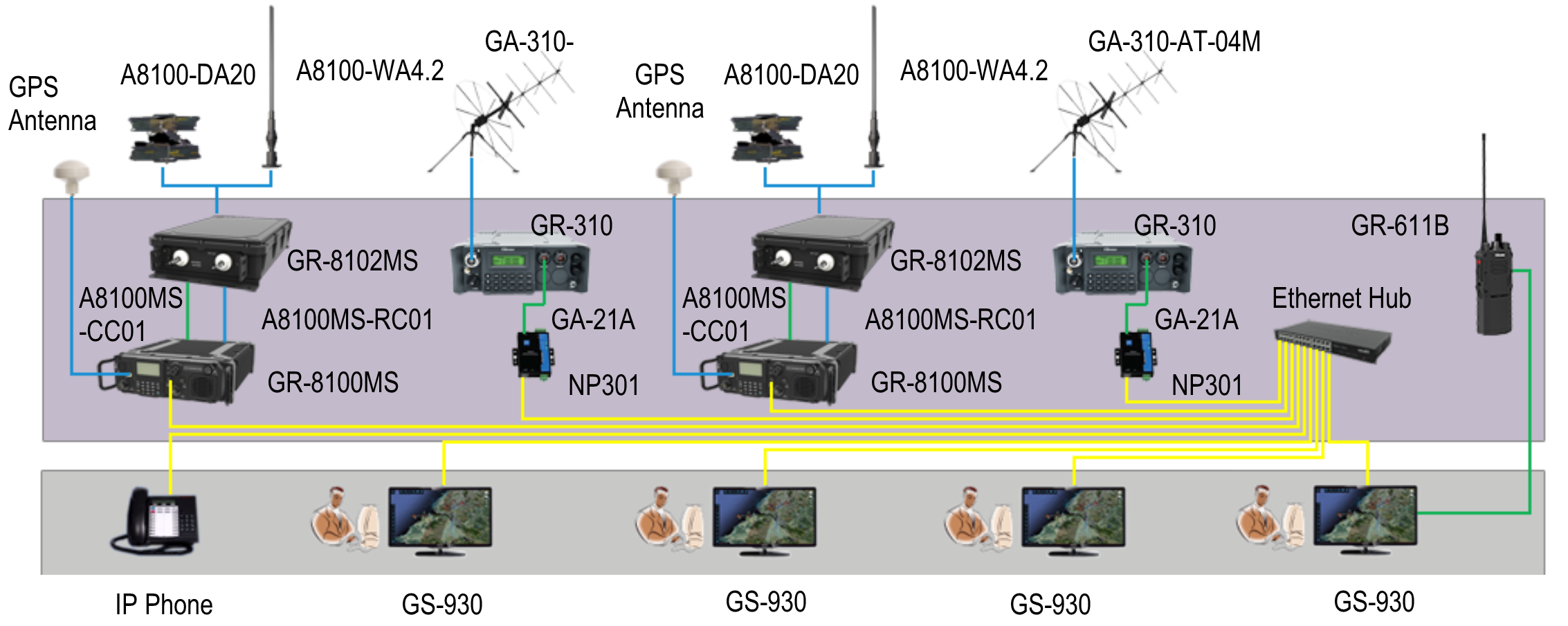

GS-3100 Configuration
